RM38N0EC _58 Vehicle Interior _111832 THEFT DETERRENT / KEYLESS ENTRY _0586340 DIGITAL KEY RECEIVER(for Outside Luggage Compartment) A

THEFT DETERRENT / KEYLESS ENTRY DIGITAL KEY RECEIVER(for Outside Luggage Compartment) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ble luggage digital key receiver assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
BLE luggage digital key receiver assembly	Code registration	· Wireless Door Lock Control System · Smart Entry and Start System (for Entry function, HV Model) · Smart Entry and Start System (for Start function, HV Model) · Hybrid control system cannot be started · Digital Key System	See Service Bulletin for the registration method

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1.REMOVE REAR BUMPER ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER>REMOVAL202406,999999,_59,_111849,_0500096,RM100000002MPZ3,

Hide Display 89997 2.REMOVE ELECTRICAL KEY ANTENNA

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Outside Luggage Compartment)>REMOVAL202406,999999,_58,_111832,_0501282,RM100000002MT4T_01_0017,

Hide Display 890F0 3.REMOVE BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY

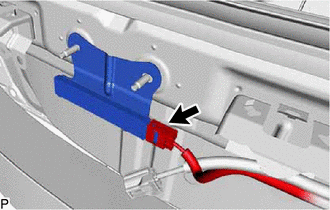

Disconnect the connector and remove the ble luggage digital key receiver assembly.

NOTICE:: Be careful when removing the ble luggage digital key receiver assembly. If the ble luggage digital key receiver assembly is dropped, replace it with a new one.
