RM38N0EC _58 Vehicle Interior _111838 SUPPLEMENTAL RESTRAINT SYSTEMS _0502524 CURTAIN SHIELD AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS CURTAIN SHIELD AIRBAG ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during curtain shield airbag assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the RH side and LH side.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

Hide Display 2.REMOVE ROOF HEADLINING ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202406,999999,_58,_111843,_0501311,RM100000002MT6G,

Hide Display 62180A 3.REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

CAUTION:

0.667,0.5 0.823,0.698 0.156,0.198 10 false .

Deployment Side

When storing the curtain shield airbag assembly, keep the airbag deployment side facing upward.

NOTICE:: When removing the curtain shield airbag assembly, have assistants hold it to prevent it from bending.

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202111,999999,_58,_111838,_0499714,RM100000001YZEU,

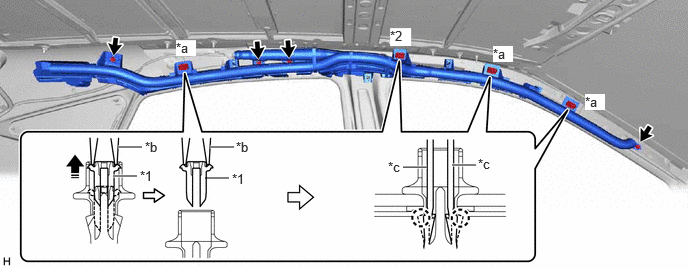

Using a needle-nose pliers No. 2 or equivalent, remove the 4 pins from the 3 clips (A) and roof side inner garnish clip.

Using 2 thin screwdrivers, disengage the 2 claws of the 3 clips (A) and roof side inner garnish clip, and separate the 3 clips (A) and roof side inner garnish clip from the vehicle body as shown in the illustration.

HINT:: Separate the 3 clips (A), roof side inner garnish clip and curtain shield airbag assembly from the vehicle body as a unit.

Remove the 4 bolts.

1.177,1.833 1.427,1.833 true 2.135,1.854 2.385,1.854 false 1.229,1.531 1.479,1.531 true 2.188,1.531 2.438,1.531 true 4.198,1.74 4.448,1.74 true 4.708,1.719 4.958,1.719 true 1.458,1.75 1.667,1.927 0.208,0.177 10 false *1 2.417,1.781 2.625,1.958 0.208,0.177 10 false *1 6.094,0.979 6.302,1.146 0.208,0.167 10 true *a 5.135,0.479 5.344,0.646 0.208,0.167 10 true *a 1.833,0.417 2.042,0.583 0.208,0.167 10 true *a 4.063,0.292 4.281,0.479 0.219,0.188 10 true *2 1.51,1.448 1.719,1.625 0.208,0.177 10 false *b 2.458,1.448 2.667,1.625 0.208,0.177 10 false *b 4.042,1.656 4.25,1.833 0.208,0.177 10 false *c 4.979,1.625 5.188,1.802 0.208,0.177 10 false *c

*1	Pin	*2	Roof Side Inner Garnish Clip
*a	Clip (A)	*b	Needle Nose Pliers No. 2
*c	Thin Screwdriver	-	-
	Remove in this Direction	-	-

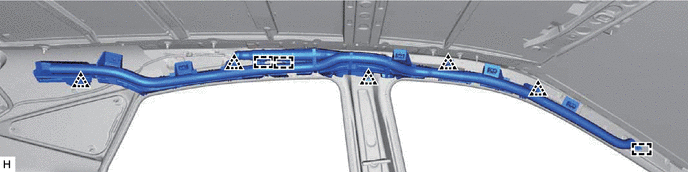

While holding the curtain shield airbag assembly, disengage the 5 clips and 3 hooks to remove the curtain shield airbag assembly.

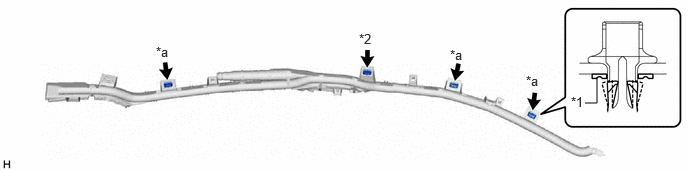

Remove the 3 clips (A), roof side inner garnish clip and the spacer from the curtain shield airbag assembly.

6.094,1.073 6.219,1.073 6.219,1.073 6.219,0.802 false 5.948,0.979 6.26,1.177 0.313,0.198 10 false *1 3.74,0.323 4.052,0.521 0.313,0.198 10 false *2 1.625,0.458 1.938,0.656 0.313,0.198 10 false *a 4.688,0.49 5,0.688 0.313,0.198 10 false *a 5.479,0.76 5.792,0.958 0.313,0.198 10 false *a

*1	Spacer	*2	Roof Side Inner Garnish Clip
*a	Clip (A)	-	-
