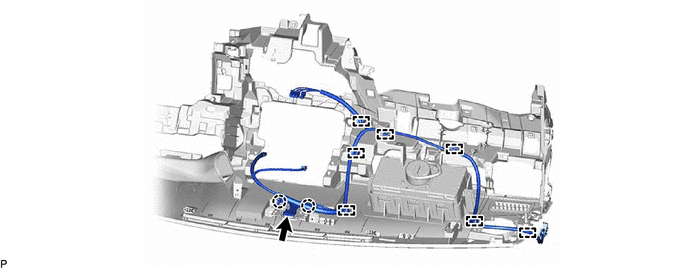

AUDIO / VIDEO  RADIO ANTENNA CORD(for Instrument Panel)  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during antenna cord sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

for HV Model:

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

·

for Gasoline Model:

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
