The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during lumbar support adjuster assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Disconnect cable from negative auxiliary battery terminal | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Position control ECU assembly* ·
Reclining motor (Front seatback frame sub-assembly LH)* ·
Slide motor (Front seat adjuster assembly LH)* ·
Power seat lifter motor assembly LH (Front seat adjuster assembly LH)* ·
Power seat tilt motor assembly LH (Front seat adjuster assembly LH)* |
Initialize position control ECU | Front Power Seat Control System (w/ Memory) | ( 202111,999999,_58,_111839,_0505694,RM10000000206XI,)
|
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Disconnect cable from negative auxiliary battery terminal | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Position control ECU assembly* ·
Reclining motor (Front seatback frame sub-assembly LH)* ·
Slide motor (Front seat adjuster assembly LH)* ·
Power seat lifter motor assembly LH (Front seat adjuster assembly LH)* ·
Power seat tilt motor assembly LH (Front seat adjuster assembly LH)* |
Initialize position control ECU | Front Power Seat Control System (w/ Memory) | ( 202111,999999,_58,_111839,_0505694,RM10000000206XI,)
|
Wear protective gloves. Sharp areas on the parts may injure your hands.
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System |
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System | ||
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
|
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
1. PRECAUTION
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
2.REMOVE FRONT SEAT ASSEMBLY
71074S
3.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER
71868N
4.REMOVE FRONT SEAT FRONT CUSHION SHIELD
71812D
5.REMOVE FRONT SEAT CUSHION SHIELD
71862
6.REMOVE FRONT SEAT INNER CUSHION SHIELD
7.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY
71931
8.REMOVE FRONT SEAT HEADREST SUPPORT
9.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
72760D
10.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
w/ Climate Control Seat System
Disengage the wire harness clamp and disconnect the connector.
Disconnect each connector and disengage each clamp.

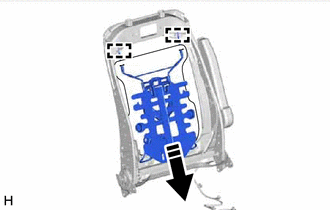

Disengage the 2 claws to remove the 2 front seatback edge protectors from the front seatback frame sub-assembly.
|
Remove in this Direction |
Disengage the 2 guides to remove the lumbar support adjuster assembly LH from the front seatback frame sub-assembly as shown in the illustration.
79977A
11.REMOVE SEATBACK FELT
85867A
12.REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
71587
13.REMOVE FRONT SEATBACK EDGE PROTECTOR
