M20C-FKS, M20D-FKS ENGINE CONTROL  ACTIVE CONTROL ENGINE MOUNT(for Front Side)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front engine mounting insulator removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 16571C 9.DISCONNECT NO. 1 RADIATOR HOSE

a.
A475929

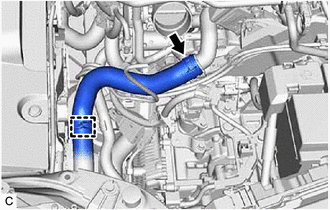

Disengage the clamp and disconnect the No. 1 radiator hose from the fan with motor assembly.


b.

Slide the clip and disconnect the No. 1 radiator hose from the water outlet.


Hide 11.DISCONNECT WIRE HARNESS

a.

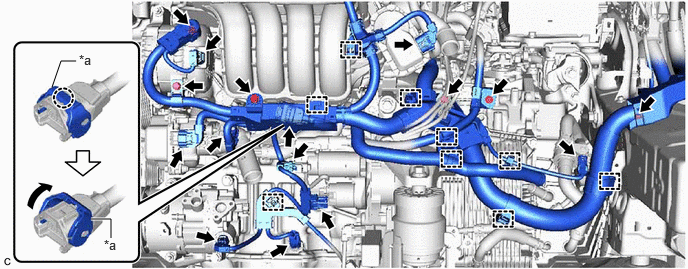

Open the terminal cap.

A573474C01
0.542,0.906 0.635,0.635 0.635,0.635 0.792,0.635 false 0.948,2.281 1.156,2.281 1.156,2.281 1.156,2.479 true 0.823,0.542 1.135,0.74 0.313,0.198 10 false *a 1.083,2.469 1.396,2.667 0.313,0.198 10 false *a
*a Lock Lever - -



b.

Remove the nut and disconnect the wire harness from terminal B.


c.

Remove the 5 bolts.


d.

Disconnect the 9 connectors and disengage the 9 clamps.


e.

Disengage the claw and raise the lock lever to disconnect the No. 6 engine wire connector as shown in the illustration.


Hide 12361 12.REMOVE FRONT ENGINE MOUNTING INSULATOR

a.
A475930

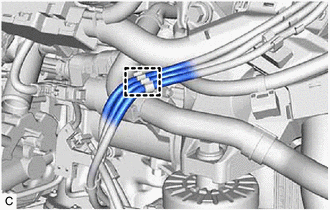

Disengage the clamp to disconnect the vacuum hose from the No. 1 water by-pass hose.


b.
A475931

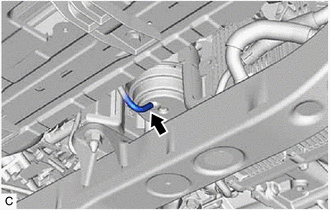

Disconnect the vacuum hose from the front engine mounting insulator.


c.
A475933

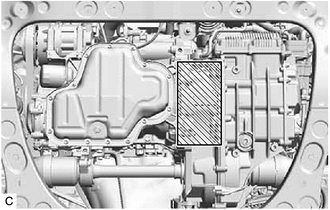

Support the engine assembly with transaxle using a jack and wooden block.


d.
A475934

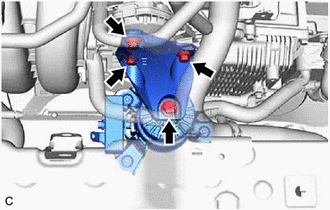

Remove the 4 bolts and front engine mounting bracket.


e.
A475935

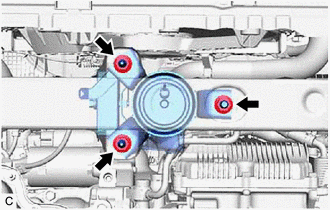

Remove the 3 nuts and front engine mounting insulator from the front frame assembly.
