RM38N0EC _52 Drivetrain _111808 AXLE AND DIFFERENTIAL _0501333 REAR AXLE HUB(for AWD) G

AXLE AND DIFFERENTIAL  REAR AXLE HUB(for AWD)  ON-VEHICLE INSPECTION


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle hub and bearing assembly on-vehicle inspection are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

for HV Model

Auxiliary battery terminal is disconnected/reconnected


Reset back door close position Power Back Door System (Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)

HINT:
for HV Model:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


CAUTION / NOTICE / HINT

NOTICE:
·

When removing or installing the front disc brake caliper assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure. (for HV Model)

·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected. (for HV Model)



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 6.INSPECT REAR AXLE HUB BEARING LOOSENESS

a.

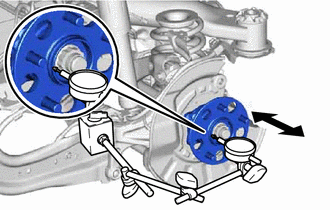

C433871

Using a dial indicator, check for looseness near the center of the rear axle hub.

Maximum looseness:

0.05 mm (0.00197 in.)


NOTICE:
·

Ensure that the dial indicator is set perpendicular to the measurement surface.

·

Keep the magnet of the dial indicator away from the rear skid control sensor.



HINT:

If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.



Hide 7.INSPECT REAR AXLE HUB RUNOUT

a.

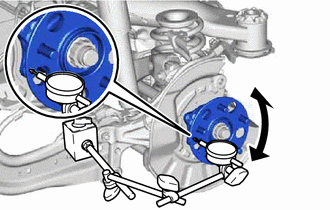

C433872

Using a dial indicator, check for runout on the surface of the rear axle hub outside the rear axle hub bolts.

Maximum runout:

0.05 mm (0.00197 in.)


NOTICE:
·

Ensure that the dial indicator is set perpendicular to the measurement surface.

·

Make sure to install the tip of the dial indicator towards the outside of the rear axle hub bolts.

·

Keep the magnet of the dial indicator away from the rear skid control sensor.



HINT:

If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.



Hide 12.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (for HV Model)

Hide 13. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (for HV Model)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
