RM38N0EC _55 Steering _111820 STEERING COLUMN _0503156 STEERING WHEEL A

STEERING COLUMN  STEERING WHEEL  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during steering wheel assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Disconnect cable from negative auxiliary battery terminal Reset back door close position Power Back Door System (Click here)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Disconnect cable from negative auxiliary battery terminal Reset back door close position Power Back Door System (Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:
·
Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

·
Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


for Gasoline Model:
·
Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

·
Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -



CAUTION:
B394719

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION


NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


PROCEDURE

Hide 1.ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide 3.REMOVE STEERING WHEEL ASSEMBLY

a.

Disconnect each connector.


b.

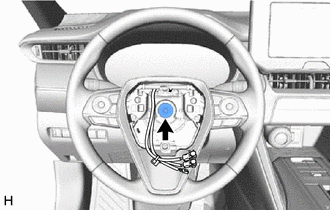

C472821

Using a 10 mm hexagon socket wrench, remove the steering wheel assembly set bolt.


c.

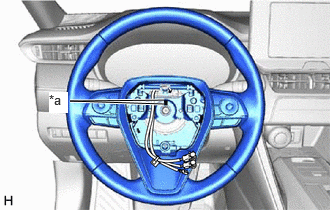

C472822C01
1.708,1.042 0.729,1.052 0.729,1.052 1.708,1.083 true 0.51,0.958 0.708,1.177 0.198,0.219 10 true *a
*a Matchmark


Put matchmarks on the steering wheel assembly and steering main shaft.


d.

Temporarily install the steering wheel assembly set bolt.

NOTICE:

Do not overtighten the steering wheel assembly set bolt.



e.

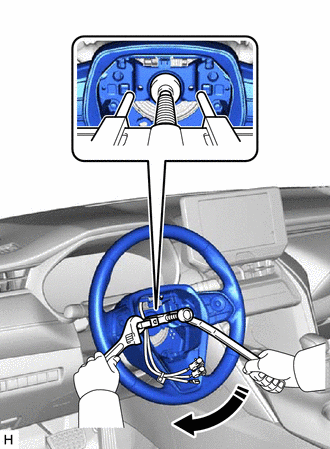

C472823
0.49,0.844 1.583,0.844 true 0.51,1.26 1.052,1.26 true 3.156,3.708 3.375,3.927 0.219,0.219 10 false *a 0.938,4.188 1.25,4.344 0.313,0.156 10 false *b 0.167,0.771 0.5,0.948 0.333,0.177 10 false SST 0.198,1.177 0.531,1.354 0.333,0.177 10 false SST
*a Turn
*b Hold


Using SST, separate the steering wheel assembly.

SST
09950-50013  (09951-05010, 09952-05010, 09953-05020, 09954-05031, 09957-04010)
09950-60010  (09951-00330)

NOTICE:

Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.



f.

Remove the steering wheel assembly set bolt and steering wheel assembly.
