K120 / K120F / K121 / K121F CVT  K121 / K121F SHIFT LEVER POSITION SENSOR  ADJUSTMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during shift lever position sensor adjustment are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: If transaxle compensation code read from ECM

*2: If transaxle compensation code not read from ECM

Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Replacement of ECM Update ECU security key Vehicle Control History (RoB) are stored (Click here)
Perform Vehicle Identification Number (VIN) or frame number registration DTC is output (Click here)
Code registration Engine start See Service Bulletin for the registration method
·

Transfer transaxle compensation code*1

·

Reset transaxle compensation code*2

·

CVT oil pressure calibration

·

Perform road test to allow ECM to learn


·

Large shift shock

·

Deterioration of fuel efficiency


Initialization:(Click here)
Registration:(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 1.SECURE VEHICLE

a.

Fully apply the parking brake and chock a wheel.

CAUTION:
C332327

·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.




Hide 2.INSPECT SHIFT LEVER POSITION SENSOR POSITION

a.

Start the engine.


b.

Move the shift lever to D and release the brake pedal.

CAUTION:

Be sure to apply the parking brake and chock all 4 wheels to secure the vehicle.



c.
C399326C02
2.573,0.844 2.813,1.052 0.24,0.208 10 false *a 2.573,1.271 2.813,1.479 0.24,0.208 10 false *a 1.844,1.917 2,2.115 0.156,0.198 10 false A 1.833,0.417 1.99,0.615 0.156,0.198 10 false B
*a Gear Disengagement Point


Slowly move the shift lever to N and measure the moving distance (A) of the shift lever from the original point to the gear disengagement point.

NOTICE:

Be sure to move the shift lever slowly.



d.

Move the shift lever to R and release the brake pedal.

CAUTION:

Be sure to apply the parking brake and chock all 4 wheels to secure the vehicle.



e.

Slowly move the shift lever to N and measure the moving distance (B) of the shift lever from the original point to the gear disengagement point.

NOTICE:

Be sure to move the shift lever slowly.



f.

Check that the moving distances (A) and (B) shown in the illustration are almost the same.

HINT:
·

If the moving distances (A) and (B) are almost the same, adjustment of the shift lever position sensor position is not necessary.

·

If the moving distance (A) is shorter than (B), perform step [#1] of adjust shift lever position sensor position.

·

If the moving distance (B) is shorter than (A), perform step [#2] of adjust shift lever position sensor position.




Hide 3.ADJUST SHIFT LEVER POSITION SENSOR POSITION




d.

If the moving distance (A) is shorter than (B). [#1]

HINT:

If the shift lever is moved from R to N, the moving distance of the shift lever from the original point to the gear disengagement point becomes longer.


i.

Move the shift lever to N.


ii.

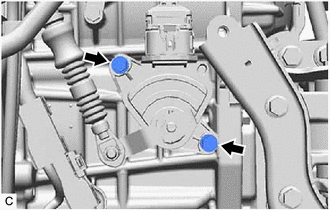

C501954

Loosen the 2 bolts.


iii.
C500381

Slightly turn the shift lever position sensor counterclockwise.


iv.
C501954

Tighten the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


v.

Check the shift lever position sensor position.



e.

If the moving distance (B) is shorter than (A). [#2]

HINT:

If the shift lever is moved from D to N, the moving distance of the shift lever from the original point to the gear disengagement point becomes longer.


i.

Move the shift lever to N.


ii.
C501954

Loosen the 2 bolts.


iii.
C500382

Slightly turn the shift lever position sensor clockwise.


iv.
C501954

Tighten the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


v.

Check the shift lever position sensor position.
