RM38N0EC _52 Drivetrain _111806 K120 / K120F / K121 / K121F CVT _0587293 K121 / K121F SHIFT LEVER POSITION SENSOR A

K120 / K120F / K121 / K121F CVT  K121 / K121F SHIFT LEVER POSITION SENSOR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during shift lever position sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: If transaxle compensation code read from ECM

*2: If transaxle compensation code not read from ECM

Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Replacement of ECM Update ECU security key Vehicle Control History (RoB) are stored (Click here)
Perform Vehicle Identification Number (VIN) or frame number registration DTC is output (Click here)
Code registration Engine start See Service Bulletin for the registration method
·

Transfer transaxle compensation code*1

·

Reset transaxle compensation code*2

·

CVT oil pressure calibration

·

Perform road test to allow ECM to learn


·

Large shift shock

·

Deterioration of fuel efficiency


Initialization:(Click here)
Registration:(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 1.SECURE VEHICLE

a.

Fully apply the parking brake and chock a wheel.

CAUTION:
C332327

·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.




Hide 33820B 5.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.
C413821C01
1.688,2.49 1.854,2.25 1.854,2.25 1.979,2.25 false 2.01,2.135 2.313,2.344 0.302,0.208 10 false *a 2.031,3.177 2.281,3.438 0.25,0.26 10 false *b
*a Clip
*b 45° to 60°


While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.


b.
C413822

Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.


Hide 6.REMOVE SHIFT LEVER POSITION SENSOR

a.

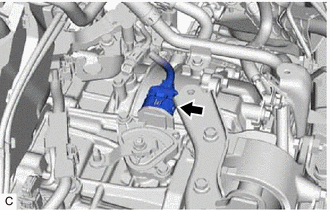

C413823

Disconnect the shift lever position sensor connector.


b.

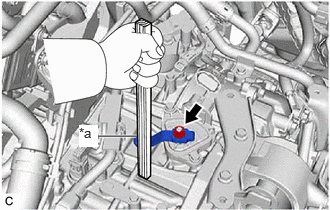

C419966C01
1.031,1.417 1.417,1.417 true 0.823,1.302 1.021,1.531 0.198,0.229 10 true *a
*a Piece of Wood or Equivalent


Using a piece of wood or equivalent to secure the transmission control shaft lever to prevent it from rotating, remove the nut, washer and transmission control shaft lever from the manual valve lever shaft.


c.

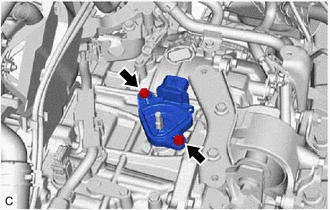

C413825

Remove the 2 bolts and shift lever position sensor from the transaxle case sub-assembly.
