K120 / K120F / K121 / K121F CVT OIL PAN REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transaxle side cover sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Battery terminal isdisconnected/reconnected	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
Replacement of CVT Fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(202111,999999,_51,_111803,_0509671,RM1000000020651,)
Replacement of CVT Fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(202303,999999,_52,_111806,_0584611,RM1000000029R1M,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 51420 1.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (LUBRICATION)>ENGINE OIL COOLER>REMOVAL202303,999999,_51,_111787,_0503348,RM100000002B2JU_01_0021,

Hide Display 53737B 2.REMOVE FRONT FENDER APRON SEAL LH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0141,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0141,

Hide Display 3.DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

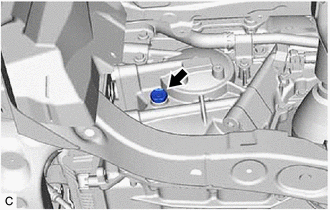

Remove the refill plug and gasket from the rear transaxle case sub-assembly.

Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle case sub-assembly, and drain the fluid.

2.375,0.844 2.656,0.844 true 2.219,0.771 2.448,1 0.229,0.229 10 false *1

*1	Overflow (CVT) Tube

Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle case sub-assembly.

HINT:: Removing the overflow (CVT) tube will drain all fluid in the transaxle case sub-assembly.

Using a 6 mm hexagon socket wrench, install the overflow (CVT) tube to the transaxle case sub-assembly.

Torque:: 0.8 N*m (8 kgf*cm, 7 in.*lbf)

Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle case sub-assembly.

HINT:: Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

Temporarily install the gasket and refill plug to the rear transaxle case sub-assembly.

HINT:: Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

Hide Display 12361 4.REMOVE FRONT ENGINE MOUNTING INSULATOR

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ACTIVE CONTROL ENGINE MOUNT (for Front Side)>REMOVAL202406,202409,_51,_111785,_0503269,RM100000002MPY0,202409,999999,_51,_111785,_0503269,RM100000002NYFT,

Hide Display 5.REMOVE OIL COOLER HOSE

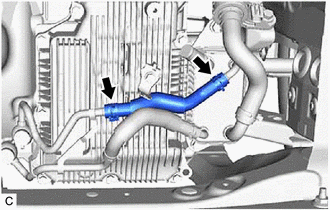

Slide the clip and disconnect the outlet No. 1 oil cooler hose from the transmission oil cooler.

Slide the clip and remove the outlet No. 1 oil cooler hose from the oil cooler elbow sub-assembly.

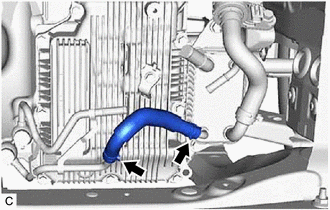

Slide the clip and disconnect the inlet oil cooler hose from the transmission oil cooler.

Slide the clip and remove the inlet oil cooler hose from the oil cooler elbow sub-assembly.

Hide Display 32901L 6.REMOVE OIL COOLER ELBOW SUB-ASSEMBLY

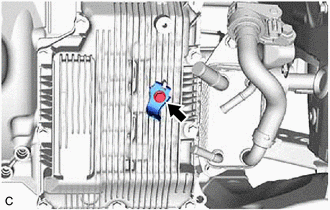

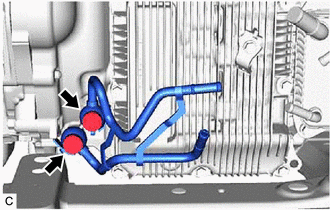

Remove the 2 union bolts, 2 gaskets and oil cooler elbow sub-assembly from the transaxle housing.

Hide Display 7.REMOVE WIRE HARNESS CLAMP BRACKET

Remove the bolt and wire harness clamp bracket from the transaxle side cover sub-assembly.

Hide Display 35015Y 8.REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY

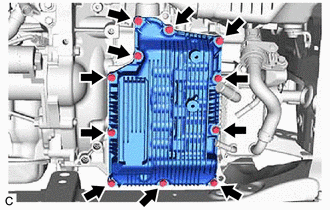

Remove the 11 bolts and transaxle side cover sub-assembly from the transaxle case sub-assembly.

Remove the O-ring from the transaxle side cover sub-assembly.
