RM38N0EC _54 Brake _111815 BRAKE SYSTEM (OTHER) _0500821 BRAKE BOOSTER PUMP A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER PUMP  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during brake booster with accumulator pump assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)
Removal/installation/replacement of brake booster with master cylinder assembly Bleed air
·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system disabled or malfunctions


(Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


NOTICE:
·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY



PROCEDURE

Hide 47070B 2.REMOVE BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY

a.

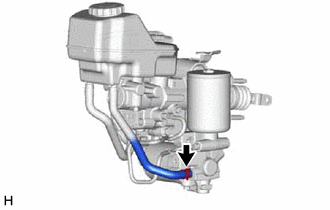

C438544

Slide the clip and disconnect the No. 2 reservoir hose from the brake booster with accumulator pump assembly.


b.

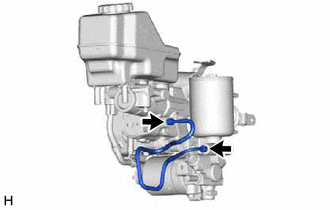

C433646

Using a union nut wrench, remove the brake actuator tube.

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.




c.
C438545

Disengage the 3 clamps.


d.

Remove the nut, brake booster with accumulator pump assembly, brake booster pump bushing and brake actuator case collar.


Hide 47759E 3.REMOVE NO. 2 WIRE CLAMP BRACKET

HINT:

Perform this procedure only when replacement of the No. 2 wire clamp bracket is necessary.


a.
C433648

Using a 5 mm long hexagon socket wrench, remove the bolt and No. 2 wire clamp bracket.


Hide 47941A 4.REMOVE NO. 1 BRAKE POWER SUPPLY BRACKET

HINT:

Perform this procedure only when replacement of the No. 1 brake power supply bracket is necessary.


a.

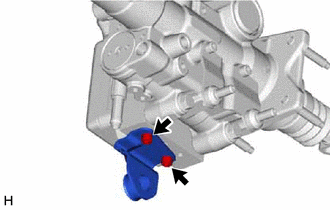

C433649

Using a 5 mm long hexagon socket wrench, remove the 2 bolts and No. 1 brake power supply bracket.


Hide 47942 5.REMOVE NO. 2 BRAKE POWER SUPPLY BRACKET

HINT:

Perform this procedure only when replacement of the No. 2 brake power supply bracket is necessary.


a.

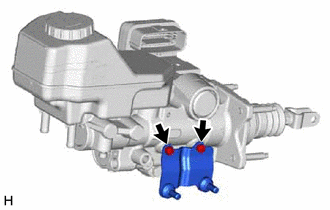

C433650

Using a 5 mm long hexagon socket wrench, remove the 2 bolts and No. 2 brake power supply bracket.
