K120 / K120F / K121 / K121F CVT  TRANSMISSION CONTROL CABLE(for SFTM Made)  ADJUSTMENT

Fully apply the parking brake and chock a wheel.

CAUTION:

·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Move the shift lever to N.

0,0 0,0 false

Disconnect in this Direction

Disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

0.667,1.354 0.854,1.354 0.854,1.354 1.083,0.865 true 0.448,1.25 0.646,1.5 0.198,0.25 10 true *a

*a

Stopper

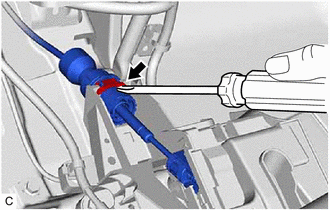

Using a screwdriver, pull out the stopper of the floor shift transmission control select cable.

NOTICE:

Do not remove the stopper. If it is removed, reinstall it to its original position.

1.281,0.26 1.375,0.125 1.375,0.125 1.5,0.125 false 0.823,1.125 0.948,1.125 0.948,1.125 1.021,0.99 false 2.375,0.26 2.469,0.125 2.469,0.125 2.594,0.125 false 1.917,1.135 2.042,1.135 2.042,1.135 2.115,1 false 1.542,0.073 1.792,0.302 0.25,0.229 10 false *a 1.75,1.042 2.031,1.271 0.281,0.229 10 false *b 2.625,0.073 2.875,0.302 0.25,0.229 10 false *a 0.656,1.042 0.938,1.271 0.281,0.229 10 false *b

*a	Stopper
*b	Nut
	Disconnect in this Direction

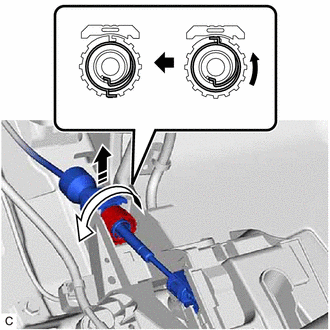

Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the floor shift transmission control select cable from the transmission floor shift assembly.

NOTICE:

·

Do not rotate the nut excessively as the interior spring may come off and the floor shift transmission control select cable will not be reusable.

·

Do not forcibly pull the floor shift transmission control select cable into the cabin.

Push the 2 claws together at the top of the lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to push up the lock piece.

0.323,1.177 2.99,2.604 2.667,1.427 1.552,0.646 1.552,0.167 1.552,0.167 1.667,0.167 false 5.271,1.125 5.271,0.646 5.271,0.646 5.385,0.646 false 1.74,0.073 1.948,0.26 0.208,0.188 10 false *a 0.385,1.219 0.604,1.427 0.219,0.208 10 false *b 5.229,1.906 5.458,2.115 0.229,0.208 10 false *d 5.448,0.552 5.708,0.76 0.26,0.208 10 false *a 1.094,0.344 1.344,0.573 0.25,0.229 10 false *c 1.969,0.333 2.208,0.552 0.24,0.219 10 false *c 1.531,1.229 1.708,1.469 0.177,0.24 10 false *c 1.542,2.354 1.771,2.552 0.229,0.198 10 false *c

*a	Lock Piece	*b	Bottom View
*c	Push	*d	Push up

Turn the nut of the floor shift transmission control select cable 180° counterclockwise. While holding the nut in place, push in the stopper until it clicks twice.

1.219,1.01 1.583,0.51 1.583,0.51 1.688,0.51 false 0.563,2.177 0.667,2.177 0.667,2.177 1.063,1.646 false 1.771,0.417 2.063,0.625 0.292,0.208 10 false *a 0.385,2.094 0.604,2.302 0.219,0.208 10 false *b 3.292,0.594 3.531,0.813 0.24,0.219 10 false *c

*a	Stopper	*b	Nut
*c	Push in	-	-

Connect the floor shift transmission control select cable to the transmission floor shift assembly. Check that the spring is positioned at "A" and push in the stopper.

1.01,0.667 1.167,0.229 1.167,0.229 1.281,0.229 false 3.417,2.458 3.521,2.458 3.521,2.458 3.792,1.813 false 3.521,1.146 4.573,0.406 4.573,0.406 5.917,1.156 false 2.885,1.99 2.99,1.99 2.99,1.99 3.469,1.188 true 5.354,2 5.479,2 5.479,2 5.896,1.219 true 1.313,0.844 1.521,0.615 1.521,0.615 1.646,0.615 false 3.229,2.375 3.458,2.563 0.229,0.188 10 false *1 1.323,0.115 1.583,0.333 0.26,0.219 10 false *a 4.5,0.198 4.729,0.427 0.229,0.229 10 false *b 3.094,0.635 3.354,0.854 0.26,0.219 10 false *d 2.729,1.906 2.906,2.115 0.177,0.208 10 false A 5.188,1.917 5.344,2.156 0.156,0.24 10 false A 1.698,0.5 2.01,0.698 0.313,0.198 10 false *c

*1	Transmission Floor Shift Assembly	-	-
*a	Stopper	*b	Spring
*c	Nut	*d	Push in
	Connect in this Direction	-	-

NOTICE:

·

If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

·

Make sure that the floor shift transmission control select cable is securely locked.

·

Do not forcibly pull the floor shift transmission control select cable into the cabin.

1.323,2.333 1.5,2.333 1.5,2.333 1.604,2.594 false 1.146,2.229 1.396,2.469 0.25,0.24 10 false *a

*a	Lock Piece
	Connect in this Direction

Connect the floor shift transmission control select cable to the transmission floor shift assembly.

NOTICE:

·

Connect the floor shift transmission control select cable all the way to the base of the pin.

·

Connect the floor shift transmission control select cable so that its adjustment lock section is on the driver side.

·

Check that the lock piece is pulled up.

1.417,0.25 1.531,0.25 1.531,0.25 1.646,0.708 false 2.406,0.438 2.281,0.438 2.281,0.438 2.135,0.927 false 1.229,0.167 1.479,0.396 0.25,0.229 10 false *a 2.479,0.354 2.719,0.552 0.24,0.198 10 false *b 1.583,2.969 1.833,3.188 0.25,0.219 10 false *c

*a	Lock Piece
*b	Adjuster Case
*c	Push in

Push in the lock piece of the adjuster case to lock it.

NOTICE:

·

0.667,1.167 0.792,1.167 0.792,1.167 1.042,1.698 true 1.76,0.333 2.177,0.333 false 0.479,1.094 0.719,1.365 0.24,0.271 10 false *1 1.573,0.24 1.896,0.479 0.323,0.24 10 false *a

*1	Floor Shift Transmission Control Select Cable
*a	Lever Shaft

When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

·

When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or floor shift transmission control select cable forward or backward.
