SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B009E87  Right Side Restraints Sensor 5 Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority Test Mode / Check Mode
B009E87 Right Side Restraints Sensor 5 Missing Message
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to +B signal in the side collision sensor RH circuit (bus 1) for 2 seconds.

·

Side airbag pressure sensor RH malfunction

·

Airbag sensor assembly malfunction


·

Harness or connector

·

Side airbag pressure sensor RH

·

Airbag sensor assembly


Comes on SRS Airbag A Does not apply to test/check mode

WIRING DIAGRAM

B629784E03

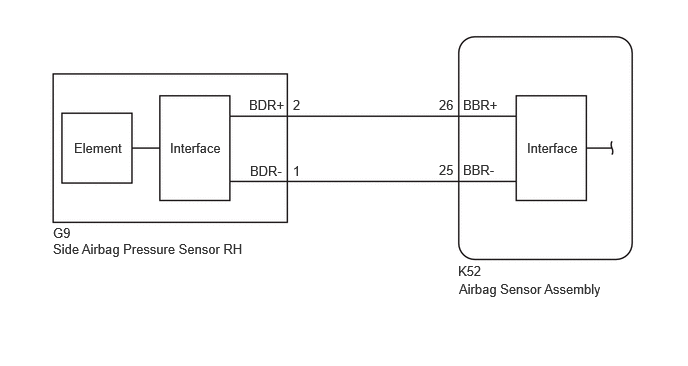

4.781,2.927 6.49,3.365 1.708,0.438 10 false Airbag Sensor Assembly 4.771,2.74 5.594,2.938 0.823,0.198 10 false K52 4.823,1.01 5.938,1.438 1.115,0.427 10 false BBR+ 5.49,1.458 6.063,1.865 0.573,0.406 10 false Interface 4.573,1.01 4.938,1.406 0.365,0.396 10 false 26 4.823,1.688 5.938,2.115 1.115,0.427 10 false BBR- 4.573,1.688 4.865,1.958 0.292,0.271 10 false 25 2.594,1.01 3.708,1.438 1.115,0.427 10 false BDR+ 2.604,1.698 3.719,2.125 1.115,0.427 10 false BDR- 3.052,1.01 4.167,1.438 1.115,0.427 10 false 2 3.052,1.698 4.167,2.125 1.115,0.427 10 false 1 1.771,1.458 2.344,1.875 0.573,0.417 10 false Interface 0.771,1.458 1.344,1.875 0.573,0.417 10 false Element 0.552,2.344 1.656,2.542 1.104,0.198 10 false G9 0.552,2.51 3.354,2.896 2.802,0.385 10 false Side Airbag Pressure Sensor RH

CAUTION / NOTICE / HINT

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Pre-procedure1

a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


Procedure1

c.

Check that the connectors are properly connected to the airbag sensor assembly and side airbag pressure sensor RH.

OK:

The connectors are properly connected.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

2.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

Pre-procedure1

a.
C208245C62
1.615,1.646 1.615,1.365 false 0.646,1.219 0.958,1.417 0.313,0.198 10 false *1 2.542,0.906 2.854,1.104 0.313,0.198 10 false *2 1.542,1.667 1.854,1.865 0.313,0.198 10 false *3
*1 Side Airbag Pressure Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness


Disconnect the airbag sensor assembly connector.


b.

Disconnect the side airbag pressure sensor RH connector.


Procedure1

c.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

3.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
a.
B582246C04

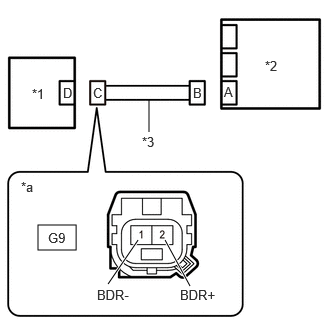

0.396,2.344 0.792,2.604 0.396,0.26 1.552,1.375 1.552,1.031 false 1.125,2.958 1.438,2.5 true 1.979,2.979 1.719,2.5 true 0.333,0.896 0.646,1.052 0.313,0.156 10 false *1 2.76,0.604 3.073,0.76 0.313,0.156 10 false *2 1.479,1.396 1.792,1.552 0.313,0.156 10 false *3 0.219,1.865 0.531,2.021 0.313,0.156 10 false *a 1.01,2.99 1.625,3.188 0.615,0.198 10 false BDR- 1.875,2.99 2.49,3.188 0.615,0.198 10 false BDR+ 0.5,2.396 0.958,2.594 0.458,0.198 10 false G9 2.333,0.875 2.49,1.073 0.156,0.198 10 false A 2.01,0.885 2.167,1.083 0.156,0.198 10 false B 0.969,0.885 1.125,1.083 0.156,0.198 10 false C 0.656,0.885 0.813,1.083 0.156,0.198 10 false D
*1 Side Airbag Pressure Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Side Airbag Pressure Sensor RH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(G9)Location & Routing

Click Connector(G9)Body>Front Door Wire RH / Front Door Wire LH>Side Airbag Pressure Sensor RH

G9-2 (BDR+) - G9-1 (BDR-) Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

Pre-procedure1

a.
B629812C01

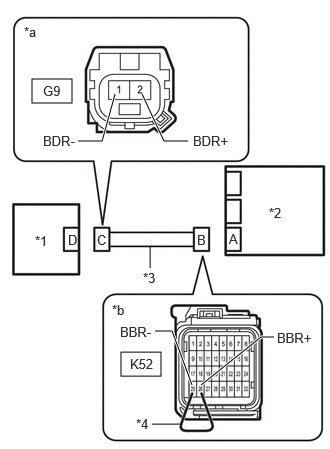

1.26,3.667 1.677,3.917 0.417,0.25 0.333,0.823 0.75,1.073 0.417,0.25 1.615,3.448 1.792,3.448 1.792,3.448 2,4.01 true 2.854,3.51 2.719,3.51 2.719,3.51 2.094,4.01 true 0.813,1.469 1.063,1.469 1.063,1.469 1.198,0.979 true 1.958,1.469 1.708,1.469 1.708,1.469 1.479,0.979 true 1.583,4.417 1.875,4.417 true 1.563,2.792 1.563,2.563 false 0.365,2.427 0.552,2.594 0.188,0.167 10 false *1 0.708,2.417 0.896,2.583 0.188,0.167 10 false D 1.01,2.417 1.198,2.583 0.188,0.167 10 false C 2.052,2.417 2.24,2.583 0.188,0.167 10 false B 2.385,2.406 2.573,2.573 0.188,0.167 10 false A 2.802,2.135 2.99,2.302 0.188,0.167 10 false *2 0.448,0.865 0.75,1.021 0.302,0.156 10 false G9 0.25,0.25 0.438,0.417 0.188,0.167 10 false *a 0.448,1.385 0.958,1.563 0.51,0.177 10 false BDR- 2.01,1.385 2.49,1.552 0.479,0.167 10 false BDR+ 1.25,3.375 1.688,3.563 0.438,0.188 10 false BBR- 2.885,3.438 3.344,3.656 0.458,0.219 10 false BBR+ 1.354,3.708 1.677,3.885 0.323,0.177 10 false K52 1.167,3.146 1.354,3.313 0.188,0.167 10 false *b 1.49,2.813 1.719,2.969 0.229,0.156 10 false *3 1.417,4.333 1.854,4.521 0.438,0.188 10 false *4
*1 Side Airbag Pressure Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*4 Service Wire
*a Front view of wire harness connector
(to Side Airbag Pressure Sensor RH)
*b Front view of wire harness connector
(to Airbag Sensor Assembly)


Using a service wire, connect terminals 26 (BBR+) and 25 (BBR-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(G9)Location & Routing

Click Connector(G9)Body>Front Door Wire RH / Front Door Wire LH>Side Airbag Pressure Sensor RH

G9-2 (BDR+) - G9-1 (BDR-) Always Below 1 Ω


Result:
Proceed to
OK
NG



Post-procedure1

c.

Disconnect the service wire from connector B.



OK

5.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
a.
B582246C04
0.396,2.344 0.792,2.604 0.396,0.26 1.552,1.375 1.552,1.031 false 1.125,2.958 1.438,2.5 true 1.979,2.979 1.719,2.5 true 0.333,0.896 0.646,1.052 0.313,0.156 10 false *1 2.76,0.604 3.073,0.76 0.313,0.156 10 false *2 1.479,1.396 1.792,1.552 0.313,0.156 10 false *3 0.219,1.865 0.531,2.021 0.313,0.156 10 false *a 1.01,2.99 1.625,3.188 0.615,0.198 10 false BDR- 1.875,2.99 2.49,3.188 0.615,0.198 10 false BDR+ 0.5,2.396 0.958,2.594 0.458,0.198 10 false G9 2.333,0.875 2.49,1.073 0.156,0.198 10 false A 2.01,0.885 2.167,1.083 0.156,0.198 10 false B 0.969,0.885 1.125,1.083 0.156,0.198 10 false C 0.656,0.885 0.813,1.083 0.156,0.198 10 false D
*1 Side Airbag Pressure Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Side Airbag Pressure Sensor RH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(G9)Location & Routing

Click Connector(G9)Body>Front Door Wire RH / Front Door Wire LH>Side Airbag Pressure Sensor RH

G9-2 (BDR+) - Body ground Always 1 MΩ or higher
G9-1 (BDR-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

6.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

Pre-procedure1

a.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


b.

Turn the ignition switch to ON.


Procedure1

c.
B582246C04
0.396,2.344 0.792,2.604 0.396,0.26 1.552,1.375 1.552,1.031 false 1.125,2.958 1.438,2.5 true 1.979,2.979 1.719,2.5 true 0.333,0.896 0.646,1.052 0.313,0.156 10 false *1 2.76,0.604 3.073,0.76 0.313,0.156 10 false *2 1.479,1.396 1.792,1.552 0.313,0.156 10 false *3 0.219,1.865 0.531,2.021 0.313,0.156 10 false *a 1.01,2.99 1.625,3.188 0.615,0.198 10 false BDR- 1.875,2.99 2.49,3.188 0.615,0.198 10 false BDR+ 0.5,2.396 0.958,2.594 0.458,0.198 10 false G9 2.333,0.875 2.49,1.073 0.156,0.198 10 false A 2.01,0.885 2.167,1.083 0.156,0.198 10 false B 0.969,0.885 1.125,1.083 0.156,0.198 10 false C 0.656,0.885 0.813,1.083 0.156,0.198 10 false D
*1 Side Airbag Pressure Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Side Airbag Pressure Sensor RH)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(G9)Location & Routing

Click Connector(G9)Body>Front Door Wire RH / Front Door Wire LH>Side Airbag Pressure Sensor RH

G9-2 (BDR+) - Body ground Ignition switch ON Below 1 V
G9-1 (BDR-) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

d.

Turn the ignition switch off.


e.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.



OK

7.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CLEAR DTC

Pre-procedure1

a.
C374693C41
1.75,1.542 1.75,1.26 false 0.979,1.115 1.292,1.271 0.313,0.156 10 false *1 2.5,0.875 2.813,1.031 0.313,0.156 10 false *2 1.677,1.563 1.99,1.719 0.313,0.156 10 false *3
*1 Side Airbag Pressure Sensor LH
*2 Airbag Sensor Assembly
*3 Wire Harness


Connect the airbag sensor assembly connector.


b.

Interchange the side airbag pressure sensor RH with LH and connect the connectors to them.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

8.CHECK SIDE AIRBAG PRESSURE SENSOR RH
8.CHECK SIDE AIRBAG PRESSURE SENSOR RH

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B009E87 is output A
B009B87 is output B
B009B87 and B009E87 are not output C


HINT:

Codes other than DTCs B009B87 and B009E87 may be output at this time, but they are not related to this check.



Post-procedure1

c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


e.

Return the side airbag pressure sensor LH and RH to their original positions and connect the connectors to them.



A

B

C
