SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B009587  Right Frontal Restraints Sensor Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority Test Mode / Check Mode
B009587 Right Frontal Restraints Sensor Missing Message
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to +B signal in the front airbag sensor RH circuit for 2 seconds.

·

Front airbag sensor RH malfunction

·

Airbag sensor assembly malfunction


·

Harness or connector

·

Front airbag sensor RH

·

Airbag sensor assembly


Comes on SRS Airbag A Does not apply to test/check mode

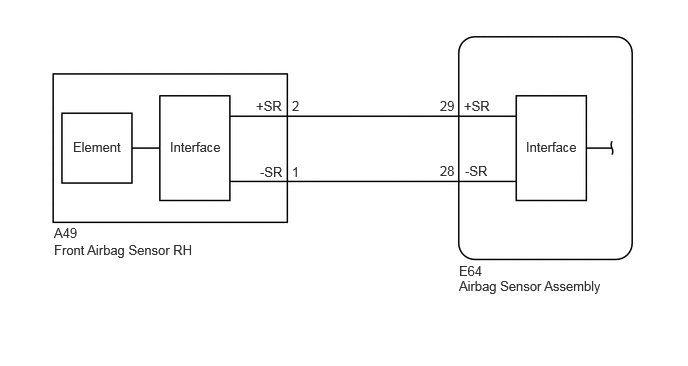

WIRING DIAGRAM

B473434E63
4.781,2.896 6.854,3.365 2.073,0.469 10 false Airbag Sensor Assembly 4.781,2.74 5.25,2.938 0.469,0.198 10 false E64 4.583,1.021 5.042,1.323 0.458,0.302 10 false 29 4.583,1.698 5.333,2.073 0.75,0.375 10 false 28 4.833,1.021 5.292,1.323 0.458,0.302 10 false +SR 4.844,1.698 5.594,2.073 0.75,0.375 10 false -SR 5.479,1.448 6.156,1.74 0.677,0.292 10 false Interface 1.771,1.448 2.344,1.781 0.573,0.333 10 false Interface 0.76,1.448 1.323,1.76 0.563,0.313 10 false Element 3.042,1.021 3.5,1.323 0.458,0.302 10 false 2 3.042,1.708 3.5,2.01 0.458,0.302 10 false 1 2.667,1.021 3.125,1.323 0.458,0.302 10 false +SR 2.708,1.708 3.458,2.083 0.75,0.375 10 false -SR 0.563,2.344 0.948,2.552 0.385,0.208 10 false A49 0.563,2.521 2.635,2.99 2.073,0.469 10 false Front Airbag Sensor RH

CAUTION / NOTICE / HINT

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Pre-procedure1

a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


Procedure1

c.

Check that the connectors are properly connected to the airbag sensor assembly and front airbag sensor RH.

OK:

The connectors are properly connected.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

2.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

Pre-procedure1

a.
C413952C05
1.729,1.479 1.729,1.135 false 0.719,1 1.031,1.198 0.313,0.198 10 false *1 2.729,0.99 3.042,1.188 0.313,0.198 10 false *2 1.656,1.5 1.885,1.656 0.229,0.156 10 false *3
*1 Front Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness


Disconnect the airbag sensor assembly connector.


b.

Disconnect the front airbag sensor RH connector.


Procedure1

c.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

3.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
a.

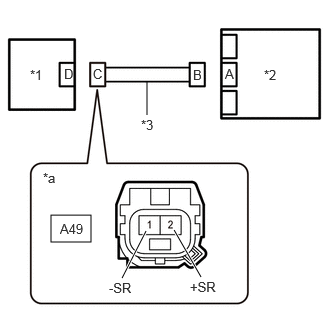

B582242C05
0.531,2.24 0.948,2.521 0.417,0.281 1.531,1.198 1.531,0.854 false 2.094,2.885 1.813,2.396 true 1.271,2.896 1.521,2.406 true 2.75,0.698 3.063,0.854 0.313,0.156 10 false *2 0.313,0.698 0.625,0.854 0.313,0.156 10 false *1 1.469,1.219 1.781,1.375 0.313,0.156 10 false *3 0.448,1.771 0.76,1.927 0.313,0.156 10 false *a 2.344,0.688 2.5,0.885 0.156,0.198 10 false A 2.01,0.698 2.167,0.896 0.156,0.198 10 false B 0.969,0.688 1.125,0.885 0.156,0.198 10 false C 0.667,0.688 0.823,0.885 0.156,0.198 10 false D 0.625,2.302 1.083,2.5 0.458,0.198 10 false A49 1.135,2.917 1.594,3.115 0.458,0.198 10 false -SR 1.979,2.906 2.438,3.104 0.458,0.198 10 false +SR
*1 Front Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Front Airbag Sensor RH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A49)Location & Routing

Click Connector(A49)Engine Compartment>Engine Room Main Wire / Transmission Wire>Airbag Sensor Front RH

A49-2 (+SR) - A49-1 (-SR) Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

Pre-procedure1

a.

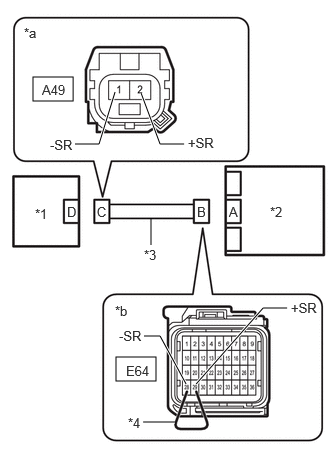

E441550C03
0.344,0.802 0.76,1.052 0.417,0.25 1.208,3.719 1.625,3.969 0.417,0.25 0.781,1.5 1.031,1.5 1.031,1.5 1.198,0.958 true 1.917,1.5 1.667,1.5 1.667,1.5 1.469,0.969 true 1.5,3.5 1.667,3.5 1.667,3.5 1.938,4 true 2.99,3.208 2.74,3.208 2.74,3.208 2.042,4 true 1.49,4.396 1.823,4.396 true 1.573,2.552 1.573,2.271 false 0.365,2.146 0.552,2.313 0.188,0.167 10 false *1 1.01,2.125 1.198,2.292 0.188,0.167 10 false C 2.052,2.125 2.24,2.292 0.188,0.167 10 false B 2.385,2.125 2.573,2.292 0.188,0.167 10 false A 2.813,2.125 3.042,2.333 0.229,0.208 10 false *2 0.438,0.854 0.74,1.01 0.302,0.156 10 false A49 0.25,0.26 0.438,0.427 0.188,0.167 10 false *a 1.333,4.323 1.552,4.49 0.219,0.167 10 false *4 0.521,1.427 1.031,1.604 0.51,0.177 10 false -SR 1.958,1.406 2.438,1.573 0.479,0.167 10 false +SR 1.313,3.781 1.615,3.938 0.302,0.156 10 false E64 1.198,3.156 1.385,3.323 0.188,0.167 10 false *b 1.5,2.573 1.729,2.729 0.229,0.156 10 false *3 0.698,2.125 0.885,2.292 0.188,0.167 10 false D 1.24,3.417 1.719,3.583 0.479,0.167 10 false -SR 3.031,3.125 3.396,3.323 0.365,0.198 10 false +SR
*1 Front Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*4 Service Wire
*a Front view of wire harness connector
(to Front Airbag Sensor RH)
*b Front view of wire harness connector
(to Airbag Sensor Assembly)


Using a service wire, connect terminals 29 (+SR) and 28 (-SR) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A49)Location & Routing

Click Connector(A49)Engine Compartment>Engine Room Main Wire / Transmission Wire>Airbag Sensor Front RH

A49-2 (+SR) - A49-1 (-SR) Always Below 1 Ω


Result:
Proceed to
OK
NG



Post-procedure1

c.

Disconnect the service wire from connector B.



OK

5.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
a.
B582242C05
0.531,2.24 0.948,2.521 0.417,0.281 1.531,1.198 1.531,0.854 false 2.094,2.885 1.813,2.396 true 1.271,2.896 1.521,2.406 true 2.75,0.698 3.063,0.854 0.313,0.156 10 false *2 0.313,0.698 0.625,0.854 0.313,0.156 10 false *1 1.469,1.219 1.781,1.375 0.313,0.156 10 false *3 0.448,1.771 0.76,1.927 0.313,0.156 10 false *a 2.344,0.688 2.5,0.885 0.156,0.198 10 false A 2.01,0.698 2.167,0.896 0.156,0.198 10 false B 0.969,0.688 1.125,0.885 0.156,0.198 10 false C 0.667,0.688 0.823,0.885 0.156,0.198 10 false D 0.625,2.302 1.083,2.5 0.458,0.198 10 false A49 1.135,2.917 1.594,3.115 0.458,0.198 10 false -SR 1.979,2.906 2.438,3.104 0.458,0.198 10 false +SR
*1 Front Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Front Airbag Sensor RH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A49)Location & Routing

Click Connector(A49)Engine Compartment>Engine Room Main Wire / Transmission Wire>Airbag Sensor Front RH

A49-2 (+SR) - Body ground Always 1 MΩ or higher
A49-1 (-SR) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

6.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

Pre-procedure1

a.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


b.

Turn the ignition switch to ON.


Procedure1

c.
B582242C05
0.531,2.24 0.948,2.521 0.417,0.281 1.531,1.198 1.531,0.854 false 2.094,2.885 1.813,2.396 true 1.271,2.896 1.521,2.406 true 2.75,0.698 3.063,0.854 0.313,0.156 10 false *2 0.313,0.698 0.625,0.854 0.313,0.156 10 false *1 1.469,1.219 1.781,1.375 0.313,0.156 10 false *3 0.448,1.771 0.76,1.927 0.313,0.156 10 false *a 2.344,0.688 2.5,0.885 0.156,0.198 10 false A 2.01,0.698 2.167,0.896 0.156,0.198 10 false B 0.969,0.688 1.125,0.885 0.156,0.198 10 false C 0.667,0.688 0.823,0.885 0.156,0.198 10 false D 0.625,2.302 1.083,2.5 0.458,0.198 10 false A49 1.135,2.917 1.594,3.115 0.458,0.198 10 false -SR 1.979,2.906 2.438,3.104 0.458,0.198 10 false +SR
*1 Front Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Front Airbag Sensor RH)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(A49)Location & Routing

Click Connector(A49)Engine Compartment>Engine Room Main Wire / Transmission Wire>Airbag Sensor Front RH

A49-2 (+SR) - Body ground Ignition switch ON Below 1 V
A49-1 (-SR) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

d.

Turn the ignition switch off.


e.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.



OK

7.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CLEAR DTC

Pre-procedure1

a.
C413953C04
1.656,1.313 1.656,0.938 false 0.885,0.802 1.198,1 0.313,0.198 10 false *1 2.417,0.802 2.729,1 0.313,0.198 10 false *2 1.594,1.333 1.906,1.531 0.313,0.198 10 false *3
*1 Front Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Wire Harness


Connect the airbag sensor assembly connector.


b.

Interchange the front airbag sensor RH with LH and connect the connectors to them.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

8.CHECK FRONT AIRBAG SENSOR RH
8.CHECK FRONT AIRBAG SENSOR RH

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B009587 is output A
B009087 is output B
B009087 and B009587 are not output C


HINT:

Codes other than DTCs B009087 and B009587 may be output at this time, but they are not related to this check.



Post-procedure1

c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


e.

Return the front airbag sensor LH and RH to their original positions and connect the connectors to them.



A

B

C
