NETWORKING  CAN COMMUNICATION SYSTEM(for Gasoline Model)  Steering Angle Sensor Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Steering Angle Sensor Communication Stop Mode Communication stop for "Spiral cable (Steering Angle Sensor)" is indicated on the "Communication Bus Check" screen of the GTS.
Click here(Click here)
·

Steering sensor branch line or connector

·

Power source circuit of steering sensor

·

Steering sensor ground circuit

·

Steering sensor

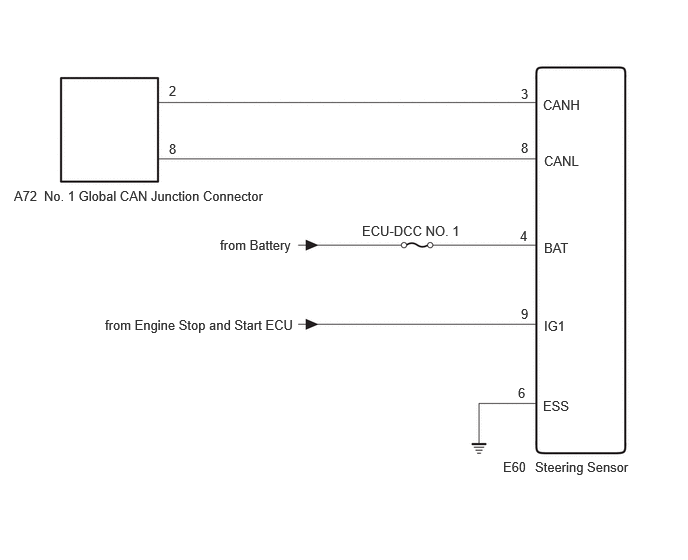

WIRING DIAGRAM

C472663E01
0.458,1.958 3.26,2.271 2.802,0.313 10 false No. 1 Global CAN Junction Connector 0.146,1.958 0.552,2.24 0.406,0.281 10 false A72 1.76,1.469 2.094,1.729 0.333,0.26 10 false 8 1.76,0.865 2.094,1.125 0.333,0.26 10 false 2 5.427,0.896 5.76,1.156 0.333,0.26 10 false 3 5.427,1.458 5.76,1.719 0.333,0.26 10 false 8 3.771,2.323 4.99,2.677 1.219,0.354 10 false ECU-DCC NO. 1 5.417,2.375 5.75,2.635 0.333,0.26 10 false 4 5.427,3.188 5.76,3.448 0.333,0.26 10 false 9 2.292,2.469 4.094,2.688 1.802,0.219 10 false from Battery 1.094,3.302 3.219,3.719 2.125,0.417 10 false from Engine Stop and Start ECU 5.396,4.01 5.729,4.271 0.333,0.26 10 false 6 5.656,4.146 5.99,4.406 0.333,0.26 10 false ESS 5.667,3.313 6,3.573 0.333,0.26 10 false IG1 5.667,2.5 6,2.76 0.333,0.26 10 false BAT 5.656,1.01 6.281,1.26 0.625,0.25 10 false CANH 5.667,1.594 6.344,1.906 0.677,0.313 10 false CANL 5.24,4.781 5.573,5.042 0.333,0.26 10 false E60 5.573,4.781 6.667,5.073 1.094,0.292 10 false Steering Sensor

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS LINES (STEERING SENSOR BRANCH LINE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the E60 steering sensor connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E60)Location & Routing

Click Connector(E60)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Steering Sensor

E60-3 (CANH) - E60-8 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Result
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (STEERING SENSOR)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E60)Location & Routing

Click Connector(E60)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Steering Sensor

E60-6 (ESS) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(E60)Location & Routing

Click Connector(E60)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Steering Sensor

E60-4 (BAT) - Body ground Always 11 to 14 V



Result:
Result
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Reconnect the cable to the negative (-) battery terminal.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(E60)Location & Routing

Click Connector(E60)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Steering Sensor

E60-9 (IG1) - Body ground Ignition switch ON 10.5 to 16 V



Result:
Result
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

GO TO STOP AND START SYSTEM (FOR BACKUP BOOST CONVERTER CIRCUIT)

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit
