RM38N0EC _52 Drivetrain _111806 K120 / K120F / K121 / K121F CVT _0587293 K121 / K121F SHIFT LEVER POSITION SENSOR A

K120 / K120F / K121 / K121F CVT  K121 / K121F SHIFT LEVER POSITION SENSOR  INSTALLATION


PROCEDURE

Hide 1.INSTALL SHIFT LEVER POSITION SENSOR

a.

Temporarily install the shift lever position sensor to the transaxle case sub-assembly with the 2 bolts.

NOTICE:

Do not allow any water/moisture to enter the connector.



b.
C414219

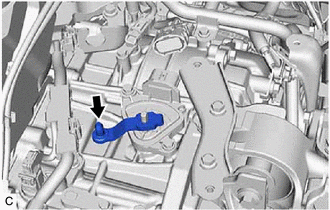

Temporarily install the transmission control shaft lever to the manual valve lever shaft.


c.
C422182C01
0.677,1.688 0.896,1.896 0.219,0.208 10 true *a
*a N


Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.


d.

Remove the transmission control shaft lever from the manual valve lever shaft.


e.
C501955C01
2.667,0.302 2.938,0.302 false 2.979,0.198 3.219,0.427 0.24,0.229 10 false *a
*a Protrusion


Align the protrusions of the shift lever position sensor as shown in the illustration.


f.

Hold the shift lever position sensor in that position and tighten the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


g.

Install the transmission control shaft lever to the manual valve lever shaft with the washer and nut.

Torque:
12.7 N*m (130 kgf*cm, 9 ft.*lbf)

NOTICE:

Be careful of the direction of the transmission control shaft lever.



h.

Connect the shift lever position sensor connector.


Hide 33820B 2.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

NOTICE:

Before connecting the transmission control cable assembly, check that the shift lever is in N.


a.
C422182C01
0.677,1.688 0.896,1.896 0.219,0.208 10 true *a
*a N


Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.


b.

Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.


c.
C413828C01
0.354,2.104 0.625,2.333 0.271,0.229 10 false *a 1.771,2.104 2.01,2.302 0.24,0.198 10 false *b
*a Correct
*b Incorrect


Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.
