NETWORKING  CAN COMMUNICATION SYSTEM(for Gasoline Model)  U117087  Lost Communication with Brake System Control Module (ch2) Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
U117087 Lost Communication with Brake System Control Module (ch2) Missing Message Communication stops between the brake actuator assembly and the engine stop and start ECU.
·

CAN main/branch bus lines or connector

·

Brake actuator assembly

·

Engine stop and start ECU

·

ECM

·

No. 2 CAN junction connector


Brake/EPB B

WIRING DIAGRAM

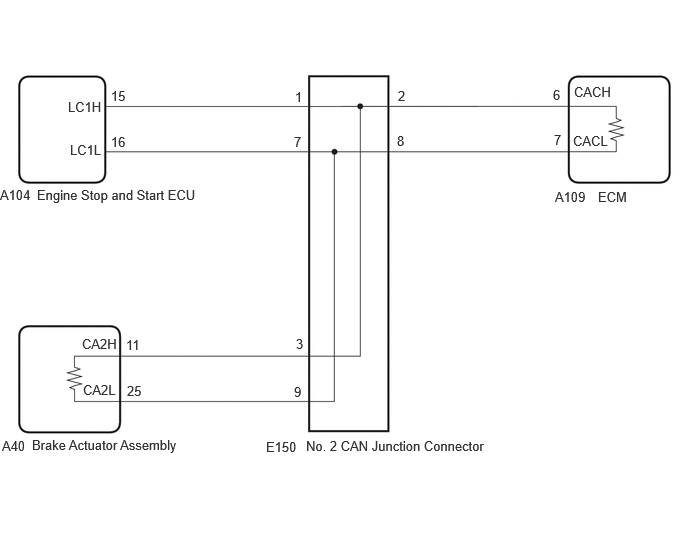

C471478E02
6.229,1.969 7.156,2.313 0.927,0.344 10 false ECM 5.781,1.969 6.156,2.198 0.375,0.229 10 false A109 3.188,4.563 5.219,5.146 2.031,0.583 10 false No. 2 CAN Junction Connector 2.771,4.573 3.354,4.875 0.583,0.302 10 false E150 5.979,0.875 6.469,1.083 0.49,0.208 10 false CACH 5.969,1.385 6.458,1.594 0.49,0.208 10 false CACL 5.76,0.906 6.135,1.135 0.375,0.229 10 false 6 5.771,1.375 6.146,1.604 0.375,0.229 10 false 7 3.073,0.927 3.448,1.156 0.375,0.229 10 false 1 4.135,1.385 4.51,1.615 0.375,0.229 10 false 8 4.146,0.917 4.521,1.146 0.375,0.229 10 false 2 3.063,1.396 3.438,1.625 0.375,0.229 10 false 7 0.385,1.948 2.344,2.292 1.958,0.344 10 false Engine Stop and Start ECU 0,1.948 0.375,2.177 0.375,0.229 10 false A104 0.708,1.031 1.198,1.24 0.49,0.208 10 false LC1H 0.729,1.479 1.219,1.688 0.49,0.208 10 false LC1L 1.156,0.917 1.531,1.146 0.375,0.229 10 false 15 1.156,1.396 1.531,1.625 0.375,0.229 10 false 16 0.333,4.552 2.75,5.281 2.417,0.729 10 false Brake Actuator Assembly 0.021,4.563 0.385,4.76 0.365,0.198 10 false A40 3.063,4 3.438,4.229 0.375,0.229 10 false 9 3.083,3.5 3.458,3.729 0.375,0.229 10 false 3 0.854,3.5 1.344,3.708 0.49,0.208 10 false CA2H 0.865,3.979 1.354,4.188 0.49,0.208 10 false CA2L 1.313,3.51 1.688,3.74 0.375,0.229 10 false 11 1.323,3.99 1.698,4.219 0.375,0.229 10 false 25

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN MAIN BUS LINES
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Measure the resistance according to the value(s) in the table below.

C469626C01
1.458,0.604 1.948,0.885 0.49,0.281 3.896,0.125 3.729,0.125 3.729,0.125 3.729,0.688 true 3.906,1.583 3.729,1.583 3.729,1.583 3.729,0.917 true 1.563,0.677 2.177,0.875 0.615,0.198 10 false E150 3.948,0.042 4.563,0.24 0.615,0.198 10 false CANH 3.958,1.51 4.573,1.708 0.615,0.198 10 false CANL 0.052,0.031 0.667,0.229 0.615,0.198 10 false *a
*a Component with harness connected
(No. 2 CAN Junction Connector) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-3 (CANH) - E150-9 (CANL) Cable disconnected from negative (-) battery terminal Below 70 Ω



Result:
Result
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS LINES

NG

25.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR)
2.CHECK FOR SHORT IN CAN BUS LINES
a.

Measure the resistance according to the value(s) in the table below.

C469626C01
1.458,0.604 1.948,0.885 0.49,0.281 3.896,0.125 3.729,0.125 3.729,0.125 3.729,0.688 true 3.906,1.583 3.729,1.583 3.729,1.583 3.729,0.917 true 1.563,0.677 2.177,0.875 0.615,0.198 10 false E150 3.948,0.042 4.563,0.24 0.615,0.198 10 false CANH 3.958,1.51 4.573,1.708 0.615,0.198 10 false CANL 0.052,0.031 0.667,0.229 0.615,0.198 10 false *a
*a Component with harness connected
(No. 2 CAN Junction Connector) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-3 (CANH) - E150-9 (CANL) Cable disconnected from negative (-) battery terminal 54 Ω or higher



Result:
Result
OK
NG



OK

3.CHECK FOR SHORT TO +B IN CAN BUS LINE

NG

19.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
3.CHECK FOR SHORT TO +B IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

C469624C01
0.208,0.646 0.688,0.885 0.479,0.24 3.854,0.76 4.333,1 0.479,0.24 2.458,0.156 2.281,0.156 2.281,0.156 2.281,0.688 true 2.469,1.583 2.292,1.583 2.292,1.583 2.292,0.917 true 6.646,1.583 6.479,1.583 6.479,1.583 6.479,1.167 true 0.292,0.677 0.906,0.875 0.615,0.198 10 false E150 2.5,0.073 3.115,0.271 0.615,0.198 10 false CANH 2.521,1.5 3.135,1.698 0.615,0.198 10 false CANL 6.708,1.51 7.115,1.76 0.406,0.25 10 false BAT 0.229,0.063 0.844,0.26 0.615,0.198 10 false *a 4.354,0.115 4.969,0.313 0.615,0.198 10 false *1 3.938,0.813 4.552,1.01 0.615,0.198 10 false E58
*1 DLC3 - -
*a Component with harness connected
(No. 2 CAN Junction Connector) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-3 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E150-9 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS LINE

NG

13.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
4.CHECK FOR SHORT TO GND IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

C469624C02
0.208,0.646 0.688,0.885 0.479,0.24 4.042,0.729 4.521,0.969 0.479,0.24 1.958,0.146 2.292,0.146 2.292,0.146 2.292,0.677 true 1.948,1.583 2.281,1.583 2.281,1.583 2.281,0.917 true 5.771,0.177 5.604,0.177 5.604,0.177 5.604,0.604 true 0.292,0.677 0.906,0.875 0.615,0.198 10 false E150 1.531,0.073 2.146,0.271 0.615,0.198 10 false CANH 1.542,1.51 2.156,1.708 0.615,0.198 10 false CANL 5.833,0.083 6.24,0.333 0.406,0.25 10 false CG 0.229,0.063 0.844,0.26 0.615,0.198 10 false *a 4.354,0.115 4.969,0.313 0.615,0.198 10 false *1 4.135,0.781 4.75,0.979 0.615,0.198 10 false E58
*1 DLC3 - -
*a Component with harness connected
(No. 2 CAN Junction Connector) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-3 (CANH) - E58-4 (CG) Cable disconnected from negative (-)battery terminal 200 Ω or higher
E150-9 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

5.CHECK FOR OPEN IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
5.CHECK FOR OPEN IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the E150 No. 2 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-1 (CANH) - E150-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

INSPECT FOR INTERMITTENT PROBLEMS

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

6.CHECK FOR OPEN IN CAN BUS LINES (ENGINE STOP AND START ECU)
6.CHECK FOR OPEN IN CAN BUS LINES (ENGINE STOP AND START ECU)
a.

Reconnect the E150 No. 2 CAN junction connector.


b.

Disconnect the A104 engine stop and start ECU connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A104)Location & Routing

Click Connector(A104)Instrument Panel>Engine Room Main Wire>Engine Stop and Start ECU

A104-15 (LC1H) - A104-16 (LC1L) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Result
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
a.

Disconnect the E150 No. 2 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-3 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E150-9 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)

NG

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-2 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E150-8 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-1 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E150-7 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
a.

Disconnect the A40 brake actuator assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-3 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E150-9 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A109 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-2 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E150-8 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ECM)

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A104 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-1 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E150-7 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

13.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
a.

Disconnect the E150 No. 2 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-3 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E150-9 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

14.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)

NG

16.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
14.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-2 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E150-8 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

15.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

17.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
15.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-1 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E150-7 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

18.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
16.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
a.

Disconnect the A40 brake actuator assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-3 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E150-9 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

17.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A109 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-2 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E150-8 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ECM)

18.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A104 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150,E58)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E150-1 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E150-7 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

19.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
a.

Disconnect the E150 No. 2 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-3 (CANH) - E150-9 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

20.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)

NG

22.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
20.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-2 (CANH) - E150-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

21.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

23.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
21.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-1 (CANH) - E150-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

24.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
22.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
a.

Disconnect the A40 brake actuator assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-3 (CANH) - E150-9 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

23.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A109 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-2 (CANH) - E150-8 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ECM)

24.CHECK FOR SHORT IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A104 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-1 (CANH) - E150-7 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

25.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR)
a.

Disconnect the E150 No. 2 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-3 (CANH) - E150-9 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

26.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)

NG

27.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
26.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E150)Location & Routing

Click Connector(E150)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 2 CAN Junction Connector

E150-2 (CANH) - E150-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION CONNECTOR

NG

28.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
27.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
a.

Reconnect the E150 No. 2 CAN junction connector.


b.

Disconnect the A40 brake actuator assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A40)Location & Routing

Click Connector(A40)Engine Compartment>Engine Room Main Wire / Transmission Wire>Brake Actuator Assembly

A40-11 (CA2H) - A40-25 (CA2L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

28.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR - ECM)
a.

Reconnect the E150 No. 2 CAN junction connector.


b.

Disconnect the A109 ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A109)Location & Routing

Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECM

A109-6 (CACH) - A109-7 (CACL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 CAN JUNCTION CONNECTOR - ECM)
