NETWORKING  CAN COMMUNICATION SYSTEM(for Gasoline Model)  Check Bus 2 Line


DESCRIPTION

Symptom Trouble Area
There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that display communication stop history on the "Detail" screen.
·

CAN main bus line, CAN branch line or connector

·

Central gateway ECU (network gateway ECU)

·

ECM

·

Engine stop and start ECU

·

No. 4 global CAN junction connector



WIRING DIAGRAM

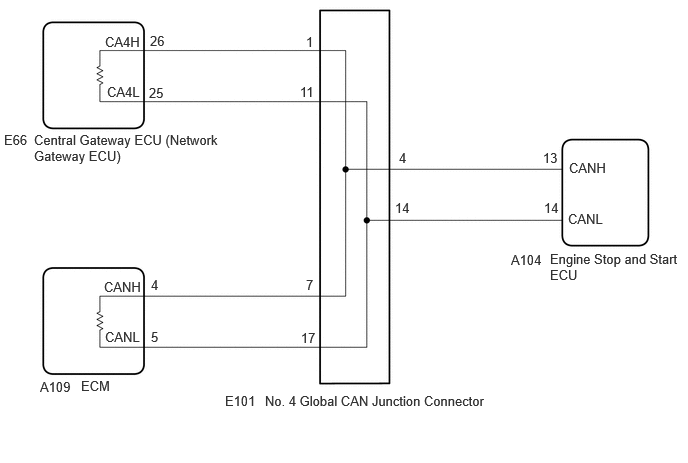

C499858E01
0.354,1.375 2.313,1.781 1.958,0.406 10 false Central Gateway ECU (Network Gateway ECU) 0.042,1.375 0.5,1.573 0.458,0.198 10 false E66 1.094,0.354 1.708,0.552 0.615,0.198 10 false CA4H 1.115,0.875 1.729,1.073 0.615,0.198 10 false CA4L 1.563,0.344 1.875,0.542 0.313,0.198 10 false 26 1.552,0.885 1.865,1.083 0.313,0.198 10 false 25 3.188,0.354 3.344,0.552 0.156,0.198 10 false 1 3.125,0.875 3.344,1.104 0.219,0.229 10 false 11 3.188,2.885 3.458,3.156 0.271,0.271 10 false 7 3.135,3.438 3.354,3.667 0.219,0.229 10 false 17 0.844,3.938 2.063,4.344 1.219,0.406 10 false ECM 0.417,3.948 0.875,4.146 0.458,0.198 10 false A109 1.083,2.906 1.698,3.104 0.615,0.198 10 false CANH 1.094,3.427 1.708,3.625 0.615,0.198 10 false CANL 2.76,4.094 5.323,4.5 2.563,0.406 10 false No. 4 Global CAN Junction Connector 2.344,4.094 2.802,4.292 0.458,0.198 10 false E101 1.573,2.885 1.927,3.135 0.354,0.25 10 false 4 1.573,3.427 1.958,3.708 0.385,0.281 10 false 5 4.115,2.083 4.333,2.313 0.219,0.229 10 false 14 4.156,1.563 4.375,1.792 0.219,0.229 10 false 4 5.667,2.083 5.885,2.313 0.219,0.229 10 false 14 5.656,1.563 5.875,1.792 0.219,0.229 10 false 13 5.729,2.615 7.115,3 1.385,0.385 10 false Engine Stop and Start ECU 5.323,2.625 5.781,2.823 0.458,0.198 10 false A104 5.927,1.667 6.542,1.865 0.615,0.198 10 false CANH 5.917,2.198 6.531,2.396 0.615,0.198 10 false CANL

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN MAIN BUS LINES
a.

Disconnect the cable from the negative (-) battery terminal.


b.

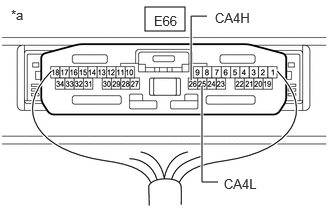

C425195C43
1.51,0.073 1.927,0.323 0.417,0.25 2.271,1.896 2.104,1.896 2.104,1.896 2.104,0.896 true 2.156,0.167 1.99,0.167 1.99,0.167 1.99,0.833 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.604,0.135 2.063,0.333 0.458,0.198 10 false E66 2.333,1.833 2.802,2.052 0.469,0.219 10 false CA4L 2.24,0.104 2.719,0.271 0.479,0.167 10 false CA4H
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E66)Location & Routing

Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECU

E66-26 (CA4H) - E66-25 (CA4L) Cable disconnected from negative (-) battery terminal Below 70 Ω



Result:
Result
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS LINES

NG

23.CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
2.CHECK FOR SHORT IN CAN BUS LINES
a.
C425195C43
1.51,0.073 1.927,0.323 0.417,0.25 2.271,1.896 2.104,1.896 2.104,1.896 2.104,0.896 true 2.156,0.167 1.99,0.167 1.99,0.167 1.99,0.833 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.604,0.135 2.063,0.333 0.458,0.198 10 false E66 2.333,1.833 2.802,2.052 0.469,0.219 10 false CA4L 2.24,0.104 2.719,0.271 0.479,0.167 10 false CA4H
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E66)Location & Routing

Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECU

E66-26 (CA4H) - E66-25 (CA4L) Cable disconnected from negative (-) battery terminal 54 Ω or higher



Result:
Result
OK
NG



OK

3.CHECK FOR SHORT TO +B IN CAN BUS LINE

NG

17.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
3.CHECK FOR SHORT TO +B IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

C430911C18
1.844,0.198 2.313,0.448 0.469,0.25 5.313,0.292 5.729,0.563 0.417,0.271 2.385,1.25 2.385,0.583 2.385,0.583 2.552,0.583 true 6.458,2.115 6.292,2.115 6.292,2.115 6.292,1.635 true 2.479,1.313 2.479,2.313 2.479,2.313 2.646,2.313 true 3.958,0.354 4.271,0.552 0.313,0.198 10 false *1 1.958,0.25 2.354,0.448 0.396,0.198 10 false E66 2.729,2.229 3.281,2.427 0.552,0.198 10 false CA4L 6.531,2.031 7.083,2.229 0.552,0.198 10 false BAT 2.635,0.5 3.188,0.698 0.552,0.198 10 false CA4H 5.385,0.344 5.698,0.542 0.313,0.198 10 false E58 0.094,0.063 0.406,0.26 0.313,0.198 10 false *a
*1 DLC3 - -
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E66,E58)Location & Routing

Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECU

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E66-26 (CA4H) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E66-25 (CA4L) - E58-16 (BAT)



Result:
Result
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS LINE

NG

11.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
4.CHECK FOR SHORT TO GND IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

C430911C19
1.844,0.198 2.313,0.448 0.469,0.25 5.333,0.167 5.75,0.438 0.417,0.271 2.385,1.25 2.385,0.583 2.385,0.583 2.552,0.583 true 5.26,0.552 5.427,0.552 5.427,0.552 5.427,1.052 true 2.479,1.313 2.479,2.313 2.479,2.313 2.646,2.313 true 3.958,0.354 4.271,0.552 0.313,0.198 10 false *1 1.958,0.25 2.354,0.448 0.396,0.198 10 false E66 2.729,2.229 3.281,2.427 0.552,0.198 10 false CA4L 5.01,0.479 5.563,0.677 0.552,0.198 10 false CG 2.635,0.5 3.188,0.698 0.552,0.198 10 false CA4H 5.417,0.208 5.729,0.406 0.313,0.198 10 false E58 0.094,0.063 0.406,0.26 0.313,0.198 10 false *a
*1 DLC3 - -
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E66,E58)Location & Routing

Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECU

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E66-26 (CA4H) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E66-25 (CA4L) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

5.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
5.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the E101 No. 4 global CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-1 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E101-11 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)

NG

8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-7 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E101-17 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-4 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E101-14 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 4 GLOBAL CAN JUNCTION CONNECTOR

NG

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the E66 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-1 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E101-11 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A109 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-7 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E101-17 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A104 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-4 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
E101-14 (CANL) - E58-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

11.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the E101 No. 4 global CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-1 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E101-11 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

12.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)

NG

14.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
12.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-7 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E101-17 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

13.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

15.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
13.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-4 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E101-14 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 4 GLOBAL CAN JUNCTION CONNECTOR

NG

16.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
14.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the E66 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-1 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E101-11 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

15.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A109 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-7 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E101-17 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)

16.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A104 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101,E58)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3

E101-4 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
E101-14 (CANL) - E58-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

17.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the E101 No. 4 global CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-1 (CANH) - E101-11 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

18.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)

NG

20.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
18.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-7 (CANH) - E101-17 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

19.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

NG

21.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
19.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-4 (CANH) - E101-14 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

REPLACE NO. 4 GLOBAL CAN JUNCTION CONNECTOR

NG

22.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
20.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the E66 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-1 (CANH) - E101-11 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

21.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A109 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-7 (CANH) - E101-17 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)

22.CHECK FOR SHORT IN CAN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
a.

Disconnect the A104 engine stop and start ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-4 (CANH) - E101-14 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

23.CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the E66 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E66)Location & Routing

Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECU

E66-26 (CA4H) - E66-25 (CA4L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

24.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
24.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Reconnect the E66 central gateway ECU (network gateway ECU) connector.


b.

Disconnect the E101 No. 4 global CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-1 (CANH) - E101-11 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

25.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

25.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 4 GLOBAL CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E101)Location & Routing

Click Connector(E101)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 4 Global CAN Junction Connector

E101-7 (CANH) - E101-17 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 4 GLOBAL CAN JUNCTION CONNECTOR

NG

26.CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
26.CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
a.

Reconnect the E101 No. 4 global CAN junction connector.


b.

Disconnect the A109 ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(A109)Location & Routing

Click Connector(A109)Engine Compartment>Engine Room Main Wire / Transmission Wire>ECM

A109-4 (CANH) - A109-5 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - NO. 4 GLOBAL CAN JUNCTION CONNECTOR)
