SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY(for Manual Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 73230 1.INSTALL FRONT SEAT INNER BELT ASSEMBLY

a.
B585693C01
0,0 0,0 false
V113147

Install in this Direction

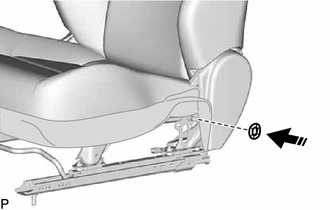

Install the front seat belt anchor plate as shown in the illustration.


b.
B585694C01
0,0 0,0 false
V100155

Protruding Part

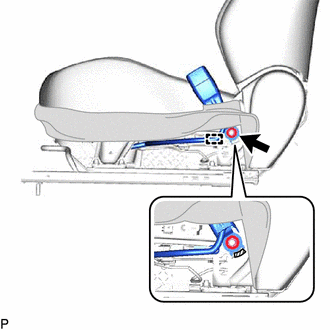

Install the front seat inner belt assembly with the nut.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the separate type front seat cushion spring assembly.



c.

Engage each clamp.


d.

Connect the connector under the front seat assembly.
