STOP AND START BACKUP BOOST CONVERTER INSTALLATION

PROCEDURE

Hide Display F1334 1.INSTALL NO. 1 CONVERTER CONTROL BRACKET

Install the No. 1 converter control bracket to the eco run vehicle converter assembly with the 2 bolts.

Torque:: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

Hide Display G92C0A 2.INSTALL ECO RUN VEHICLE CONVERTER ASSEMBLY

1.958,0.76 2.115,0.958 0.156,0.198 10 true A 1.99,1.146 2.146,1.344 0.156,0.198 10 true B

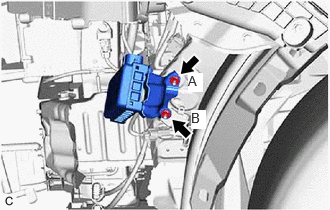

Install the eco run vehicle converter assembly with the bolt and nut.

Torque:: Nut A : 3.5 N*m (36 kgf*cm, 31 in.*lbf); Nut B : 10 N*m (102 kgf*cm, 7 ft.*lbf)

1.24,1.188 1.333,1.354 1.333,1.354 1.49,1.354 false 2.604,0.229 2.729,0.229 2.729,0.229 2.792,0.375 false 1.5,1.26 1.813,1.417 0.313,0.156 10 false *a 2.448,0.135 2.76,0.292 0.313,0.156 10 false *a

*a	Lock Lever

Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock the connector.

Hide Display 3.INSTALL FRONT BUMPER ASSEMBLY

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>INSTALLATION202203,202303,_59,_111849,_0524334,RM1000000022092,202303,999999,_59,_111849,_0524334,RM100000002AYND,

for SFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for SFTM Made)>INSTALLATION202111,202303,_59,_111849,_0500095,RM100000001Z1C4,202303,999999,_59,_111849,_0500095,RM100000002AYNL,

Hide Display 4.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503321,RM100000001ZE56_01_0015,

Hide Display 5.PERFORM INITIALIZATION

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE202203,202303,_V1,_111780,_0504977,RM1000000022CKZ,202303,202406,_V1,_111780,_0504977,RM100000002AA1Y,202406,202409,_V1,_111780,_0504977,RM100000002MO96,202409,999999,_V1,_111780,_0504977,RM100000002OMBP,

Hide Display 6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE202203,202406,_V1,_111780,_0504976,RM1000000022CKY,202406,999999,_V1,_111780,_0504976,RM100000002MNUE,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202111,999999,_V1,_111780,_0504976,RM100000001ZKRU,
