RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0524334 FRONT BUMPER(for GTMC Made) A

EXTERIOR PANELS / TRIM  FRONT BUMPER(for GTMC Made)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

for Target Adjustment (Triangle Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(TRIANGLE TARGET)

for Target Adjustment (Flat Surface Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(FLAT SURFACE TARGET)

for Driving Adjustment:

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>DRIVING ADJUSTMENT

·

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>CALIBRATION



PROCEDURE

Hide 1.INSTALL FRONT BUMPER ASSEMBLY

a.

Move the front bumper assembly into position.


b.

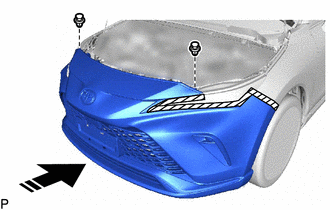

B646696C01
0,0 0,0 false
V113147

Install in this Direction


Temporarily install the front bumper assembly with the 2 clips as shown in the illustration.


c.

Install the 4 bolts.


d.

Pull back the side of the front bumper assembly, connect the 2 connectors.

NOTICE:

Do not apply excessive force when pulling back the front bumper assembly.



e.

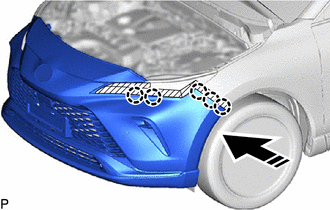

B646697C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 5 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



f.

Install the 8 screws.


g.

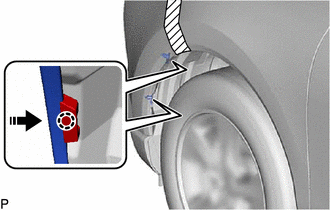

B604889C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



h.

Install the front bumper assembly with the 2 clips.
