PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Front)  INSTALLATION

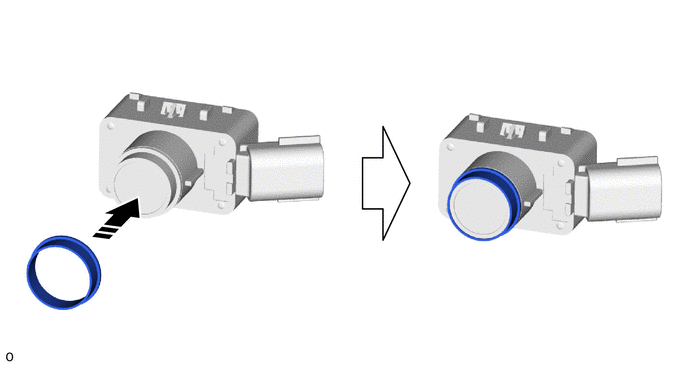

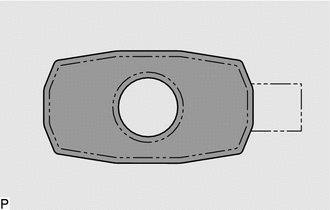

Install the ultrasonic sensor cushion set as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

0,0 0,0 false

Install in this Direction

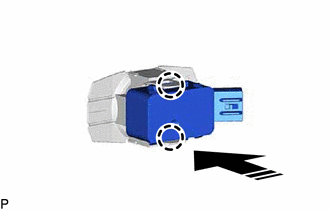

Engage the 2 claws to install the front corner ultrasonic sensor to a new front corner ultrasonic sensor retainer as shown in the illustration.

1.542,0.865 1.729,1.042 0.188,0.177 10 true *a

*a	20 mm (0.7874 in.)

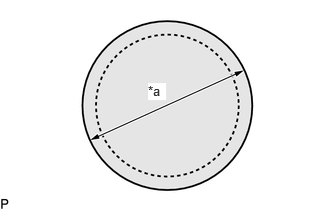

Cover the sensor installation hole with a 20 mm (0.7874 in.) circular piece of tape.

0,0 0,0 false

Primer

Using a brush or felt, apply primer or equivalent to the front corner ultrasonic sensor retainer installation area.

NOTICE:

·

Use a clean brush or felt.

·

Do not touch the front bumper assembly until the primer has dried.

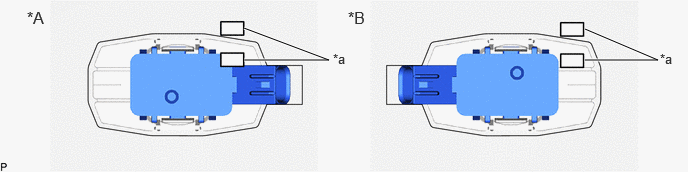

Check that the identification codes on the front bumper assembly and the front corner ultrasonic sensor retainer are identical.

2.542,0.625 3.427,0.625 3.427,0.625 2.542,0.292 true 6.094,0.625 6.854,0.625 6.854,0.625 6.094,0.302 true 0.281,0.083 0.615,0.333 0.333,0.25 12 false *A 3.625,0.083 3.958,0.333 0.333,0.25 12 false *B 3.469,0.531 3.781,0.688 0.313,0.156 10 false *a 6.875,0.531 7.146,0.688 0.271,0.156 10 false *a

*A	for LH Side	*B	for RH Side
*a	Identification Code	-	-

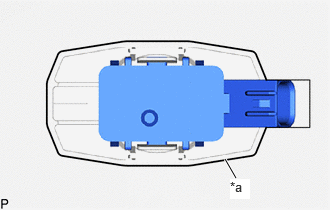

2.458,1.854 2.344,1.656 true 2.396,1.865 2.604,2.073 0.208,0.208 10 true *a

*a	Scribed Line

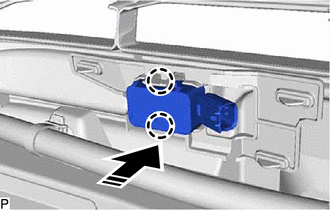

Align the front corner ultrasonic sensor retainer with front corner ultrasonic sensor with the mark on the front bumper assembly and install it as shown in the illustration.

NOTICE:

·

Ensure that the sensor tip is correctly inserted into the sensor installation hole of the front bumper assembly.

·

Ensure that the front corner ultrasonic sensor retainer is within the scribed line.

·

The double-sided tape of a front corner ultrasonic sensor retainer will deteriorate if it is detached. Make sure to replace the front corner ultrasonic sensor retainer with a new one when reattachment is necessary.

HINT:

Press with a force of 30 N (3.0 kgf) for 3 seconds to securely install the front corner ultrasonic sensor retainer to the front bumper assembly. Confirm there is no clearance between the front corner ultrasonic sensor retainer and front bumper assembly.

When replacing only the front corner ultrasonic sensor:

i.

0,0 0,0 false

Install in this Direction

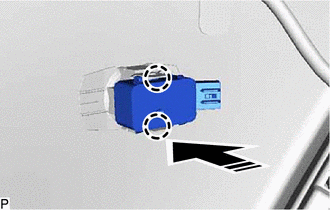

Engage the 2 claws to install the front corner ultrasonic sensor as shown in the illustration.

0,0 0,0 false

Install in this Direction

Engage the 2 claws to install the front center ultrasonic sensor as shown in the illustration.
