RM38N0EC _58 Vehicle Interior _111839 SEAT _0505694 FRONT POWER SEAT CONTROL SYSTEM(w/ Memory) C

SEAT FRONT POWER SEAT CONTROL SYSTEM(w/ Memory) B2658 Short in Sensor with Motor Power Supply Circuit

DESCRIPTION

This DTC is stored when a power seat motor operates (a position control sensor is being supplied with power) and the power supply voltage does not rise to the specified value.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area
B2658	Short in Sensor with Motor Power Supply Circuit	Problem with the voltage supplied to the position control sensor.	· Position control ECU assembly · Slide motor (front seat adjuster assembly LH) · Front vertical motor (front seat adjuster assembly LH) · Lifter motor (front seat adjuster assembly LH) · Reclining motor (front seat back frame sub-assembly LH) · Wire harness or connector

WIRING DIAGRAM

for SFTM Made

5.458,0.656 6.073,0.854 0.615,0.198 10 false SSRS 5.448,1.833 6.063,2.031 0.615,0.198 10 false SSFV 5.458,3.01 6.073,3.208 0.615,0.198 10 false SSRL 5.458,5.052 6.073,5.25 0.615,0.198 10 false HALL+ 2.188,0.563 2.344,0.76 0.156,0.198 10 false 6 3.167,0.552 3.323,0.75 0.156,0.198 10 false 5 2.188,1.729 2.344,1.927 0.156,0.198 10 false 2 3.167,1.729 3.323,1.927 0.156,0.198 10 false 4 2.406,1.063 2.865,1.26 0.458,0.198 10 false U25 1.156,3.281 1.615,3.479 0.458,0.198 10 false U32 5.188,0.552 5.5,0.75 0.313,0.198 10 false 26 3.167,2.896 3.323,3.094 0.156,0.198 10 false 4 2.188,2.906 2.344,3.104 0.156,0.198 10 false 2 5.198,1.729 5.51,1.927 0.313,0.198 10 false 10 5.208,2.906 5.521,3.104 0.313,0.198 10 false 25 2.417,1.208 4.104,1.406 1.688,0.198 10 false Slide Motor 1.104,2.26 4.917,2.479 3.813,0.219 10 false Front Vertical Motor (Front Seat Adjuster Assembly LH) 1.156,3.427 4.385,3.635 3.229,0.208 10 false Lifter Motor (Front Seat Adjuster Assembly LH) 3.156,4.948 3.313,5.146 0.156,0.198 10 false 4 2.188,4.958 2.344,5.156 0.156,0.198 10 false 2 2.281,5.458 2.74,5.656 0.458,0.198 10 false V12 2.281,5.635 4.573,5.833 2.292,0.198 10 false Reclining Motor 1.49,5.979 6.99,6.177 5.5,0.198 10 false Front Seat Back Frame Sub-assembly LH 5.188,4.948 5.5,5.146 0.313,0.198 10 false 11 5.188,6.458 5.5,6.656 0.313,0.198 10 false 12 4.917,6.885 5.771,7.135 0.854,0.25 10 false U35 4.917,7.052 7.156,7.302 2.24,0.25 10 false Position Control ECU Assembly 1.094,2.115 1.552,2.313 0.458,0.198 10 false U42 5.458,6.573 6.073,6.771 0.615,0.198 10 false SGND 1.802,4 6.542,4.198 4.74,0.198 10 false Front Seat Adjuster Assembly LH

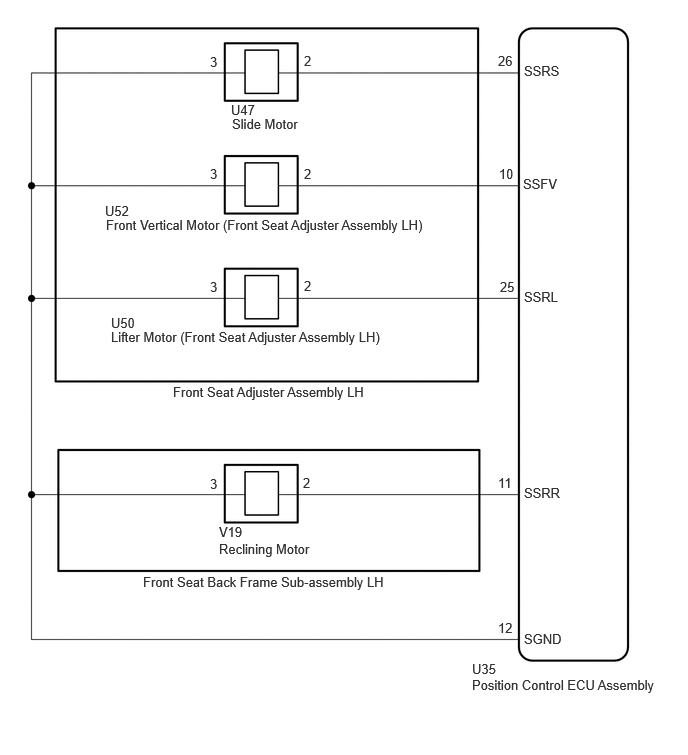

for GTMC Made

5.458,0.656 6.073,0.854 0.615,0.198 10 false SSRS 5.448,1.833 6.063,2.031 0.615,0.198 10 false SSFV 5.458,3.01 6.073,3.208 0.615,0.198 10 false SSRL 5.458,5.052 6.073,5.25 0.615,0.198 10 false SSRR 2.188,0.563 2.344,0.76 0.156,0.198 10 false 3 3.167,0.552 3.323,0.75 0.156,0.198 10 false 2 2.188,1.729 2.344,1.927 0.156,0.198 10 false 3 3.167,1.729 3.323,1.927 0.156,0.198 10 false 2 2.406,1.063 2.865,1.26 0.458,0.198 10 false U47 1.156,3.281 1.615,3.479 0.458,0.198 10 false U50 5.188,0.552 5.5,0.75 0.313,0.198 10 false 26 3.167,2.896 3.323,3.094 0.156,0.198 10 false 2 2.188,2.906 2.344,3.104 0.156,0.198 10 false 3 5.198,1.729 5.51,1.927 0.313,0.198 10 false 10 5.208,2.906 5.521,3.104 0.313,0.198 10 false 25 2.417,1.208 4.104,1.406 1.688,0.198 10 false Slide Motor 1.104,2.26 4.917,2.479 3.813,0.219 10 false Front Vertical Motor (Front Seat Adjuster Assembly LH) 1.156,3.427 4.385,3.635 3.229,0.208 10 false Lifter Motor (Front Seat Adjuster Assembly LH) 3.156,4.948 3.313,5.146 0.156,0.198 10 false 2 2.188,4.958 2.344,5.156 0.156,0.198 10 false 3 2.281,5.458 2.74,5.656 0.458,0.198 10 false V19 2.281,5.635 4.573,5.833 2.292,0.198 10 false Reclining Motor 1.49,5.979 6.99,6.177 5.5,0.198 10 false Front Seat Back Frame Sub-assembly LH 5.188,4.948 5.5,5.146 0.313,0.198 10 false 11 5.188,6.458 5.5,6.656 0.313,0.198 10 false 12 4.917,6.885 5.771,7.135 0.854,0.25 10 false U35 4.917,7.052 7.156,7.302 2.24,0.25 10 false Position Control ECU Assembly 1.094,2.115 1.552,2.313 0.458,0.198 10 false U52 5.458,6.573 6.073,6.771 0.615,0.198 10 false SGND 1.802,4 6.542,4.198 4.74,0.198 10 false Front Seat Adjuster Assembly LH

PROCEDURE

1.CLEAR DTC

Clear the DTCs.

Body Electrical > Driver Seat > Clear DTCs: 50002 162

Result:

Proceed to
NEXT

2.CHECK FOR DTC

Check for DTCs.

Body Electrical > Driver Seat > Trouble Codes: 50001 162

Result:

Result	Proceed to
Only B2658 is output	A
B2650 and B2658 are output	B
B2651 and B2658 are output	C
B2652 and B2658 are output	D
B2653 and B2658 are output	E

3.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - SLIDE MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH))

GO TO FRONT POWER SEAT CONTROL SYSTEM (B2650)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (w/ Memory)>B2650202203,999999,_58,_111839,_0505694,RM1000000022KVZ,B2650

GO TO FRONT POWER SEAT CONTROL SYSTEM (B2651)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (w/ Memory)>B2651202203,999999,_58,_111839,_0505694,RM1000000022KW1,B2651

GO TO FRONT POWER SEAT CONTROL SYSTEM (B2652)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (w/ Memory)>B2652202203,999999,_58,_111839,_0505694,RM1000000022KW2,B2652

GO TO FRONT POWER SEAT CONTROL SYSTEM (B2653)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (w/ Memory)>B2653202203,999999,_58,_111839,_0505694,RM1000000022KW3,B2653

3.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - SLIDE MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH))

Disconnect the U35 position control ECU assembly connector.

Disconnect the U25*1 or U47*2 slide motor (front seat adjuster assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,U25)Location & Routingewd_type=routing;type=c,c;code=U35,U25 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=26,12 Click Connector(U25)Seat>Front Seat Wire RH / Front Seat Wire LH>Slide Motor (Front Seat Adjuster Assembly LH)ewd_type=component;type=c;code=U25;pinno=5,6
U35-26 (SSRS) - U25-5	Always	Below 1 Ω
U35-26 (SSRS) or U25-5 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - U25-6	Always	Below 1 Ω
U35-12 (SGND) or U25-6 - Body ground	Always	10 kΩ or higher

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,U47)Location & Routingewd_type=routing;type=c,c;code=U35,U47 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=26,12 Click Connector(U47)Seat>Front Seat Wire RH / Front Seat Wire LH>Slide Motor (Front Seat Adjuster Assembly LH)ewd_type=component;type=c;code=U47;pinno=2,3
U35-26 (SSRS) - U47-2	Always	Below 1 Ω
U35-26 (SSRS) or U47-2 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - U47-3	Always	Below 1 Ω
U35-12 (SGND) or U47-3 - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

4.CHECK POSITION CONTROL ECU ASSEMBLY (SLIDE MOTOR CIRCUIT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK POSITION CONTROL ECU ASSEMBLY (SLIDE MOTOR CIRCUIT)

Reconnect the U35 position control ECU assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U25)Location & Routingewd_type=routing;type=c;code=U25 Click Connector(U25)Seat>Front Seat Wire RH / Front Seat Wire LH>Slide Motor (Front Seat Adjuster Assembly LH)ewd_type=component;type=c;code=U25;pinno=5,6
U25-5 - U25-6	Slide switch on	4.8 to 5.1 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U47)Location & Routingewd_type=routing;type=c;code=U47 Click Connector(U47)Seat>Front Seat Wire RH / Front Seat Wire LH>Slide Motor (Front Seat Adjuster Assembly LH)ewd_type=component;type=c;code=U47;pinno=2,3
U47-2 - U47-3	Slide switch on	4.8 to 5.1 V

Result:

Proceed to
OK
NG

5.CHECK SLIDE MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

REPLACE POSITION CONTROL ECU ASSEMBLY

for SFTM Made: Click hereVehicle Interior>SEAT>POWER SEAT CONTROL ECU (for SFTM Made)>REMOVAL202203,202303,_58,_111839,_0500782,RM1000000022EHU,202303,202406,_58,_111839,_0500782,RM100000002B4Y0,202406,999999,_58,_111839,_0500782,RM100000002MQQP,

for GTMC Made: Click hereVehicle Interior>SEAT>POWER SEAT CONTROL ECU (for GTMC Made)>REMOVAL202203,202303,_58,_111839,_0525817,RM10000000229H8,202303,202406,_58,_111839,_0525817,RM100000002B4XZ,202406,999999,_58,_111839,_0525817,RM100000002MQQR,

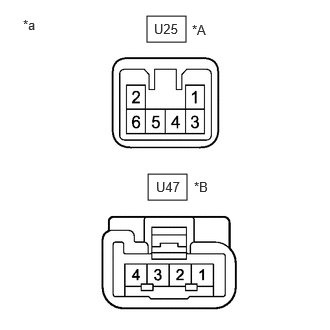

5.CHECK SLIDE MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

1.531,0.167 1.938,0.438 0.406,0.271 1.542,1.813 1.948,2.083 0.406,0.271 1.625,1.865 2.083,2.063 0.458,0.198 10 false U47 1.604,0.219 2.063,0.417 0.458,0.198 10 false U25 0.24,0.177 0.698,0.375 0.458,0.198 10 false *a 2,0.229 2.458,0.427 0.458,0.198 10 false *A 2.021,1.865 2.479,2.063 0.458,0.198 10 false *B

*A	for SFTM Made
*B	for GTMC Made
*a	Component with harness connected (Slide Motor (Front Seat Adjuster Assembly LH))

Reconnect the U25*1 or U47*2 slide motor (front seat adjuster assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U25)Location & Routingewd_type=routing;type=c;code=U25 Click Connector(U25)Seat>Front Seat Wire RH / Front Seat Wire LH>Slide Motor (Front Seat Adjuster Assembly LH)ewd_type=component;type=c;code=U25;pinno=5
U25-5 - Body ground	Slide motor operating	4.5 to 4.8 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U47)Location & Routingewd_type=routing;type=c;code=U47 Click Connector(U47)Seat>Front Seat Wire RH / Front Seat Wire LH>Slide Motor (Front Seat Adjuster Assembly LH)ewd_type=component;type=c;code=U47;pinno=2
U47-2 - Body ground	Slide motor operating	4.5 to 4.8 V

Result:

Proceed to
OK
NG

6.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - FRONT VERTICAL MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH))

REPLACE SLIDE MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>DISASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EH,

for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>DISASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GJ,

6.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - FRONT VERTICAL MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH))

Disconnect the U35 position control ECU assembly connector.

Disconnect the U42*1 or U52*2 front vertical motor (front seat adjuster assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,U42)Location & Routingewd_type=routing;type=c,c;code=U35,U42 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=10,12 Click Connector(U42)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Tilt Motor Assembly LHewd_type=component;type=c;code=U42;pinno=4,2
U35-10 (SSFV) - U42-4	Always	Below 1 Ω
U35-10 (SSFV) or U42-4 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - U42-2	Always	Below 1 Ω
U35-12 (SGND) or U42-2 - Body ground	Always	10 kΩ or higher

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,U52)Location & Routingewd_type=routing;type=c,c;code=U35,U52 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=10,12 Click Connector(U52)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Tilt Motor Assembly LHewd_type=component;type=c;code=U52;pinno=2,3
U35-10 (SSFV) - U52-2	Always	Below 1 Ω
U35-10 (SSFV) or U52-2 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - U52-3	Always	Below 1 Ω
U35-12 (SGND) or U52-3 - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

7.CHECK POSITION CONTROL ECU ASSEMBLY (FRONT VERTICAL MOTOR CIRCUIT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK POSITION CONTROL ECU ASSEMBLY (FRONT VERTICAL MOTOR CIRCUIT)

Reconnect the U35 position control ECU assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U42)Location & Routingewd_type=routing;type=c;code=U42 Click Connector(U42)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Tilt Motor Assembly LHewd_type=component;type=c;code=U42;pinno=4,2
U42-4 - U42-2	Front vertical switch on	4.8 to 5.1 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U52)Location & Routingewd_type=routing;type=c;code=U52 Click Connector(U52)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Tilt Motor Assembly LHewd_type=component;type=c;code=U52;pinno=2,3
U52-2 - U52-3	Front vertical switch on	4.8 to 5.1 V

Result:

Proceed to
OK
NG

8.CHECK FRONT VERTICAL MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

REPLACE POSITION CONTROL ECU ASSEMBLY

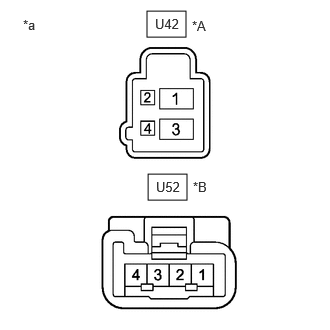

8.CHECK FRONT VERTICAL MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

1.531,0.115 1.938,0.385 0.406,0.271 1.542,1.813 1.948,2.083 0.406,0.271 1.625,1.865 2.083,2.063 0.458,0.198 10 false U52 1.615,0.167 2.073,0.365 0.458,0.198 10 false U42 0.24,0.177 0.698,0.375 0.458,0.198 10 false *a 2,0.188 2.458,0.385 0.458,0.198 10 false *A 2.01,1.865 2.469,2.063 0.458,0.198 10 false *B

*A	for SFTM Made
*B	for GTMC Made
*a	Component with harness connected (Front Vertical Motor (Front Seat Adjuster Assembly LH))

Reconnect the U42*1 or U52*2 front vertical motor (front seat adjuster assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U42)Location & Routingewd_type=routing;type=c;code=U42 Click Connector(U42)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Tilt Motor Assembly LHewd_type=component;type=c;code=U42;pinno=4
U42-4 - Body ground	Front vertical motor operating	4.5 to 4.8 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U52)Location & Routingewd_type=routing;type=c;code=U52 Click Connector(U52)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Tilt Motor Assembly LHewd_type=component;type=c;code=U52;pinno=2
U52-2 - Body ground	Front vertical motor operating	4.5 to 4.8 V

Result:

Proceed to
OK
NG

9.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - LIFTER MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH))

REPLACE FRONT VERTICAL MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>DISASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EH,

for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>DISASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GJ,

9.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - LIFTER MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH))

Disconnect the U35 position control ECU assembly connector.

Disconnect the U32*1 or U50*2 lifter motor (front seat adjuster assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,U32)Location & Routingewd_type=routing;type=c,c;code=U35,U32 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=25,12 Click Connector(U32)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Lifter Motor Assembly LHewd_type=component;type=c;code=U32;pinno=4,2
U35-25 (SSRL) - U32-4	Always	Below 1 Ω
U35-25 (SSRL) or U32-4 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - U32-2	Always	Below 1 Ω
U35-12 (SGND) or U32-2 - Body ground	Always	10 kΩ or higher

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,U50)Location & Routingewd_type=routing;type=c,c;code=U35,U50 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=25,12 Click Connector(U50)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Lifter Motor Assembly LHewd_type=component;type=c;code=U50;pinno=2,3
U35-25 (SSRL) - U50-2	Always	Below 1 Ω
U35-25 (SSRL) or U50-2 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - U50-3	Always	Below 1 Ω
U35-12 (SGND) or U50-3 - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

10.CHECK POSITION CONTROL ECU ASSEMBLY (LIFTER MOTOR CIRCUIT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.CHECK POSITION CONTROL ECU ASSEMBLY (LIFTER MOTOR CIRCUIT)

Reconnect the U35 position control ECU assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U32)Location & Routingewd_type=routing;type=c;code=U32 Click Connector(U32)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Lifter Motor Assembly LHewd_type=component;type=c;code=U32;pinno=4,2
U32-4 - U32-2	Lifter switch on	4.8 to 5.1 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U50)Location & Routingewd_type=routing;type=c;code=U50 Click Connector(U50)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Lifter Motor Assembly LHewd_type=component;type=c;code=U50;pinno=2,3
U50-2 - U50-3	Lifter switch on	4.8 to 5.1 V

Result:

Proceed to
OK
NG

11.CHECK LIFTER MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

REPLACE POSITION CONTROL ECU ASSEMBLY

11.CHECK LIFTER MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

1.531,0.125 1.938,0.396 0.406,0.271 1.542,1.813 1.948,2.083 0.406,0.271 1.625,1.865 2.083,2.063 0.458,0.198 10 false U50 1.615,0.188 2.073,0.385 0.458,0.198 10 false U32 0.24,0.177 0.698,0.375 0.458,0.198 10 false *a 2,0.188 2.458,0.385 0.458,0.198 10 false *A 2.01,1.865 2.469,2.063 0.458,0.198 10 false *B

*A	for SFTM Made
*B	for GTMC Made
*a	Component with harness connected (Lifter Motor (Front Seat Adjuster Assembly LH))

Reconnect the U32*1 or U50*2 lifter motor (front seat adjuster assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U32)Location & Routingewd_type=routing;type=c;code=U32 Click Connector(U32)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Lifter Motor Assembly LHewd_type=component;type=c;code=U32;pinno=4
U32-4 - Body ground	Lifter motor operating	4.5 to 4.8 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U50)Location & Routingewd_type=routing;type=c;code=U50 Click Connector(U50)Seat>Front Seat Wire RH / Front Seat Wire LH>Power Seat Lifter Motor Assembly LHewd_type=component;type=c;code=U50;pinno=2
U50-2 - Body ground	Lifter motor operating	4.5 to 4.8 V

Result:

Proceed to
OK
NG

12.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - RECLINING MOTOR (FRONT SEAT BACK FRAME SUB-ASSEMBLY LH))

REPLACE LIFTER MOTOR (FRONT SEAT ADJUSTER ASSEMBLY LH)

for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>DISASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EH,

for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>DISASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GJ,

12.CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU ASSEMBLY - RECLINING MOTOR (FRONT SEAT BACK FRAME SUB-ASSEMBLY LH))

Disconnect the U35 position control ECU assembly connector.

Disconnect the V12*1 or V19*2 reclining motor (front seat back frame sub-assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,V12)Location & Routingewd_type=routing;type=c,c;code=U35,V12 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=11,12 Click Connector(V12)Seat>No. 2 Front Seat Wire RH / No. 2 Front Seat Wire LH>Reclining Motor (Front Seatback Frame Sub-Assembly LH)ewd_type=component;type=c;code=V12;pinno=4,2
U35-11 (HALL+) - V12-4	Always	Below 1 Ω
U35-11 (HALL+) or V12-4 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - V12-2	Always	Below 1 Ω
U35-12 (SGND) or V12-2 - Body ground	Always	10 kΩ or higher

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(U35,V19)Location & Routingewd_type=routing;type=c,c;code=U35,V19 Click Connector(U35)Seat>Front Seat Wire RH / Front Seat Wire LH>Position Control ECU Assembly LHewd_type=component;type=c;code=U35;pinno=11,12 Click Connector(V19)Seat>No. 2 Front Seat Wire RH / No. 2 Front Seat Wire LH>Reclining Motor (Front Seatback Frame Sub-Assembly LH)ewd_type=component;type=c;code=V19;pinno=2,3
U35-11 (SSRR) - V19-2	Always	Below 1 Ω
U35-11 (SSRR) or V19-2 - Body ground	Always	10 kΩ or higher
U35-12 (SGND) - V19-3	Always	Below 1 Ω
U35-12 (SGND) or V19-3 - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

13.CHECK POSITION CONTROL ECU ASSEMBLY (RECLINING MOTOR CIRCUIT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.CHECK POSITION CONTROL ECU ASSEMBLY (RECLINING MOTOR CIRCUIT)

Reconnect the U35 position control ECU assembly connector.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(V12)Location & Routingewd_type=routing;type=c;code=V12 Click Connector(V12)Seat>No. 2 Front Seat Wire RH / No. 2 Front Seat Wire LH>Reclining Motor (Front Seatback Frame Sub-Assembly LH)ewd_type=component;type=c;code=V12;pinno=4,2
V12-4 - V12-2	Reclining switch on	4.8 to 5.1 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(V19)Location & Routingewd_type=routing;type=c;code=V19 Click Connector(V19)Seat>No. 2 Front Seat Wire RH / No. 2 Front Seat Wire LH>Reclining Motor (Front Seatback Frame Sub-Assembly LH)ewd_type=component;type=c;code=V19;pinno=2,3
V19-2 - V19-3	Reclining switch on	4.8 to 5.1 V

Result:

Proceed to
OK
NG

14.CHECK RECLINING MOTOR (FRONT SEAT BACK FRAME SUB-ASSEMBLY LH)

REPLACE POSITION CONTROL ECU ASSEMBLY

14.CHECK RECLINING MOTOR (FRONT SEAT BACK FRAME SUB-ASSEMBLY LH)

1.531,0.125 1.938,0.396 0.406,0.271 1.542,1.813 1.948,2.083 0.406,0.271 1.625,1.865 2.083,2.063 0.458,0.198 10 false V19 1.615,0.177 2.073,0.375 0.458,0.198 10 false V12 0.24,0.177 0.698,0.375 0.458,0.198 10 false *a 2,0.188 2.458,0.385 0.458,0.198 10 false *A 2.01,1.865 2.469,2.063 0.458,0.198 10 false *B

*A	for SFTM Made
*B	for GTMC Made
*a	Component with harness connected (Reclining Motor (Front Seat Back Frame Sub-assembly LH))

Reconnect the V12*1 or V19*2 reclining motor (front seat back frame sub-assembly LH) connector.

*1: for SFTM Made

*2: for GTMC Made

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

for SFTM Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(V12)Location & Routingewd_type=routing;type=c;code=V12 Click Connector(V12)Seat>No. 2 Front Seat Wire RH / No. 2 Front Seat Wire LH>Reclining Motor (Front Seatback Frame Sub-Assembly LH)ewd_type=component;type=c;code=V12;pinno=4
V12-4 - Body ground	Reclining motor operating	4.5 to 4.8 V

for GTMC Made
Tester Connection	Condition	Specified Condition
Click Location & Routing(V19)Location & Routingewd_type=routing;type=c;code=V19 Click Connector(V19)Seat>No. 2 Front Seat Wire RH / No. 2 Front Seat Wire LH>Reclining Motor (Front Seatback Frame Sub-Assembly LH)ewd_type=component;type=c;code=V19;pinno=2
V19-2 - Body ground	Reclining motor operating	4.5 to 4.8 V

Result:

Proceed to
OK
NG

REPLACE POSITION CONTROL ECU ASSEMBLY

REPLACE RECLINING MOTOR (FRONT SEAT BACK FRAME SUB-ASSEMBLY LH)

for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>DISASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EH,

for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>DISASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GJ,
