RM38N0EC _58 Vehicle Interior _111839 SEAT _0500775 FRONT SEAT ASSEMBLY(for SFTM Made Power Seat) A

SEAT FRONT SEAT ASSEMBLY(for SFTM Made Power Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>SEAT HEATER CONTROL (for SFTM Made)>REMOVAL202111,202203,_58,_111839,_0500781,RM100000001Z3F7_05_0002,202203,202303,_58,_111839,_0500781,RM1000000022EHT_05_0002,202303,202406,_58,_111839,_0500781,RM100000002B4XY_05_0002,202406,999999,_58,_111839,_0500781,RM100000002MQS4_05_0002,

Hide Display 89710 2.REMOVE POSITION CONTROL ECU ASSEMBLY (w/ Seat Position Memory System)

Click hereVehicle Interior>SEAT>POWER SEAT CONTROL ECU (for SFTM Made)>REMOVAL202111,202203,_58,_111839,_0500782,RM100000001Z3FA_02_0002,202203,202303,_58,_111839,_0500782,RM1000000022EHU_02_0002,202303,202406,_58,_111839,_0500782,RM100000002B4Y0_02_0002,202406,999999,_58,_111839,_0500782,RM100000002MQQP_02_0002,

Hide Display 73240 3.REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)>REMOVAL202111,202203,_58,_111840,_0501512,RM100000001Z6H7_02_0046,202203,202303,_58,_111840,_0501512,RM1000000022GGV_02_0046,202303,202406,_58,_111840,_0501512,RM100000002BICM_02_0046,202406,999999,_58,_111840,_0501512,RM100000002MX0U_02_0046,

Hide Display 73230 4.REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)>REMOVAL202111,202203,_58,_111840,_0501512,RM100000001Z6H7_02_0076,202203,202303,_58,_111840,_0501512,RM1000000022GGV_02_0076,202303,202406,_58,_111840,_0501512,RM100000002BICM_02_0076,202406,999999,_58,_111840,_0501512,RM100000002MX0U_02_0076,

Hide Display 71074S 5.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

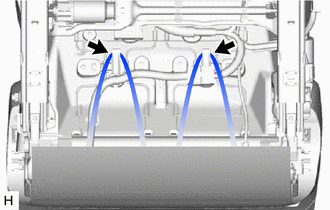

Disconnect the 2 rubber bands of the separate type front seatback cover.

Hide Display 71868A 6.REMOVE FRONT SEAT INNER NO. 1 CUSHION SHIELD

1.021,3.167 1.021,2.292 true 2.646,2.448 2.646,1.49 2.646,1.49 3.115,1.49 true 3.073,1.823 2.646,1.823 true 2.969,2.01 2.646,2.01 true 0.99,3.177 1.146,3.375 0.156,0.198 10 false A 2.615,2.479 2.771,2.677 0.156,0.198 10 false B

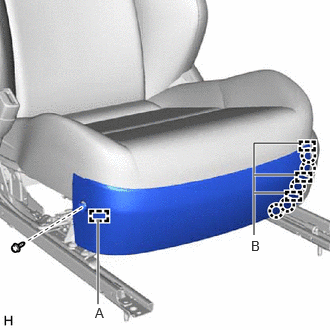

Remove the screw.

Disengage the guide (A).

Disengage the 5 claws and 3 guides (B) to remove the front seat inner no. 1 cushion shield.

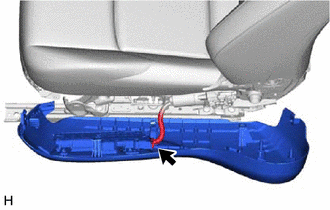

Hide Display 71812D 7.REMOVE FRONT SEAT CUSHION SHIELD

Remove the 2 screws.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

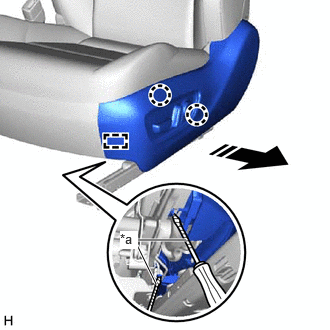

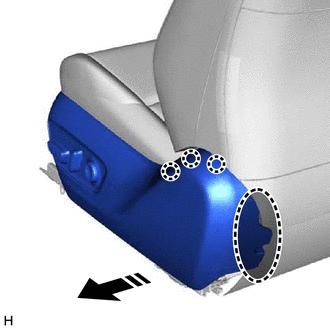

Disengage the 3 claws as shown in the illustration.

1.938,2.5 1.417,2.5 true 1.625,2.958 1.427,2.552 true 1.25,2.406 1.438,2.594 0.188,0.188 10 true *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.

Disengage the guide.

Disconnect the front power seat switch connector to remove the front seat cushion shield.

Hide Display 71862 8.REMOVE FRONT SEAT INNER CUSHION SHIELD

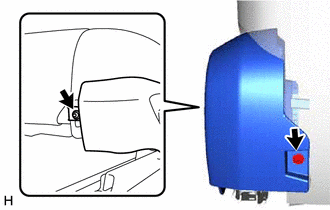

Remove the 2 screws.

1.302,1.792 1.458,1.99 0.156,0.198 10 false .

	Remove in this Direction (1)
	Remove in this Direction (2)

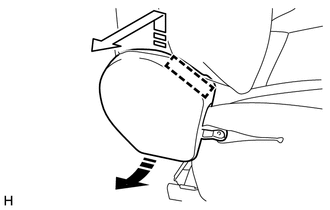

Disengage the guide to remove the front seat inner cushion shield as shown in the illustration.

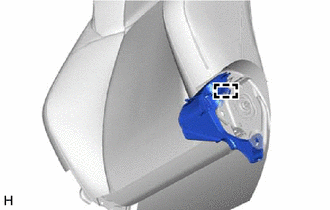

Hide Display 71875G 9.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER (for RH Side)

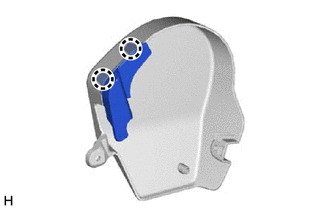

Disengage the 2 claws and remove the LH seat reclining adjuster inside cover from the front seat inner cushion shield.

Hide Display 84921B 10.REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Using a moulding remover, disengage the 4 claws to remove the slide and vertical power seat switch knob.

Hide Display 84921A 11.REMOVE RECLINING POWER SEAT SWITCH KNOB

Using a moulding remover, disengage the 4 claws to remove the reclining power seat switch knob.

Hide Display 84922C 12.REMOVE FRONT POWER SEAT SWITCH

Click hereVehicle Interior>SEAT>POWER SEAT SWITCH (for SFTM Made)>REMOVAL202111,202203,_58,_111839,_0500777,RM100000001Z3ES_01_0118,202203,202303,_58,_111839,_0500777,RM1000000022EHP_01_0118,202303,202406,_58,_111839,_0500777,RM100000002B4XF_01_0118,202406,999999,_58,_111839,_0500777,RM100000002MQQO_01_0118,

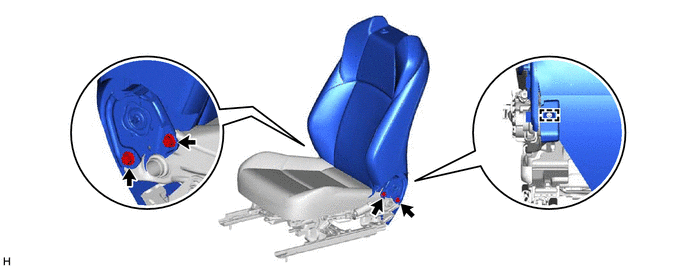

Hide Display 13.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

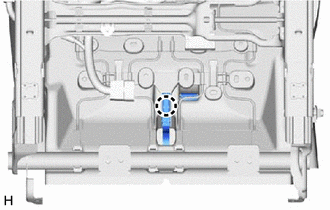

Disengage the hook.

2.417,1.417 3.167,1.417 true 3.083,1.417 3.083,3 3.083,3 2.5,3 true 2.458,2.333 3.083,2.333 true 0.167,2.75 1.25,2.75 1.25,2.75 1.25,2.5 true 0.333,2.75 0.333,2.948 0.333,2.948 0.917,2.948 true 1.281,3.031 1.281,3.219 true 0.042,2.667 0.198,2.865 0.156,0.198 10 false B 3.229,1.333 3.385,1.531 0.156,0.198 10 false A 1.25,3.229 1.5,3.417 0.25,0.188 10 false D 1.885,2.708 2.052,2.896 0.167,0.188 10 true C 0.708,2.469 0.865,2.656 0.156,0.188 10 true E

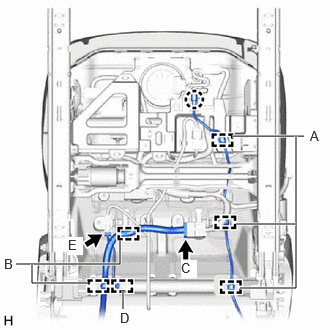

Disengage the claw and 3 clamps (A) to separate the front seat airbag assembly wire harness.

HINT:: Disengage the 3 clamps (A) first.

Disengage the 2 clamps (B).

Disconnect the connector (C) to separate the front seat No. 2 wire.

w/ Seat Heater System:

Disengage the clamp (D).

ii.

Disconnect the connector (E) to separate the front seatback heater assembly connector.

Remove the 4 bolts.

Disengage the guide and remove the separate type front seatback assembly from the separate type front seat cushion assembly.

HINT:: Remove the LH seat reclining adjuster inside cover LH together with the separate type front seatback assembly.

Hide Display 71876G 14.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER (for LH Side)

Disengage the guide to remove the LH seat reclining adjuster inside cover from the separate type front seatback assembly.

Hide Display 71931 15.REMOVE FRONT SEAT HEADREST SUPPORT

Open the 2 fasteners.

Disengage the hook.

Pass each wire harness through the hole of the separate type front seatback cover.

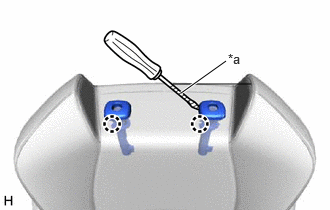

1.802,0.875 2.615,0.875 false 1.885,0.969 2.354,0.635 true 2.375,0.531 2.688,0.688 0.313,0.156 10 false *a

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the 2 front seat headrest supports.

Hide Display 16.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Remove the separate type front seatback cover with pad.

Hide Display 71074S 17.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

Remove the 15 hog rings to remove the separate type front seatback cover from the separate type front seatback pad.

Hide Display 87510N 18.REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>FRONT SEATBACK HEATER (for SFTM Made)>REMOVAL202111,202203,_58,_111839,_0500779,RM100000001Z3F0_01_0176,202203,202303,_58,_111839,_0500779,RM1000000022EHS_01_0176,202303,202406,_58,_111839,_0500779,RM100000002B4XU_01_0176,202406,999999,_58,_111839,_0500779,RM100000002MQTH_01_0176,

Hide Display 73920A 19.REMOVE FRONT SEAT AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for SFTM Made)>REMOVAL202111,202203,_58,_111838,_0502525,RM100000001ZAE2_01_0005,202203,202303,_58,_111838,_0502525,RM1000000022FI2_01_0005,202303,202406,_58,_111838,_0502525,RM100000002AQNR_01_0005,202406,999999,_58,_111838,_0502525,RM100000002MS88_01_0005,

Hide Display 85867A 20.REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

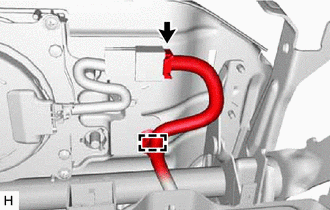

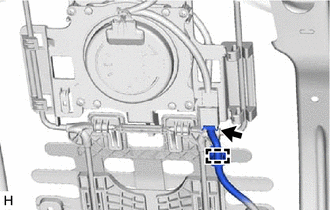

Disengage the wire harness clamp and disconnect the connector.

HINT:: Disengage the wire harness clamp first.

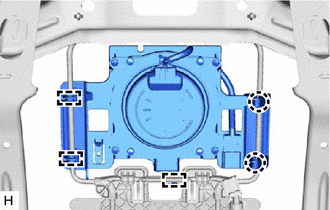

Disengage the 2 claws and 3 hooks.

HINT:: Disengage the 2 claws first.

Disengage the claw.

Remove the 4 screws and seatback climate control blower from the seatback blower fan adapter.

Hide Display 71053S 21.REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY (for Front Passenger Side)

w/o Climate Control Seat System:

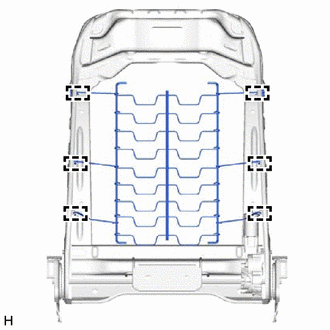

Disengage the 6 hooks to remove the front seatback spring sub-assembly from the front seatback frame sub-assembly.

w/ Climate Control Seat System:

Disengage the 2 claws.

ii.

0,0 0,0 false

Remove in this Direction

Disengage the 2 guides to remove the front seatback spring sub-assembly as shown in the illustration.

Hide Display 72760D 22.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY (for Driver Side)

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY (for SFTM Made)>REMOVAL202111,202203,_58,_111839,_0500778,RM100000001Z3EW_01_0123,202203,202303,_58,_111839,_0500778,RM1000000022EHQ_01_0123,202303,202406,_58,_111839,_0500778,RM100000002B4XO_01_0123,202406,999999,_58,_111839,_0500778,RM100000002MQQV_01_0123,

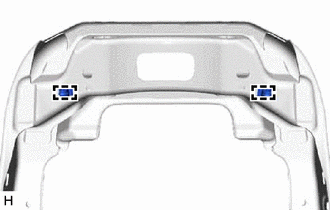

Hide Display 71759D 23.REMOVE FRONT NO. 2 SEATBACK HOOK

w/o Climate Control Seat System:

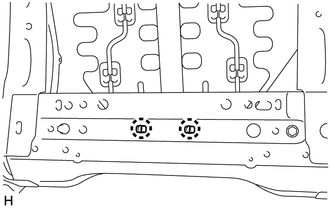

Disengage the 2 clamps to remove the 2 front No. 2 seatback hooks from the front seatback frame sub-assembly.

w/ Climate Control Seat System:

Disengage the 2 clamps to remove the 2 front No. 2 seatback hooks from the front seatback frame sub-assembly.

Hide Display 8219B 24.REMOVE FRONT SEAT NO. 2 WIRE

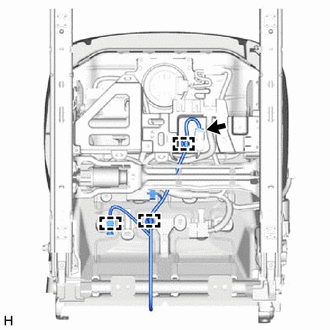

Disconnect each connector and disengage each clamp to remove the front seat No. 2 wire.

Hide Display 25.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

w/ Seat Heater System:

Disengage the 3 clamps.

ii.

Disconnect the connector to separate the front seat cushion heater assembly wire harness.

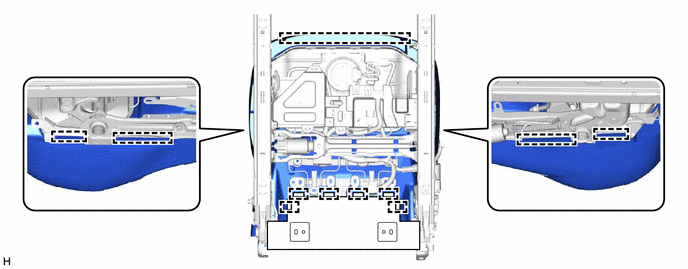

Disengage the 11 hooks and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.

for Front Passenger Side:

Disengage the claw to separate the occupant detection sensor.

Hide Display 71072S 26.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Remove the 16 hog rings and remove the separate type front seat cushion cover from the separate type front seat cushion pad.

Hide Display 87510L 27.REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>FRONT SEAT CUSHION HEATER (for SFTM Made)>REMOVAL202111,202203,_58,_111839,_0500780,RM100000001Z3F4_01_0176,202203,202303,_58,_111839,_0500780,RM1000000022EHR_01_0176,202303,202406,_58,_111839,_0500780,RM100000002B4XW_01_0176,202406,999999,_58,_111839,_0500780,RM100000002MQTN_01_0176,

Hide Display 71874C 28.REMOVE FRONT SEAT LOWER CUSHION SHIELD (for Driver Side)

2.542,2.5 2.958,2.083 true 0.354,2.885 0.646,2.292 true 2.948,1.99 3.188,2.146 0.24,0.156 10 true *a 0.615,2.25 0.854,2.406 0.24,0.156 10 true *a

*a	Protective Tape

Remove the screw.

Disengage the hook.

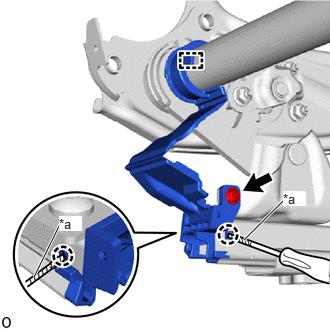

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the front seat lower cushion shield.

Hide Display 71873A 29.REMOVE FRONT SEAT LOWER CUSHION SHIELD (for Driver Side)

1.792,0.469 2.573,0.167 true 0.542,2.917 0.656,2.156 true 1.76,3.01 2.635,2.698 true 2.604,0.031 2.917,0.188 0.313,0.156 10 false *a 0.448,2.948 0.76,3.104 0.313,0.156 10 false *b 1.552,2.948 1.74,3.146 0.188,0.198 10 false *b

*a	Hook
*b	Guide

Remove the 2 screws.

Disengage the hook.

Disengage the 2 guides to remove the front seat lower cushion shield.

Hide Display 72266J 30.REMOVE SEAT TRACK UPPER RAIL COVER LH

0,0 0,0 false

Remove in this Direction

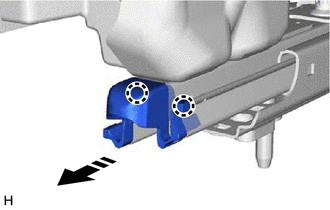

Disengage the 2 claws to remove the seat track upper rail cover LH as shown in the illustration.

HINT:: Use the same procedure for the both sides.

Hide Display 72265 31.REMOVE SEAT TRACK UPPER RAIL COVER RH

HINT:: ·

Use the same procedure as for the seat track upper rail cover LH.

·

Use the same procedure for both side. (for Front Passenger Side)

Hide Display 85862D 32.REMOVE SEAT CUSHION CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

Disengage the wire harness clamp and disconnect the connector.

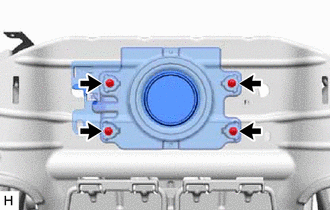

Remove the 4 screws.

0,0 0,0 false

Wire Harness Clamp

Disengage the claw and wire harness clamp.

HINT:: Disengage the claw first.

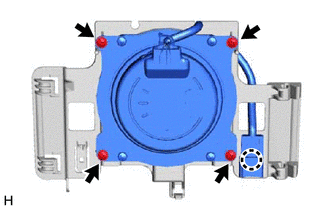

Remove the 4 screws and seat cushion climate control blower from the seat cushion blower fan adapter.

Hide Display 82192 33.REMOVE FRONT SEAT WIRE

Disconnect each connector and disengage each clamp to remove the front seat wire.

Hide Display 71052A 34.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

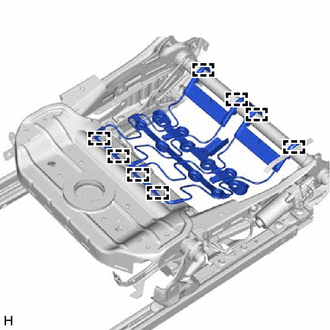

Disengage the 8 hooks to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.

Hide Display 71703E 35.REMOVE FRONT SEAT CUSHION PANEL SUB-ASSEMBLY

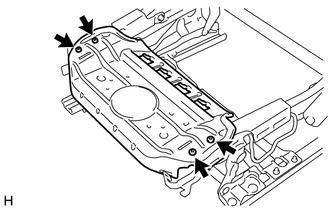

Remove the 4 screws and front seat cushion panel sub-assembly from the front seat adjuster assembly.
