SEAT FRONT SEAT ASSEMBLY(for GTMC Made Power Seat) DISASSEMBLY

Hide Display 89710 1.REMOVE POSITION CONTROL ECU ASSEMBLY (w/ Seat Position Memory System)

Click hereVehicle Interior>SEAT>POWER SEAT CONTROL ECU (for GTMC Made)>REMOVAL202203,202303,_58,_111839,_0525817,RM10000000229H8_05_0002,202303,202406,_58,_111839,_0525817,RM100000002B4XZ_05_0002,202406,999999,_58,_111839,_0525817,RM100000002MQQR_05_0002,

Hide Display 87501B 2.REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>SEAT HEATER CONTROL (for GTMC Made)>REMOVAL202203,202303,_58,_111839,_0525816,RM10000000229H5_05_0002,202303,202406,_58,_111839,_0525816,RM100000002B4XX_05_0002,202406,999999,_58,_111839,_0525816,RM100000002MQRC_05_0002,

Hide Display 73240 3.REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)>REMOVAL202203,202303,_58,_111840,_0501512,RM1000000022GGV_02_0046,202303,202406,_58,_111840,_0501512,RM100000002BICM_02_0046,202406,999999,_58,_111840,_0501512,RM100000002MX0U_02_0046,

Hide Display 73230 4.REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)>REMOVAL202203,202303,_58,_111840,_0501512,RM1000000022GGV_02_0076,202303,202406,_58,_111840,_0501512,RM100000002BICM_02_0076,202406,999999,_58,_111840,_0501512,RM100000002MX0U_02_0076,

Hide Display 71074S 5.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

a.

Disconnect the rubber band of the separate type front seatback cover.

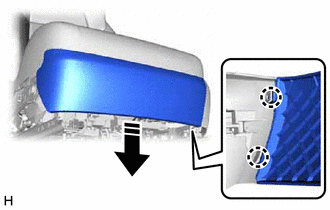

Hide Display 71868N 6.REMOVE FRONT SEAT FRONT CUSHION SHIELD

a.

Remove the clip.

b.

0,0 0,0 false

Remove in this Direction

Disengage the guide as shown in the illustration.

c.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws as shown in the illustration.

d.

Disengage the 3 guides to remove the front seat front cushion shield.

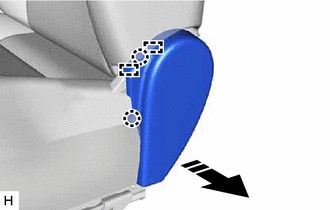

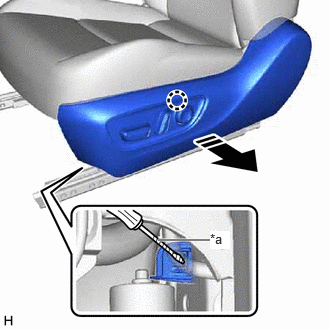

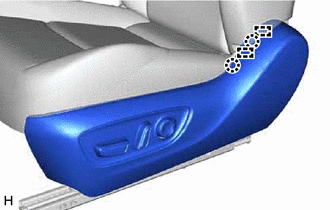

Hide Display 71812D 7.REMOVE FRONT SEAT CUSHION SHIELD (for Driver Side)

a.

Disengage the 2 claws and 2 guides.

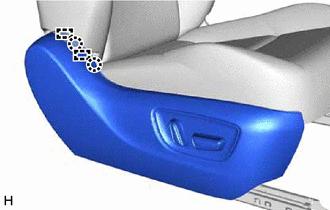

b.

Disengage the 2 claws.

c.

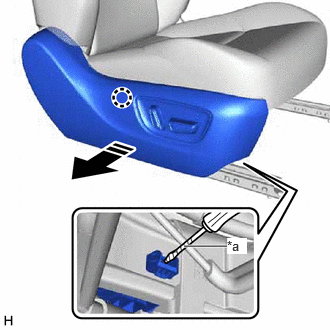

1.646,2.5 2.188,2.5 true 2.188,2.406 2.396,2.594 0.208,0.188 10 true *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and slightly pull the front seat cushion shield as shown in the illustration.

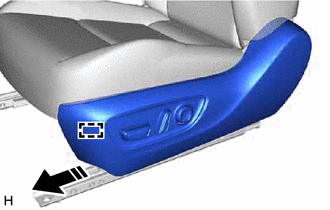

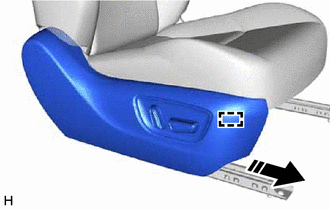

d.

0,0 0,0 false

Remove in this Direction

Disengage the guide as shown in the illustration.

e.

Disconnect the front power seat switch connector to remove the front seat cushion shield.

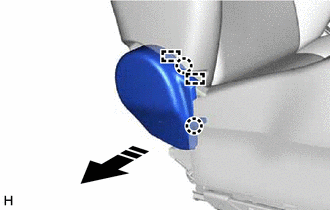

Hide Display 71862 8.REMOVE FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

a.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws and 2 guides as shown in the illustration.

b.

Disengage the 2 claws to remove the front seat inner cushion shield.

Hide Display 71811D 9.REMOVE FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

a.

Disengage the 2 claws and 2 guides.

b.

Disengage the 3 claws.

c.

1.917,2.563 2.365,2.563 true 2.365,2.479 2.573,2.646 0.208,0.167 10 true *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and slightly pull the front seat cushion shield as shown in the illustration.

d.

0,0 0,0 false

Remove in this Direction

Disengage the guide as shown in the illustration.

e.

Disconnect the front power seat switch connector to remove the front seat cushion shield.

Hide Display 71861 10.REMOVE FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)

a.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws and 2 guides as shown in the illustration.

b.

Disengage the 3 claws to remove the front seat inner cushion shield.

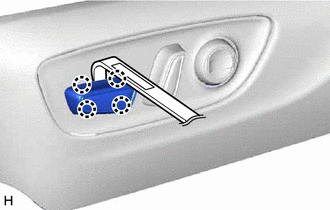

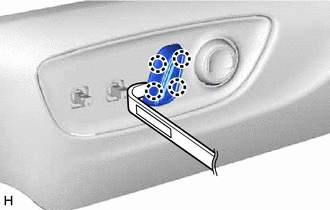

Hide Display 84921B 11.REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

a.

Using a moulding remover, disengage the 4 claws to remove the slide and vertical power seat switch knob.

Hide Display 84921A 12.REMOVE RECLINING POWER SEAT SWITCH KNOB

a.

Using a moulding remover, disengage the 4 claws to remove the reclining power seat switch knob.

Hide Display 72714 13.REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET (for Driver Side)

a.

Remove the 2 screws and seat adjuster shield clamp bracket from the front seat cushion shield.

Hide Display 84922C 14.REMOVE FRONT POWER SEAT SWITCH

Click hereVehicle Interior>SEAT>POWER SEAT SWITCH (for GTMC Made)>REMOVAL202203,202303,_58,_111839,_0525818,RM10000000229HG_06_0008,202303,202406,_58,_111839,_0525818,RM100000002B4XE_06_0008,202406,999999,_58,_111839,_0525818,RM100000002MQQN_06_0008,

Hide Display 15.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

a.

Disengage the 2 hooks.

b.

for Driver Side:

i.

Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.

HINT:: Disengage the 4 clamps first.

c.

for Front Passenger Side:

i.

Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.

HINT:: Disengage the 4 clamps first.

d.

Disconnect the connector.

e.

Disengage the clamp.

f.

w/ Seat Heater System:

i.

Disengage the clamp.

ii.

Disconnect the front seatback heater assembly connector.

g.

Remove the 4 bolts.

h.

Disengage the 4 guides to remove the separate type front seatback assembly from the separate type front seat cushion assembly.

Hide Display 71931 16.REMOVE FRONT SEAT HEADREST SUPPORT

a.

Disengage the 3 hooks.

b.

w/ Seat Heater System:

i.

Disengage the clamp.

c.

Open the 2 fasteners.

d.

Disengage the 4 claws and remove the 2 front seat headrest supports.

Hide Display 17.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

a.

Remove the separate type front seatback cover with pad.

Hide Display 71074S 18.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

a.

Using a screwdriver, disengage the 15 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.

1.5,2.49 1.969,2.49 false 2,2.385 2.313,2.542 0.313,0.156 10 false *a

*a

Screwdriver

-

Hide Display 73920A 19.REMOVE FRONT SEAT AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for GTMC Made)>REMOVAL202203,202303,_58,_111838,_0525161,RM100000002254W_01_0005,202303,202406,_58,_111838,_0525161,RM100000002AQNP_01_0005,202406,999999,_58,_111838,_0525161,RM100000002MS85_01_0005,

Hide Display 72760D 20.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (for Driver Side with Climate Control Seat System)

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY (for GTMC Made)>REMOVAL202203,202303,_58,_111839,_0525813,RM10000000229GU_07_0006,202303,202406,_58,_111839,_0525813,RM100000002B4XS_07_0006,202406,999999,_58,_111839,_0525813,RM100000002MQQU_07_0006,

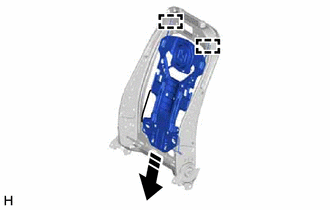

Hide Display 72750D 21.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (for Front Passenger Side)

a.

Disconnect the 2 connectors.

b.

Disengage the clamp.

c.

Disengage the 2 claws to separate the 2 front seatback edge protectors from the front seatback frame sub-assembly.

d.

0,0 0,0 false

Remove in this Direction

Disengage the 2 guides to remove the lumbar support adjuster assembly RH from the front seatback frame sub-assembly as shown in the illustration.

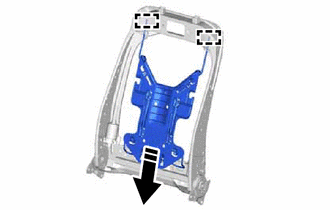

Hide Display 22.REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY (for Driver Side without Climate Control Seat System)

a.

Disengage the 2 claws to separate the 2 front seatback edge protectors from the front seatback frame sub-assembly.

b.

0,0 0,0 false

Remove in this Direction

Disengage the 2 guides to remove the front seatback spring sub-assembly from the front seatback frame sub-assembly as shown in the illustration.

Hide Display 79977A 23.REMOVE SEATBACK FELT (w/ Climate Control Seat System)

a.

Disengage the 2 guides and remove the seatback felt.

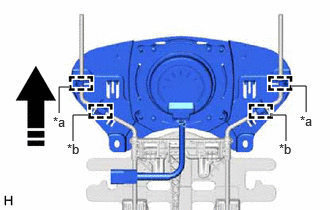

Hide Display 85867A 24.REMOVE SEATBACK CLIMATE CONTROL BLOWER (for Driver Side with Climate Control Seat System)

a.

0.76,1.469 0.76,1.198 0.76,1.198 0.917,1.198 true 2.979,1.469 2.979,1.198 2.979,1.198 2.823,1.198 true 3.188,1.167 3.188,0.896 3.188,0.896 3.031,0.896 true 0.615,1.177 0.615,0.906 0.615,0.906 0.729,0.906 true 0.698,1.469 0.927,1.667 0.229,0.198 10 false *b 2.906,1.469 3.135,1.667 0.229,0.198 10 false *b 3.125,1.177 3.354,1.375 0.229,0.198 10 false *a 0.552,1.188 0.781,1.385 0.229,0.198 10 false *a

*a	Guide
*b	Hook
	Remove in this Direction

Disengage the 2 guides and 2 hooks and remove the seatback climate control blower as shown in the illustration.

Hide Display 71587 25.REMOVE FRONT SEATBACK EDGE PROTECTOR

a.

Remove the 2 front seatback edge protectors.

Hide Display 71759B 26.REMOVE FRONT SEATBACK HOOK

a.

Remove the 2 front seatback hooks from the front seatback frame sub-assembly.

Hide Display 8219B 27.REMOVE FRONT SEAT NO. 2 WIRE

a.

Disengage the 2 clamps to remove the front seat No. 2 wire.

Hide Display 28.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

a.

for Front Passenger Side:

i.

0,0 0,0 false

Remove in this Direction

Disengage the claw to separate the connector holder as shown in the illustration.

b.

w/ Seat Heater System:

i.

Disconnect the connector.

ii.

Disengage the clamp.

c.

Disengage the 10 hooks and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.

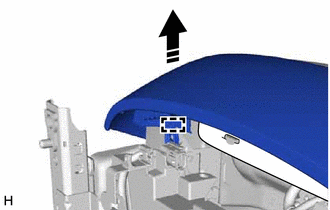

Hide Display 82666M 29.REMOVE CONNECTOR HOLDER (for Front Passenger Side)

a.

0,0 0,0 false

Remove in this Direction

Disengage the claw to remove the connector holder from the occupant detection sensor wire harness as shown in the illustration.

Hide Display 85860B 30.REMOVE SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY (w/ Climate Control Seat System)

a.

for Driver Side:

i.

Disengage the wire harness clamp and disconnect the connector.

b.

for Front Passenger Side:

i.

Disconnect the connector.

c.

Remove the 2 bolts.

d.

Disengage the hook and remove the seat cushion climate control blower assembly.

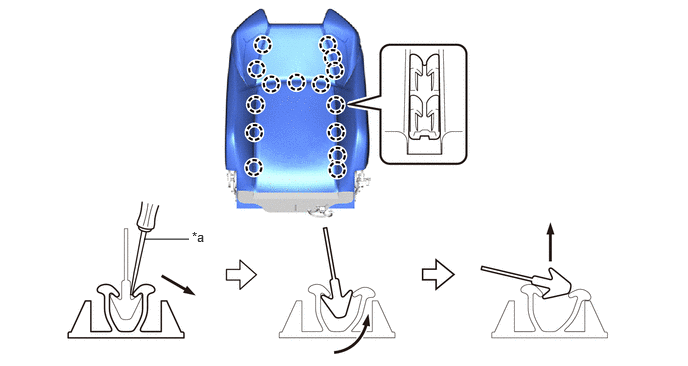

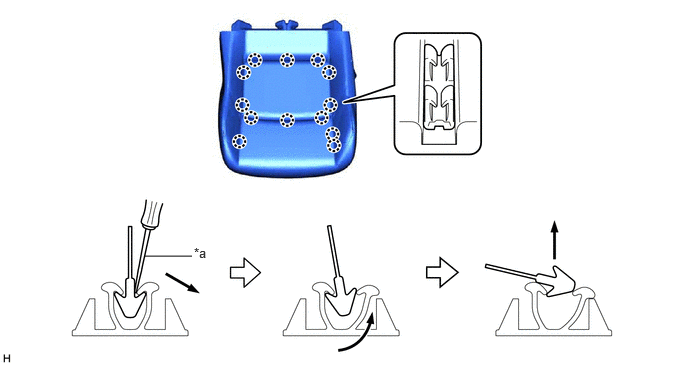

Hide Display 71072S 31.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

a.

Using a screwdriver, disengage the 13 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.

1.5,2.667 2,2.667 false 2.021,2.552 2.333,2.75 0.313,0.198 10 false *a

*a

Screwdriver

-

Hide Display 71876G 32.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER (for Driver Side)

a.

for LH Side

i.

Disengage the 4 claws to remove the LH seat reclining adjuster inside cover.

b.

for RH Side

i.

Disengage the 4 claws to remove the LH seat reclining adjuster inside cover.

Hide Display 71876 33.REMOVE RECLINING ADJUSTER INSIDE COVER (for Front Passenger Side)

a.

for LH Side:

i.

Disengage the 4 claws to remove the reclining adjuster inside cover.

ii.

Disengage the clamp and claw.

b.

for RH Side:

i.

Disengage the 4 claws to remove the reclining adjuster inside cover.

Hide Display 71874A 34.REMOVE FRONT SEAT LOWER CUSHION SHIELD (for Driver Side)

a.

for LH Side:

i.

2.479,0.385 2.917,0.385 true 2.021,1.51 2.021,1.365 true 1.385,1.375 2.594,1.375 true 2.927,0.302 3.115,0.5 0.188,0.198 10 true *a 2.615,1.281 2.927,1.438 0.313,0.156 10 false *b

*a	Hook
*b	Guide

Disengage the hook.

ii.

Disengage the 2 claws and 2 guides to remove the front seat lower cushion shield.

b.

for RH Side:

i.

2.542,0.458 3.063,0.458 true 2.188,1.625 2.823,1.625 true 3.073,0.354 3.271,0.542 0.198,0.188 10 false *a 2.844,1.542 3.156,1.698 0.313,0.156 10 false *b

*a	Hook
*b	Guide

Disengage the hook.

ii.

Disengage the claw and guide to remove the front seat lower cushion shield.

Hide Display 82192 35.REMOVE FRONT SEAT WIRE

a.

Disconnect each connector and disengage each clamp to remove the front seat wire.

Hide Display 71052A 36.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

a.

Disengage the 6 hooks to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.

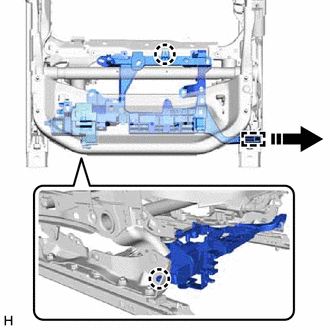

Hide Display 7181B 37.REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER (for Driver Side)

a.

Remove the 2 screws.

b.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws.

c.

Disengage the guide to remove the front seat cushion wire harness holder as shown in the illustration.

Hide Display 7181A 38.REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER (for Front Passenger Side)

a.

Remove the 2 screws.

b.

Disengage the claw to remove the front seat cushion wire harness holder.

Hide Display 71874 39.REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

a.

0,0 0,0 false

Remove in this Direction

Disengage the claw as shown in the illustration.

b.

Disengage the guide to remove the front seat lower cushion shield LH.

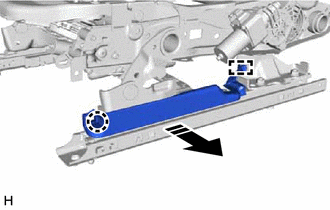

Hide Display 72266C 40.REMOVE SEAT TRACK UPPER RAIL COVER

a.

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws to remove the seat track upper rail cover as shown in the illustration.

HINT:: Use the same procedure for both sides.

Hide Display 72125D 41.REMOVE REAR UPPER NO. 2 SEAT TRACK COVER

a.

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws to remove the rear upper No. 2 seat track cover as shown in the illustration.

HINT:: Use the same procedure for both sides.

Hide Display 42.REMOVE POWER SEAT LIFTER MOTOR ASSEMBLY LH (for Driver Side)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT MOTOR ASSEMBLY>REMOVAL202203,202303,_58,_111839,_0525812,RM10000000229GO_01_0018,202303,202406,_58,_111839,_0525812,RM100000002B4XK_01_0019,202406,999999,_58,_111839,_0525812,RM100000002MQQT_01_0019,

Hide Display 43.REMOVE POWER SEAT TILT MOTOR ASSEMBLY LH (for Driver Side)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT MOTOR ASSEMBLY>REMOVAL202203,202303,_58,_111839,_0525812,RM10000000229GO_01_0019,202303,202406,_58,_111839,_0525812,RM100000002B4XK_01_0019,202406,999999,_58,_111839,_0525812,RM100000002MQQT_01_0019,
