RM38N0EC _58 Vehicle Interior _111838 SUPPLEMENTAL RESTRAINT SYSTEMS _0502526 CENTER AIRBAG SENSOR ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS CENTER AIRBAG SENSOR ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:: ·

After replacing the airbag sensor assembly or airbag ECU assembly, make sure to perform update ECU security key.

·

After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.

PROCEDURE

Hide Display 89170 1.INSTALL AIRBAG SENSOR ASSEMBLY (for SFTM Made)

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

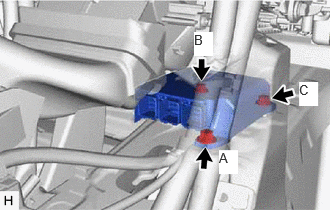

2.281,1.563 2.479,1.813 0.198,0.25 10 true A 2.021,0.333 2.219,0.583 0.198,0.25 10 true B 3.115,0.854 3.313,1.104 0.198,0.25 10 true C

Install the airbag sensor assembly with the 3 bolts.

Torque:: 17.5 N*m (178 kgf*cm, 13 ft.*lbf)

NOTICE:: ·

Temporarily tighten the bolt (A) and then fully tighten the 3 bolts in the order of (B), (C) and (A).

·

If the airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

·

When installing the airbag sensor assembly, make sure that the wire harness does not interfere with other parts and is not pinched.

·

When the ignition switch is first turned to ON after the airbag sensor assembly has been replaced, make sure that no one is in the vehicle.

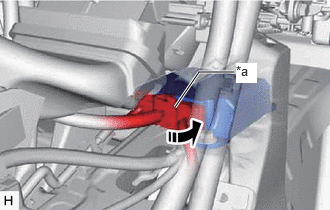

2.438,0.75 2.073,0.75 2.073,0.75 1.823,1.115 true 2.458,0.656 2.677,0.865 0.219,0.208 10 true *a

*a	Lock Lever
	Move in this Direction

Temporarily connect the connectors and then move the lock lever in the direction indicated by the arrow to securely connect the connectors.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

Check that there is no looseness in the installed parts of the airbag sensor assembly.

Hide Display 89170A 2.INSTALL AIRBAG ECU ASSEMBLY (for GTMC Made)

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

2.281,1.563 2.479,1.813 0.198,0.25 10 true A 2.021,0.333 2.219,0.583 0.198,0.25 10 true B 3.115,0.854 3.313,1.104 0.198,0.25 10 true C

Install the airbag ECU assembly with the 3 bolts.

Torque:: 17.5 N*m (178 kgf*cm, 13 ft.*lbf)

NOTICE:: ·

Temporarily tighten the bolt (A) and then fully tighten the 3 bolts in the order of (B), (C) and (A).

·

If the airbag ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

·

When installing the airbag ECU assembly, make sure that the wire harness does not interfere with other parts and is not pinched.

·

When the ignition switch is first turned to ON after the airbag ECU assembly has been replaced, make sure that no one is in the vehicle.

2.438,0.75 2.073,0.75 2.073,0.75 1.823,1.115 true 2.458,0.656 2.677,0.865 0.219,0.208 10 true *a

*a	Lock Lever
	Move in this Direction

Temporarily connect the connectors and then move the lock lever in the direction indicated by the arrow to securely connect the connectors.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

Check that there is no looseness in the installed parts of the airbag ECU assembly.

Hide Display 58510C 3.INSTALL FRONT FLOOR CARPET ASSEMBLY

Install the front floor carpet assembly to its original position.

Hide Display 4.INSTALL CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202111,999999,_58,_111843,_0501136,RM100000001Z535,

Hide Display 5.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503321,RM100000001ZE56_01_0015,

for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503322,RM100000001ZE59_01_0015,

Hide Display 6. UPDATE ECU SECURITY KEY

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY202111,999999,_V1,_111780,_0504977,RM100000001ZKRX,

Hide Display 65351A 7.INSTALL BATTERY HOLE COVER (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0245,

Hide Display 58416K 8.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503322,RM100000001ZE59_01_0029,

Hide Display 9. PERFORM DIAGNOSTIC SYSTEM CHECK

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DTC CHECK / CLEAR202111,999999,_58,_111838,_0499714,RM100000001YZDT,

Hide Display 10.INSPECT SRS WARNING LIGHT

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>OPERATION CHECK202111,999999,_58,_111838,_0499714,RM100000001YZDQ,

Hide Display 11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE202203,202406,_V1,_111780,_0504976,RM1000000022CKY,202406,999999,_V1,_111780,_0504976,RM100000002MNUE,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202111,999999,_V1,_111780,_0504976,RM100000001ZKRU,

Hide Display 12. PERFORM INITIALIZATION

for Electronically Controlled Brake System (for HV Model): Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>RESET MEMORY / CALIBRATION202203,999999,_54,_111814,_0500722,RM1000000022HHI,

for Electronically Controlled Brake System (for Gasoline Model): Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>RESET MEMORY / CALIBRATION202203,999999,_54,_111814,_0500728,RM1000000022HI0,

for Dynamic Torque Control AWD System: Click hereDrivetrain>GF1A (TRANSFER / 4WD / AWD)>DYNAMIC TORQUE CONTROL AWD SYSTEM>CALIBRATION202203,999999,_52,_119335,_0524142,RM1000000021ZDR,
