WINDOW / GLASS  POWER WINDOW CONTROL SYSTEM  B2311  Power Window Motor Malfunction


DESCRIPTION

The power window regulator motor assemblies are operated by the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assemblies. The power window regulator motor assemblies have motor, regulator and ECU functions.

This DTC is stored when a power window regulator motor assembly is malfunctioning, or the ECU built into the power window regulator motor assembly determines that the fully closed power window position has deviated approximately 20 mm (0.787 in.) or more from the normal position.

D-Door Motor
DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B2311 Power Window Motor Malfunction

Either condition is met:

(a)

Power window regulator motor assembly (for driver door) is malfunctioning

(b)

ECU in power window regulator motor assembly (for driver door) determines that fully closed power window position has deviated approx. 20 mm (0.787 in.) or more from normal position



·

Power window regulator motor assembly (for driver door)

·

Incorrect installation of power window components

·

Overheated power window regulator motor assembly (for driver door)

·

Wire harness or connector


D-Door Motor A

P-Door Motor
DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B2311 Power Window Motor Malfunction

Either condition is met:

(a)

Power window regulator motor assembly (for front passenger door) is malfunctioning

(b)

ECU in power window regulator motor assembly (for front passenger door) determines that fully closed power window position has deviated approx. 20 mm (0.787 in.) or more from normal position



·

Power window regulator motor assembly (for front passenger door)

·

Incorrect installation of power window components

·

Overheated power window regulator motor assembly (for front passenger door)

·

Wire harness or connector


P-Door Motor A

RL-Door Motor
DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B2311 Power Window Motor Malfunction

Either condition is met:

(a)

Power window regulator motor assembly (for rear LH door) is malfunctioning

(b)

ECU in power window regulator motor assembly (for rear LH door) determines that fully closed power window position has deviated approx. 20 mm (0.787 in.) or more from normal position



·

Power window regulator motor assembly (for rear LH door)

·

Incorrect installation of power window components

·

Overheated power window regulator motor assembly (for rear LH door)

·

Wire harness or connector


RL-Door Motor A

RR-Door Motor
DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B2311 Power Window Motor Malfunction

Either condition is met:

(a)

Power window regulator motor assembly (for rear RH door) is malfunctioning

(b)

ECU in power window regulator motor assembly (for rear RH door) determines that fully closed power window position has deviated approx. 20 mm (0.787 in.) or more from normal position



·

Power window regulator motor assembly (for rear RH door)

·

Incorrect installation of power window components

·

Overheated power window regulator motor assembly (for rear RH door)

·

Wire harness or connector


RR-Door Motor A

WIRING DIAGRAM

B506685E59
3.698,0.146 5.531,0.344 1.833,0.198 10 false from Auxiliary Battery 5.385,0.615 7.073,0.813 1.688,0.198 10 false ECU-B NO. 2 5.479,1.26 6.708,1.458 1.229,0.198 10 false DOOR F/L 5.094,1.125 5.25,1.323 0.156,0.198 10 false B 1.01,1.115 1.167,1.313 0.156,0.198 10 false B 2.26,1.083 2.573,1.281 0.313,0.198 10 false UP 3.677,1.115 4.115,1.292 0.438,0.177 10 false UP 2.031,1.396 2.646,1.594 0.615,0.198 10 false DOWN 3.656,1.406 4.271,1.604 0.615,0.198 10 false DOWN 1,1.875 1.458,2.073 0.458,0.198 10 false GND 4.938,1.885 5.396,2.083 0.458,0.198 10 false GND 3.542,2.563 5.51,3.406 1.969,0.844 10 false Power Window Regulator Motor Assembly (for Driver Door) 0.938,2.583 2.542,3.313 1.604,0.729 10 false Multiplex Network Master Switch Assembly 1,4.323 1.458,4.521 0.458,0.198 10 false GND 2.26,3.51 2.573,3.708 0.313,0.198 10 false UP 2.021,3.833 2.635,4.031 0.615,0.198 10 false DOWN 2.083,4.156 2.542,4.354 0.458,0.198 10 false AUTO 3.667,4.167 4.125,4.365 0.458,0.198 10 false AUTO 3.656,3.854 4.271,4.052 0.615,0.198 10 false DOWN 3.677,3.531 4.177,3.729 0.5,0.198 10 false UP 5.083,3.531 5.24,3.729 0.156,0.198 10 false B 4.938,4.323 5.396,4.521 0.458,0.198 10 false GND 5.469,3.677 6.385,4.01 0.917,0.333 10 false DOOR F/R 0.969,5 2.542,5.708 1.573,0.708 10 false Power Window Regulator Switch Assembly 3.365,5 5.948,6.125 2.583,1.125 10 false Power Window Regulator Motor Assembly (for Front Passenger Door) 1,6.833 1.458,7.031 0.458,0.198 10 false GND 2.281,5.99 2.594,6.188 0.313,0.198 10 false UP 2.031,6.344 2.646,6.542 0.615,0.198 10 false DOWN 2.104,6.677 2.563,6.875 0.458,0.198 10 false AUTO 3.677,6 4.146,6.188 0.469,0.188 10 false UP 3.646,6.354 4.26,6.552 0.615,0.198 10 false DOWN 3.677,6.708 4.135,6.906 0.458,0.198 10 false AUTO 5.094,6.021 5.25,6.219 0.156,0.198 10 false B 4.938,6.844 5.396,7.042 0.458,0.198 10 false GND 5.458,6.156 6.688,6.354 1.229,0.198 10 false DOOR R/R 0.604,7.458 2.948,8.354 2.344,0.896 10 false Rear Power Window Regulator Switch Assembly (for RH Door) 3.365,7.479 5.938,8.104 2.573,0.625 10 false Power Window Regulator Motor Assembly (for Rear RH Door) 0.854,8.313 4.521,8.51 3.667,0.198 10 false : LIN Communication Line 0.75,1.01 1.063,1.208 0.313,0.198 10 false 11 0.74,1.781 1.052,1.979 0.313,0.198 10 false 12 2.542,1 2.854,1.198 0.313,0.198 10 false 20 2.542,1.323 2.854,1.521 0.313,0.198 10 false 15 3.417,1 3.729,1.198 0.313,0.198 10 false 10 3.479,1.313 3.635,1.51 0.156,0.198 10 false 7 5.313,1.01 5.469,1.208 0.156,0.198 10 false 2 5.302,1.792 5.458,1.99 0.156,0.198 10 false 1 3.542,2.406 3.854,2.604 0.313,0.198 10 false G4 5.302,3.427 5.458,3.625 0.156,0.198 10 false 2 5.302,4.208 5.458,4.406 0.156,0.198 10 false 1 3.406,3.417 3.719,3.615 0.313,0.198 10 false 10 3.479,3.75 3.635,3.948 0.156,0.198 10 false 7 3.49,4.063 3.646,4.26 0.156,0.198 10 false 4 2.573,3.417 2.729,3.615 0.156,0.198 10 false 5 2.573,3.75 2.729,3.948 0.156,0.198 10 false 4 2.573,4.073 2.729,4.271 0.156,0.198 10 false 8 0.792,4.219 0.948,4.417 0.156,0.198 10 false 7 0.927,2.427 1.24,2.625 0.313,0.198 10 false I2 0.969,4.844 1.281,5.042 0.313,0.198 10 false I3 3.365,4.823 3.677,5.021 0.313,0.198 10 false G5 3.438,5.906 3.75,6.104 0.313,0.198 10 false 10 3.5,6.24 3.656,6.438 0.156,0.198 10 false 7 3.5,6.583 3.656,6.781 0.156,0.198 10 false 4 2.573,5.917 2.729,6.115 0.156,0.198 10 false 5 2.573,6.26 2.729,6.458 0.156,0.198 10 false 4 2.573,6.604 2.729,6.802 0.156,0.198 10 false 8 0.792,6.74 0.948,6.938 0.156,0.198 10 false 7 0.604,7.302 0.917,7.5 0.313,0.198 10 false J2 3.375,7.323 3.688,7.521 0.313,0.198 10 false H5 5.302,5.917 5.458,6.115 0.156,0.198 10 false 2 5.292,6.719 5.448,6.917 0.156,0.198 10 false 1

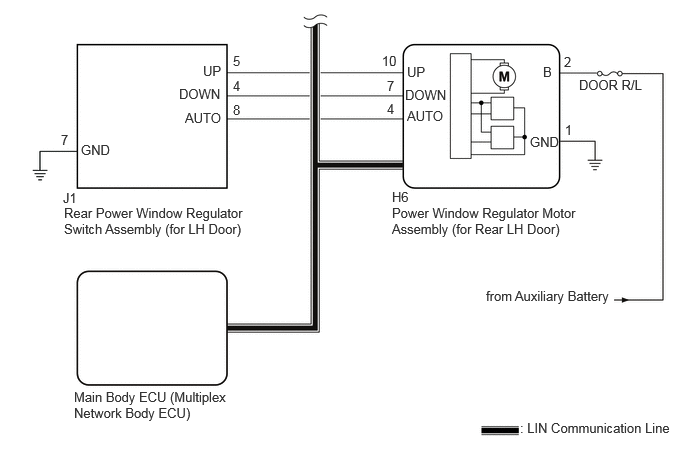

B520648E15
2.115,0.656 2.427,0.854 0.313,0.198 10 false UP 1.865,0.896 2.479,1.094 0.615,0.198 10 false DOWN 1.927,1.146 2.542,1.344 0.615,0.198 10 false AUTO 0.844,1.479 1.302,1.677 0.458,0.198 10 false GND 0.635,1.375 0.792,1.573 0.156,0.198 10 false 7 2.427,0.552 2.583,0.75 0.156,0.198 10 false 5 2.427,0.813 2.583,1.01 0.156,0.198 10 false 4 2.427,1.063 2.583,1.26 0.156,0.198 10 false 8 4.24,0.667 4.667,0.865 0.427,0.198 10 false UP 4.219,0.906 4.833,1.104 0.615,0.198 10 false DOWN 4.24,1.125 4.854,1.323 0.615,0.198 10 false AUTO 3.979,0.552 4.292,0.75 0.313,0.198 10 false 10 4.031,0.813 4.188,1.01 0.156,0.198 10 false 7 4.031,1.052 4.188,1.25 0.156,0.198 10 false 4 5.656,0.667 5.813,0.865 0.156,0.198 10 false B 5.875,0.563 6.031,0.76 0.156,0.198 10 false 2 5.885,1.271 6.042,1.469 0.156,0.198 10 false 1 5.521,1.396 5.979,1.594 0.458,0.198 10 false GND 6.031,0.802 6.958,1.063 0.927,0.26 10 false DOOR R/L 5.063,3 6.583,3.365 1.521,0.365 10 false from Auxiliary Battery 4.083,1.969 4.396,2.167 0.313,0.198 10 false H6 4.083,2.135 6.052,3.031 1.969,0.896 10 false Power Window Regulator Motor Assembly (for Rear LH Door) 0.656,1.979 0.969,2.177 0.313,0.198 10 false J1 0.667,2.135 2.563,3.198 1.896,1.063 10 false Rear Power Window Regulator Switch Assembly (for LH Door) 0.771,4.052 2.438,4.646 1.667,0.594 10 false Main Body ECU (Multiplex Network Body ECU) 5.417,4.375 7.063,4.646 1.646,0.271 10 false : LIN Communication Line

CAUTION / NOTICE / HINT

NOTICE:
·

DTC B2311 is stored in each power window regulator motor assembly.

·

If a power window regulator motor assembly has been replaced with a new one, initialize the power window control system.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>INITIALIZATION

·

If a power window regulator motor assembly and door window regulator sub-assembly have been removed and installed, or if a power window regulator motor assembly was reused when a door glass or door glass run was replaced, initialize the power window control system.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>INITIALIZATION

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING



PROCEDURE

1.CHECK FOR DTC
a.

Clear the DTCs.

Body Electrical > D-Door Motor > Clear DTCs
50002 124
Body Electrical > P-Door Motor > Clear DTCs
50002 144
Body Electrical > RL-Door Motor > Clear DTCs
50002 146
Body Electrical > RR-Door Motor > Clear DTCs
50002 145

Result:
Proceed to
NEXT



NEXT

2.CHECK FOR DTC
2.CHECK FOR DTC

Pre-procedure1

a.

Turn the ignition switch off.


b.

Wait for at least 10 seconds, and then turn the ignition switch to ON.


Procedure1

c.

Check for DTCs.

Body Electrical > D-Door Motor > Trouble Codes
50001 124
Body Electrical > P-Door Motor > Trouble Codes
50001 144
Body Electrical > RL-Door Motor > Trouble Codes
50001 146
Body Electrical > RR-Door Motor > Trouble Codes
50001 145
Result:
Result Proceed to
Any D-Door Motor DTCs in the table below are output A
Any P-Door Motor DTCs in the table below are output B
Any RL-Door Motor DTCs in the table below are output C
Any RR-Door Motor DTCs in the table below are output D
No DTCs in the table below are output E


Malfunction Content System Relevant DTC
Motor Malfunction D-Door Motor B2311 Motor Malfunction
P-Door Motor B2311 Motor Malfunction
RL-Door Motor B2311 Motor Malfunction
RR-Door Motor B2311 Motor Malfunction


Post-procedure1

d.

None



A

3.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door) - AUXILIARY BATTERY AND BODY GROUND)

B

4.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) - AUXILIARY BATTERY AND BODY GROUND)

C

5.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) - AUXILIARY BATTERY AND BODY GROUND)

D

6.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door) - AUXILIARY BATTERY AND BODY GROUND)

E

3.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door) - AUXILIARY BATTERY AND BODY GROUND)
a.
B471911C83
1.531,0.281 1.854,0.552 0.323,0.271 1.594,1.104 0.771,1.438 true 1.906,1.125 2.729,1.385 true 1.615,0.344 2.073,0.542 0.458,0.198 10 false G4 0.604,1.385 0.76,1.583 0.156,0.198 10 false B 2.802,1.365 3.26,1.563 0.458,0.198 10 false GND 0.167,0.094 0.479,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(Power Window Regulator Motor Assembly (for Driver Door))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(G4)Location & Routing

Click Connector(G4)Body>Front Door Wire RH / Front Door Wire LH>Power Window Regulator Motor Assembly LH (for Driver Door)

G4-2 (B) - G4-1 (GND) Always*1
Ignition switch off*2
11 to 14 V


*1: for Gasoline Model

*2: for HV Model



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(G4)Location & Routing

Click Connector(G4)Body>Front Door Wire RH / Front Door Wire LH>Power Window Regulator Motor Assembly LH (for Driver Door)

G4-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

7.PERFORM ACTIVE TEST USING GTS (APPLICABLE LOCATION)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door) - AUXILIARY BATTERY AND BODY GROUND)
a.
B471911C84
1.552,0.281 1.917,0.542 0.365,0.26 1.594,1.104 0.771,1.438 true 1.906,1.125 2.729,1.385 true 1.646,0.333 2.104,0.531 0.458,0.198 10 false G5 0.604,1.385 0.76,1.583 0.156,0.198 10 false B 2.802,1.365 3.26,1.563 0.458,0.198 10 false GND 0.188,0.104 0.5,0.302 0.313,0.198 10 false *a
*a Component without harness connected
(Power Window Regulator Motor Assembly (for Front Passenger Door))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(G5)Location & Routing

Click Connector(G5)Body>Front Door Wire RH / Front Door Wire LH>Power Window Regulator Motor Assembly RH (for Front Passenger Door)

G5-2 (B) - G5-1 (GND) Always*1
Ignition switch off*2
11 to 14 V


*1: for Gasoline Model

*2: for HV Model



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(G5)Location & Routing

Click Connector(G5)Body>Front Door Wire RH / Front Door Wire LH>Power Window Regulator Motor Assembly RH (for Front Passenger Door)

G5-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

7.PERFORM ACTIVE TEST USING GTS (APPLICABLE LOCATION)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) - AUXILIARY BATTERY AND BODY GROUND)
a.
B474754C23
1.479,0.375 1.917,0.646 0.438,0.271 0.938,1.51 1.563,1.135 false 1.875,1.135 2.563,1.5 false 0.146,0.104 0.458,0.302 0.313,0.198 10 false *a 1.604,0.417 1.917,0.615 0.313,0.198 10 false H6 0.792,1.479 1.104,1.677 0.313,0.198 10 false B 2.604,1.438 3.021,1.656 0.417,0.219 10 false GND
*a Component without harness connected
(Power Window Regulator Motor Assembly (for Rear LH Door))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(H6)Location & Routing

Click Connector(H6)Body>No. 1 Rear Door Wire / No. 2 Rear Door Wire>Power Window Regulator Motor Assembly LH (for Rear Door)

H6-2 (B) - H6-1 (GND) Always*1
Ignition switch off*2
11 to 14 V


*1: for Gasoline Model

*2: for HV Model



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(H6)Location & Routing

Click Connector(H6)Body>No. 1 Rear Door Wire / No. 2 Rear Door Wire>Power Window Regulator Motor Assembly LH (for Rear Door)

H6-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

7.PERFORM ACTIVE TEST USING GTS (APPLICABLE LOCATION)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door) - AUXILIARY BATTERY AND BODY GROUND)
a.
B474755C23
1.469,0.365 1.854,0.604 0.385,0.24 0.896,1.542 1.531,1.135 false 1.875,1.135 2.563,1.635 false 0.115,0.125 0.427,0.323 0.313,0.198 10 false *a 1.573,0.396 1.885,0.594 0.313,0.198 10 false H5 0.76,1.531 1.073,1.729 0.313,0.198 10 false B 2.604,1.625 3.094,1.844 0.49,0.219 10 false GND
*a Component without harness connected
(Power Window Regulator Motor Assembly (for Rear RH Door))


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(H5)Location & Routing

Click Connector(H5)Body>No. 1 Rear Door Wire / No. 2 Rear Door Wire>Power Window Regulator Motor Assembly RH (for Rear Door)

H5-2 (B) - H5-1 (GND) Always*1
Ignition switch off*2
11 to 14 V


*1: for Gasoline Model

*2: for HV Model



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(H5)Location & Routing

Click Connector(H5)Body>No. 1 Rear Door Wire / No. 2 Rear Door Wire>Power Window Regulator Motor Assembly RH (for Rear Door)

H5-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

7.PERFORM ACTIVE TEST USING GTS (APPLICABLE LOCATION)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.PERFORM ACTIVE TEST USING GTS (APPLICABLE LOCATION)
a.

Perform the Active Test according to the display on the GTS.

CAUTION:

Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.


HINT:

Perform the Active Test for the power window regulator motor assembly that has DTC B2311 stored in its ECU.


Body Electrical > D-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Power Window Power window OFF / DOWN / UP -
Body Electrical > P-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Power Window Power window OFF / DOWN / UP -
Body Electrical > RL-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Power Window Power window OFF / DOWN / UP -
Body Electrical > RR-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Power Window Power window OFF / DOWN / UP -
Body Electrical > D-Door Motor > Active Test
Tester Display
Power Window
50004 124 1
Body Electrical > P-Door Motor > Active Test
Tester Display
Power Window
50004 144 1
Body Electrical > RL-Door Motor > Active Test
Tester Display
Power Window
50004 146 1
Body Electrical > RR-Door Motor > Active Test
Tester Display
Power Window
50004 145 1
OK:

Each power window operates normally.



Result:
Result Proceed to
OK A
NG (Driver door power window) B
NG (Front passenger door power window)
NG (Rear LH door power window) C
NG (Rear RH door power window)



A

8.PERFORM INITIALIZATION (APPLICABLE LOCATION)

B

C

8.PERFORM INITIALIZATION (APPLICABLE LOCATION)
a.

Initialize the power window regulator motor assembly.

HINT:
·

Initialize the power window regulator motor assembly that has DTC B2311 stored in its ECU.




Result:
Proceed to
NEXT



NEXT

9.CHECK POWER WINDOW CONTROL SYSTEM (APPLICABLE LOCATION)
9.CHECK POWER WINDOW CONTROL SYSTEM (APPLICABLE LOCATION)
a.

Check that the power window operates normally by opening and closing it.

HINT:
·

Check the power window operation of the window where DTC B2311 has been stored.



OK:

Each power window operates normally.



Result:
Result Proceed to
OK A
NG (Driver door power window) B
NG (Front passenger door power window)
NG (Rear LH door power window) C
NG (Rear RH door power window)



A

10.CHECK WHETHER PARTS HAVE BEEN INSTALLED CORRECTLY

B

C

10.CHECK WHETHER PARTS HAVE BEEN INSTALLED CORRECTLY
a.

Check that the power window components are installed correctly.

HINT:

Initialize the power window regulator motor assembly that has DTC B2311 stored in its ECU.


OK:

Power window components are installed correctly.



Result:
Proceed to
OK
NG



OK

11.CHECK FOR DTC

NG

INSTALL PARTS CORRECTLY

11.CHECK FOR DTC

Pre-procedure1

a.

Turn the ignition switch off.


b.

Wait for at least 10 seconds, and then turn the ignition switch to ON.


Procedure1

c.

Check for DTCs.

Body Electrical > D-Door Motor > Trouble Codes
50001 124
Body Electrical > P-Door Motor > Trouble Codes
50001 144
Body Electrical > RL-Door Motor > Trouble Codes
50001 146
Body Electrical > RR-Door Motor > Trouble Codes
50001 145
Result:
Result Proceed to
Any D-Door Motor DTCs in the table below are output A
Any P-Door Motor DTCs in the table below are output B
Any RL-Door Motor DTCs in the table below are output C
Any RR-Door Motor DTCs in the table below are output D
No DTCs in the table below are output E


Malfunction Content System Relevant DTC
Motor Malfunction D-Door Motor B2311 Motor Malfunction
P-Door Motor B2311 Motor Malfunction
RL-Door Motor B2311 Motor Malfunction
RR-Door Motor B2311 Motor Malfunction


Post-procedure1

d.

None



A

B

C

D

E

END
