METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(for Optitron Meter Type)  B150013  Fuel Sender Circuit Open  B150113  Sub Fuel Sender Circuit Open


DESCRIPTION

FOR HV MODEL


The fuel sender gauge assembly is connected to the combination meter assembly via direct line. If there is an open or short in the direct line, the combination meter assembly stores DTC B150013.


FOR GASOLINE MODEL


The fuel sender gauge assembly and No. 2 fuel sender gauge assembly are connected to the combination meter assembly via direct line. If there is an open or short in the direct line, the combination meter assembly stores DTC B150013 or B150113.


DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B150013 Fuel Sender Circuit Open Diagnosis Condition:
·

Ignition switch ON

·

IG power source voltage is 9.5 V or more


Malfunction Status:
·

Voltage signal from fuel sender gauge assembly is 0.2 V or less

·

Voltage signal from fuel sender gauge assembly is 4.7 V or more


Malfunction Time:

10 seconds or more


·

Harness or connector

·

Fuel suction tube with pump and gauge assembly

·

Fuel sender gauge assembly

·

Combination meter assembly


Combination Meter A
B150113 Sub Fuel Sender Circuit Open Diagnosis Condition:
·

Ignition switch ON

·

IG power source voltage is 9.5 V or more


Malfunction Status:
·

Voltage signal from No. 2 fuel sender gauge assembly is 0.2 V or less

·

Voltage signal from No. 2 fuel sender gauge assembly is 4.7 V or more


Malfunction Time:

10 seconds or more


·

Harness or connector

·

Fuel tank vent tube assembly

·

No. 2 fuel sender gauge assembly

·

Combination meter assembly


Combination Meter A

WIRING DIAGRAM

FOR HV MODEL

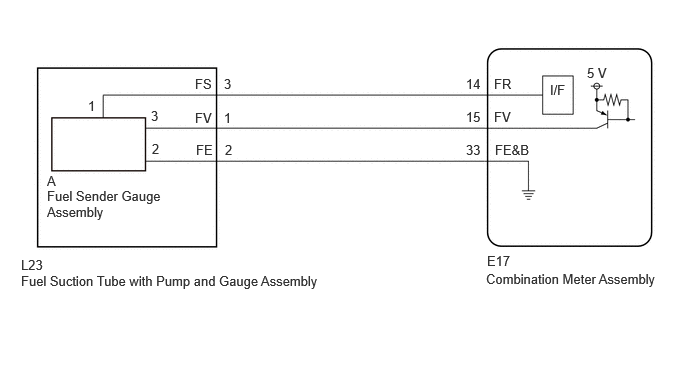

E401448E04
5.063,2.823 6.979,3.219 1.917,0.396 10 false Combination Meter Assembly 5.073,2.635 5.385,2.833 0.313,0.198 10 false E17 5.729,0.854 6.188,1.052 0.458,0.198 10 false I/F 6.115,0.677 6.573,0.875 0.458,0.198 10 false 5 V 5.146,0.792 5.458,0.99 0.313,0.198 10 false FR 5.146,1.135 5.458,1.333 0.313,0.198 10 false FV 5.156,1.479 5.771,1.677 0.615,0.198 10 false FE&B 4.854,0.792 5.167,0.99 0.313,0.198 10 false 14 4.854,1.135 5.167,1.333 0.313,0.198 10 false 15 4.854,1.479 5.167,1.677 0.313,0.198 10 false 33 0.219,2.844 4.708,3.208 4.49,0.365 10 false Fuel Suction Tube with Pump and Gauge Assembly 0.219,2.677 0.677,2.875 0.458,0.198 10 false L23 0.49,1.958 1.708,2.375 1.219,0.417 10 false Fuel Sender Gauge Assembly 2.031,1.146 2.344,1.344 0.313,0.198 10 false FV 2.031,0.792 2.344,0.99 0.313,0.198 10 false FS 2.042,1.479 2.354,1.677 0.313,0.198 10 false FE 2.333,0.792 2.49,0.99 0.156,0.198 10 false 3 2.333,1.146 2.49,1.344 0.156,0.198 10 false 1 2.344,1.479 2.5,1.677 0.156,0.198 10 false 2 0.917,1.021 1.073,1.219 0.156,0.198 10 false 1 1.583,1.469 1.74,1.667 0.156,0.198 10 false 2 1.573,1.125 1.729,1.323 0.156,0.198 10 false 3 0.49,1.802 0.646,2 0.156,0.198 10 false A


FOR GASOLINE MODEL

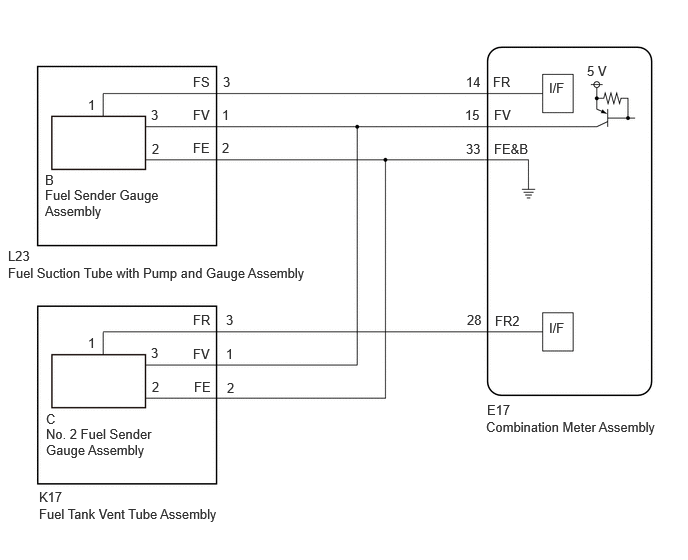

E401447E06
0.469,1.948 1.698,2.531 1.229,0.583 10 false Fuel Sender Gauge Assembly 0.479,4.438 1.625,4.969 1.146,0.531 10 false No. 2 Fuel Sender Gauge Assembly 0.083,2.76 4.521,2.958 4.438,0.198 10 false Fuel Suction Tube with Pump and Gauge Assembly 0.083,2.583 0.542,2.781 0.458,0.198 10 false L23 0.406,5.271 3.313,5.469 2.906,0.198 10 false Fuel Tank Vent Tube Assembly 0.406,5.094 0.865,5.292 0.458,0.198 10 false K17 5.063,4.365 6.885,4.802 1.823,0.438 10 false Combination Meter Assembly 5.073,4.188 5.469,4.427 0.396,0.24 10 false E17 5.719,3.333 6.177,3.531 0.458,0.198 10 false I/F 5.719,0.833 6.177,1.031 0.458,0.198 10 false I/F 6.115,0.656 6.573,0.854 0.458,0.198 10 false 5 V 5.146,1.115 5.458,1.313 0.313,0.198 10 false FV 4.844,1.115 5.177,1.302 0.333,0.188 10 false 15 5.146,1.469 5.76,1.667 0.615,0.198 10 false FE&B 4.854,1.469 5.188,1.656 0.333,0.188 10 false 33 5.135,0.771 5.448,0.969 0.313,0.198 10 false FR 4.854,0.771 5.167,0.969 0.313,0.198 10 false 14 5.156,3.26 5.5,3.458 0.344,0.198 10 false FR2 4.865,3.25 5.198,3.438 0.333,0.188 10 false 28 2.313,1.115 2.469,1.313 0.156,0.198 10 false 1 2.01,1.115 2.323,1.313 0.313,0.198 10 false FV 2.01,0.771 2.323,0.969 0.313,0.198 10 false FS 2.323,0.771 2.479,0.969 0.156,0.198 10 false 3 2.313,1.458 2.469,1.656 0.156,0.198 10 false 2 2.01,1.458 2.323,1.656 0.313,0.198 10 false FE 1.573,1.115 1.729,1.313 0.156,0.198 10 false 3 0.917,1.01 1.073,1.208 0.156,0.198 10 false 1 1.583,1.469 1.74,1.667 0.156,0.198 10 false 2 0.917,3.49 1.073,3.688 0.156,0.198 10 false 1 1.573,3.594 1.729,3.792 0.156,0.198 10 false 3 1.583,3.948 1.74,4.146 0.156,0.198 10 false 2 2.01,3.25 2.323,3.448 0.313,0.198 10 false FR 2.01,3.604 2.323,3.802 0.313,0.198 10 false FV 2.021,3.948 2.333,4.146 0.313,0.198 10 false FE 2.354,3.25 2.51,3.448 0.156,0.198 10 false 3 2.365,3.958 2.521,4.156 0.156,0.198 10 false 2 2.354,3.604 2.51,3.802 0.156,0.198 10 false 1 0.469,1.792 0.625,1.99 0.156,0.198 10 false B 0.479,4.281 0.635,4.479 0.156,0.198 10 false C


CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY



PROCEDURE

1.CHECK FOR DTC
a.

Check for DTCs.

Body Electrical > Combination Meter > Trouble Codes
50001 409
Result:
Result Proceed to
Only B150013 is output A
Only B150113 is output B
B150013 and B150113 are output C




A

2.CONFIRM MODEL

B

11.READ VALUE USING GTS

C

15.READ VALUE USING GTS
2.CONFIRM MODEL
a.

Choose the model to be inspected.

Result:
Result Proceed to
for HV Model A
for Gasoline Model B




A

3.READ VALUE USING GTS

B

7.READ VALUE USING GTS
3.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset
·

Fuel receiver gauge indicates F: 47.66 L

·

Fuel receiver gauge indicates 3/4: 37.58 L

·

Fuel receiver gauge indicates 1/2: 27.50 L

·

Fuel receiver gauge indicates 1/4: 13.75 L

·

Fuel receiver gauge indicates E: 5.50 L


The detected value of the fuel sender gauge assembly is displayed.
Body Electrical > Combination Meter > Data List
Tester Display
Fuel Input
50003 409 20
Result:
Result Proceed to
Fuel level data can be displayed on the GTS A
Fuel level data cannot be displayed on the GTS B




A

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


B

4.INSPECT FUEL SENDER GAUGE ASSEMBLY
5.INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
a.
E436087C07
0.25,1.333 0.667,1.583 0.417,0.25 0.25,3.448 0.667,3.698 0.417,0.25 2.104,1.271 2.427,0.927 true 1.719,1.229 1.719,0.75 true 1.323,1.26 0.99,0.906 true 0.125,0.188 1.563,0.354 1.438,0.167 10 false *a 0.344,1.396 0.76,1.594 0.417,0.198 10 false L23 0.406,3.479 0.74,3.729 0.333,0.25 10 false A 0.823,0.719 1.156,0.969 0.333,0.25 10 false FS 1.646,0.563 1.979,0.813 0.333,0.25 10 false FE 2.469,0.771 2.802,1.021 0.333,0.25 10 false FV
*a Component without harness connected
(Fuel Suction Tube with Pump and Gauge Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L23)Location & Routing

Click Connector(L23)Body>No. 2 Floor Wire>Fuel Suction Tube with Pump and Gage Assembly

L23-1 (FV) - A-3 Always Below 1 Ω
L23-2 (FE) - A-2 Always Below 1 Ω
L23-3 (FS) - A-1 Always Below 1 Ω
L23-1 (FV) - L23-2 (FE)
or
A-3 - A-2 		Always 10 kΩ or higher
L23-1 (FV) - L23-3 (FS)
or
A-3 - A-1 		Always 10 kΩ or higher
L23-2 (FE) - L23-3 (FS)
or
A-2 - A-1 		Always 10 kΩ or higher


Result:
Proceed to
OK
NG




OK

6.CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click hereEngine / Hybrid System>A25D-FXS, A25F-FXS (FUEL)>FUEL PUMP>REMOVAL


6.CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)

Pre-procedure1

a.

Disconnect the E17 combination meter assembly connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L23,E17)Location & Routing

Click Connector(L23)Body>No. 2 Floor Wire>Fuel Suction Tube with Pump and Gage Assembly

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Meter Assembly

L23-1 (FV) -E17-15 (FV) Always Below 1 Ω
L23-2 (FE) -E17-33 (FE&B) Always Below 1 Ω
L23-3 (FS) -E17-14 (FR) Always Below 1 Ω
L23-1 (FV) or E17-15 (FV) - Body ground Always 10 kΩ or higher
L23-3 (FS) or E17-14 (FR) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset
·

Fuel receiver gauge indicates F: 47.13 L*

·

Fuel receiver gauge indicates 3/4: 37.66 L*

·

Fuel receiver gauge indicates 1/2: 27.11 L

·

Fuel receiver gauge indicates 1/4: 13.75 L

·

Fuel receiver gauge indicates E: 5.71 L


The detected value of the fuel sender gauge assembly is displayed.

*: Combined value of "Fuel Input" and "Sub Fuel Input"


Body Electrical > Combination Meter > Data List
Tester Display
Fuel Input
50003 409 20
Result:
Result Proceed to
Fuel level data can be displayed on the GTS A
Fuel level data cannot be displayed on the GTS B




A

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


B

8.INSPECT FUEL SENDER GAUGE ASSEMBLY
9.INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
a.
E436087C08
0.25,1.333 0.667,1.583 0.417,0.25 0.25,3.448 0.667,3.698 0.417,0.25 2.104,1.271 2.427,0.927 true 1.719,1.229 1.719,0.75 true 1.323,1.26 0.99,0.906 true 0.125,0.188 1.563,0.354 1.438,0.167 10 false *a 0.344,1.385 0.76,1.583 0.417,0.198 10 false L23 0.406,3.479 0.74,3.729 0.333,0.25 10 false B 0.823,0.719 1.156,0.969 0.333,0.25 10 false FS 1.646,0.563 1.979,0.813 0.333,0.25 10 false FE 2.469,0.771 2.802,1.021 0.333,0.25 10 false FV
*a Component without harness connected
(Fuel Suction Tube with Pump and Gauge Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L23)Location & Routing

Click Connector(L23)Body>No. 2 Floor Wire>Fuel Suction Tube with Pump and Gage Assembly

L23-1 (FV) - B-3 Always Below 1 Ω
L23-2 (FE) - B-2 Always Below 1 Ω
L23-3 (FS) - B-1 Always Below 1 Ω


Result:
Proceed to
OK
NG




OK

10.CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL PUMP>REMOVAL


10.CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)

Pre-procedure1

a.

Disconnect the E17 combination meter assembly connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L23,E17)Location & Routing

Click Connector(L23)Body>No. 2 Floor Wire>Fuel Suction Tube with Pump and Gage Assembly

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Meter Assembly

L23-1 (FV) - E17-15 (FV) Always Below 1 Ω
L23-2 (FE) - E17-33 (FE&B) Always Below 1 Ω
L23-3 (FS) - E17-14 (FR) Always Below 1 Ω
L23-3 (FS) or E17-14 (FR) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

11.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Sub Fuel Input Fuel level input Min.: 0 L, Max.: 655.35 L or Unset
·

Fuel receiver gauge indicates F: 47.13 L*

·

Fuel receiver gauge indicates 3/4: 37.66 L*

·

Fuel receiver gauge indicates 1/2: 28.18 L


The detected value of the No. 2 fuel sender gauge assembly is displayed.

*: Combined value of "Fuel Input" and "Sub Fuel Input"


Body Electrical > Combination Meter > Data List
Tester Display
Sub Fuel Input
50003 409 21
Result:
Result Proceed to
Fuel level data can be displayed on the GTS A
Fuel level data cannot be displayed on the GTS B




A

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


B

12.INSPECT NO. 2 FUEL SENDER GAUGE ASSEMBLY
13.INSPECT FUEL TANK VENT TUBE ASSEMBLY
a.
E436087C09
0.25,1.333 0.667,1.583 0.417,0.25 0.25,3.448 0.667,3.698 0.417,0.25 2.104,1.271 2.427,0.927 true 1.719,1.229 1.719,0.75 true 1.323,1.26 0.99,0.906 true 0.125,0.188 1.563,0.354 1.438,0.167 10 false *a 0.344,1.385 0.76,1.583 0.417,0.198 10 false K17 0.406,3.479 0.74,3.729 0.333,0.25 10 false C 0.823,0.719 1.156,0.969 0.333,0.25 10 false FR 1.646,0.563 1.979,0.813 0.333,0.25 10 false FE 2.469,0.771 2.802,1.021 0.333,0.25 10 false FV
*a Component without harness connected
(Fuel Tank Vent Tube Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(K17)Location & Routing

Click Connector(K17)Body>Floor Wire>Fuel Tank Vent Tube Assembly

K17-1 (FV) - C-3 Always Below 1 Ω
K17-2 (FE) - C-2 Always Below 1 Ω
K17-3 (FR) - C-1 Always Below 1 Ω


Result:
Proceed to
OK
NG




OK

14.CHECK HARNESS AND CONNECTOR (FUEL TANK VENT TUBE ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPLACE FUEL TANK VENT TUBE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL SENDER GAUGE ASSEMBLY>REMOVAL


14.CHECK HARNESS AND CONNECTOR (FUEL TANK VENT TUBE ASSEMBLY - COMBINATION METER ASSEMBLY)

Pre-procedure1

a.

Disconnect the E17 combination meter assembly connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(K17,E17)Location & Routing

Click Connector(K17)Body>Floor Wire>Fuel Tank Vent Tube Assembly

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Meter Assembly

K17-1 (FV) - E17-15 (FV) Always Below 1 Ω
K17-2 (FE) - E17-33 (FE&B) Always Below 1 Ω
K17-3 (FR) - E17-28 (FR2) Always Below 1 Ω
K17-3 (FR) or E17-28 (FR2) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

15.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Fuel Input Fuel level input Min.: 0 L, Max.: 655.34 L or Unset
·

Fuel receiver gauge indicates F: 47.13 L*

·

Fuel receiver gauge indicates 3/4: 37.66 L*

·

Fuel receiver gauge indicates 1/2: 27.11 L

·

Fuel receiver gauge indicates 1/4: 13.75 L

·

Fuel receiver gauge indicates E: 5.71 L


The detected value of the fuel sender gauge assembly is displayed.
Sub Fuel Input Fuel level input Min.: 0 L, Max.: 655.34 L or Unset
·

Fuel receiver gauge indicates F: 47.13 L*

·

Fuel receiver gauge indicates 3/4: 37.66 L*

·

Fuel receiver gauge indicates 1/2: 28.18 L


The detected value of the No. 2 fuel sender gauge assembly is displayed.

*: Combined value of "Fuel Input" and "Sub Fuel Input"


Body Electrical > Combination Meter > Data List
Tester Display
Fuel Input
Sub Fuel Input
50003 409 20,21
Result:
Result Proceed to
Fuel level data can be displayed on the GTS A
Fuel level data cannot be displayed on the GTS B




A

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


B

16.INSPECT FUEL SENDER GAUGE ASSEMBLY
17.INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
a.
E436087C08
0.25,1.333 0.667,1.583 0.417,0.25 0.25,3.448 0.667,3.698 0.417,0.25 2.104,1.271 2.427,0.927 true 1.719,1.229 1.719,0.75 true 1.323,1.26 0.99,0.906 true 0.125,0.188 1.563,0.354 1.438,0.167 10 false *a 0.344,1.385 0.76,1.583 0.417,0.198 10 false L23 0.406,3.479 0.74,3.729 0.333,0.25 10 false B 0.823,0.719 1.156,0.969 0.333,0.25 10 false FS 1.646,0.563 1.979,0.813 0.333,0.25 10 false FE 2.469,0.771 2.802,1.021 0.333,0.25 10 false FV
*a Component without harness connected
(Fuel Suction Tube with Pump and Gauge Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L23)Location & Routing

Click Connector(L23)Body>No. 2 Floor Wire>Fuel Suction Tube with Pump and Gage Assembly

L23-1 (FV) - L23-2 (FE)
or
B-3 - B-2 		Always 10 kΩ or higher
L23-1 (FV) - L23-3 (FS)
or
B-3 - B-1 		Always 10 kΩ or higher
L23-2 (FE) - L23-3 (FS)
or
B-2 - B-1 		Always 10 kΩ or higher


Result:
Proceed to
OK
NG




OK

18.INSPECT NO. 2 FUEL SENDER GAUGE ASSEMBLY

NG

REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL PUMP>REMOVAL


19.INSPECT FUEL TANK VENT TUBE ASSEMBLY
a.
E436087C09
0.25,1.333 0.667,1.583 0.417,0.25 0.25,3.448 0.667,3.698 0.417,0.25 2.104,1.271 2.427,0.927 true 1.719,1.229 1.719,0.75 true 1.323,1.26 0.99,0.906 true 0.125,0.188 1.563,0.354 1.438,0.167 10 false *a 0.344,1.385 0.76,1.583 0.417,0.198 10 false K17 0.406,3.479 0.74,3.729 0.333,0.25 10 false C 0.823,0.719 1.156,0.969 0.333,0.25 10 false FR 1.646,0.563 1.979,0.813 0.333,0.25 10 false FE 2.469,0.771 2.802,1.021 0.333,0.25 10 false FV
*a Component without harness connected
(Fuel Tank Vent Tube Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(K17)Location & Routing

Click Connector(K17)Body>Floor Wire>Fuel Tank Vent Tube Assembly

K17-1 (FV) - K17-3 (FR)
or
C-3 - C-1 		Always 10 kΩ or higher
K17-1 (FV) - K17-2 (FE)
or
C-3 - C-2 		Always 10 kΩ or higher
K17-2 (FE) - K17-3 (FR)
or
C-2 - C-1 		Always 10 kΩ or higher


Result:
Proceed to
OK
NG




OK

20.CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY AND FUEL TANK VENT TUBE ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPLACE FUEL TANK VENT TUBE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL SENDER GAUGE ASSEMBLY>REMOVAL


20.CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY AND FUEL TANK VENT TUBE ASSEMBLY - COMBINATION METER ASSEMBLY)

Pre-procedure1

a.

Disconnect the E17 combination meter assembly connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L23,K17,E17)Location & Routing

Click Connector(L23)Body>No. 2 Floor Wire>Fuel Suction Tube with Pump and Gage Assembly

Click Connector(K17)Body>Floor Wire>Fuel Tank Vent Tube Assembly

Click Connector(E17)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Meter Assembly

L23-1 (FV) or K17-1 (FV) - E17-15 (FV) Always Below 1 Ω
L23-2 (FE) or K17-2 (FE) - E17-33 (FE&B) Always Below 1 Ω
L23-1 (FV), K17-1 (FV) or E17-15 (FV) - Body ground Always 10 kΩ or higher
L23-3 (FS) or E17-14 (FR) - Body ground Always 10 kΩ or higher
K17-3 (FR) or E17-28 (FR2) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
