RM38N0EC _58 Vehicle Interior _111835 METER / GAUGE / DISPLAY _0504957 METER / GAUGE SYSTEM(for Optitron Meter Type) J

METER / GAUGE / DISPLAY METER / GAUGE SYSTEM(for Optitron Meter Type) Speedometer Malfunction

DESCRIPTION

FOR HV MODEL

The combination meter assembly receives vehicle speed signals from the No. 2 skid control ECU (brake actuator assembly) via CAN communication. The speed sensor detects the wheel speed and sends the appropriate signals to the No. 2 skid control ECU (brake actuator assembly). The No. 2 skid control ECU (brake actuator assembly) supplies power to the vehicle speed sensor. The No. 2 skid control ECU (brake actuator assembly) detects vehicle speed signals based on pulses of the voltage.

FOR GASOLINE MODEL

The combination meter assembly receives vehicle speed signals from the skid control ECU (brake actuator assembly) via CAN communication. The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU (brake actuator assembly). The skid control ECU (brake actuator assembly) supplies power to the vehicle speed sensor. The skid control ECU (brake actuator assembly) detects vehicle speed signals based on pulses of the voltage.

WIRING DIAGRAM

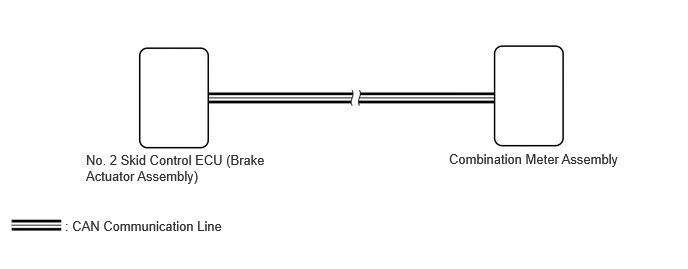

FOR HV MODEL

0.677,2.271 3.042,2.521 2.365,0.25 10 false : CAN Communication Line 4.677,1.573 6.656,1.979 1.979,0.406 10 false Combination Meter Assembly 0.896,1.583 2.833,2.156 1.938,0.573 10 false No. 2 Skid Control ECU (Brake Actuator Assembly)

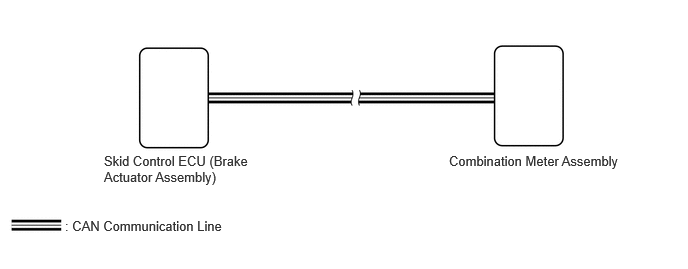

FOR GASOLINE MODEL

0.677,2.271 3.042,2.521 2.365,0.25 10 false : CAN Communication Line 4.677,1.594 6.656,2 1.979,0.406 10 false Combination Meter Assembly 1.083,1.594 2.635,2.073 1.552,0.479 10 false Skid Control ECU (Brake Actuator Assembly)

CAUTION / NOTICE / HINT

NOTICE:: ·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing any of the following ECUs, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY202111,999999,_V1,_111780,_0504977,RM100000001ZKRX,

-

Combination meter assembly

-

No. 2 skid control ECU (brake actuator assembly)*1

-

Skid control ECU (brake actuator assembly)*2

*1: for HV Model

*2: for Gasoline Model

·

Before starting the following inspection, check that the tire size and tire pressures are as specified.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION202111,999999,_53,_111809,_0502514,RM100000001ZACU,

PROCEDURE

1.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
for HV Model	A
for Gasoline Model	B

2.CHECK CAN COMMUNICATION SYSTEM

5.CHECK CAN COMMUNICATION SYSTEM

2.CHECK CAN COMMUNICATION SYSTEM

Check if CAN communication DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>DIAGNOSIS SYSTEM202111,202203,_57,_111829,_0501336,RM100000001Z5K4,202203,202303,_57,_111829,_0501336,RM10000000220XG,202303,202406,_57,_111829,_0501336,RM100000002A0UV,202406,202409,_57,_111829,_0501336,RM100000002M2MU,202409,999999,_57,_111829,_0501336,RM100000002NYQH,

Result:

Result	Proceed to
DTCs are not output	A
DTCs are output	B

3.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING202111,202203,_57,_111829,_0501336,RM100000001Z5K1,202203,202303,_57,_111829,_0501336,RM10000000220XE,202303,999999,_57,_111829,_0501336,RM100000002AL7W,

3.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

Check if electronically controlled brake system DTCs are output.

Chassis > Brake/EPB > Trouble Codes: 50001 435

Chassis > Brake Booster > Trouble Codes: 50001 466

Result:

Result	Proceed to
DTCs are not output	A
DTCs are output	B

4.PERFORM ACTIVE TEST USING GTS

GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>DIAGNOSTIC TROUBLE CODE CHART202111,999999,_54,_111814,_0500671,RM100000001Z2ZD,

4.PERFORM ACTIVE TEST USING GTS

Perform the Active Test according to the display on the GTS.

Body Electrical > Combination Meter > Active Test

Tester Display	Measurement Item	Control Range	Diagnostic Note
Speedometer Operation (0km/h,0MPH)	Speedometer (0 km/h, 0 mph)	ON
Speedometer Operation (40km/h,40MPH)	Speedometer (40 km/h, 40 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (80km/h,80MPH)	Speedometer (80 km/h, 80 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (120km/h,120MPH)	Speedometer (120 km/h, 120 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (160km/h,160MPH)	Speedometer (160 km/h, 160 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (200km/h,200MPH)	Speedometer (200 km/h, 200 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (240km/h,240MPH)	Speedometer (240 km/h, 240 mph)	ON	When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.

*: For the tolerance of each Active Test, refer to On-vehicle Inspection.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for Optitron Meter Type)>ON-VEHICLE INSPECTION202111,999999,_58,_111835,_0504957,RM100000001ZKLE,

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (0km/h,0MPH)

50004 409 199

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (40km/h,40MPH)

50004 409 200

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (80km/h,80MPH)

50004 409 201

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (120km/h,120MPH)

50004 409 202

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (160km/h,160MPH)

50004 409 203

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (200km/h,200MPH)

50004 409 204

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (240km/h,240MPH)

50004 409 205

Result:

Result	Proceed to
Active Test can be performed correctly	A
Active Test cannot be performed correctly	B

REPLACE NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL202111,202203,_54,_111814,_0500722,RM100000001Z37A,202203,202303,_54,_111814,_0500722,RM1000000022E3V,202303,202406,_54,_111814,_0500722,RM100000002B2OC,202406,999999,_54,_111814,_0500722,RM100000002MRSA,

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202111,202203,_58,_111835,_0501288,RM100000001Z5FJ,202203,202303,_58,_111835,_0501288,RM1000000022EX1,202303,202406,_58,_111835,_0501288,RM100000002AL91,202406,999999,_58,_111835,_0501288,RM100000002MQF3,

5.CHECK CAN COMMUNICATION SYSTEM

Check if CAN communication DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>DIAGNOSIS SYSTEM202111,202203,_57,_111829,_0499998,RM100000001Z135,202203,202303,_57,_111829,_0499998,RM100000002208G,202303,202406,_57,_111829,_0499998,RM10000000291NB,202406,202409,_57,_111829,_0499998,RM100000002L89Q,202409,999999,_57,_111829,_0499998,RM100000002O6WO,

Result:

Result	Proceed to
DTCs are not output	A
DTCs are output	B

6.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING202111,202203,_57,_111829,_0499998,RM100000001Z134,202203,202303,_57,_111829,_0499998,RM100000002205J,202303,999999,_57,_111829,_0499998,RM10000000291N8,

6.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

Check if electronically controlled brake system DTCs are output.

Chassis > Brake/EPB > Trouble Codes: 50001 435

Result:

Result	Proceed to
DTCs are not output	A
DTCs are output	B

7.PERFORM ACTIVE TEST USING GTS

GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model)>DIAGNOSTIC TROUBLE CODE CHART202111,202203,_54,_111814,_0503031,RM100000001ZCX3,202203,202303,_54,_111814,_0503031,RM1000000022G9Y,202303,999999,_54,_111814,_0503031,RM100000002A4KO,

7.PERFORM ACTIVE TEST USING GTS

Perform the Active Test according to the display on the GTS.

Body Electrical > Combination Meter > Active Test

Tester Display	Measurement Item	Control Range	Diagnostic Note
Speedometer Operation (0km/h,0MPH)	Speedometer (0 km/h, 0 mph)	ON
Speedometer Operation (40km/h,40MPH)	Speedometer (40 km/h, 40 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (80km/h,80MPH)	Speedometer (80 km/h, 80 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (120km/h,120MPH)	Speedometer (120 km/h, 120 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (160km/h,160MPH)	Speedometer (160 km/h, 160 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (200km/h,200MPH)	Speedometer (200 km/h, 200 mph)	ON	The value displayed on the speedometer may deviate.*
Speedometer Operation (240km/h,240MPH)	Speedometer (240 km/h, 240 mph)	ON	When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.

*: For the tolerance of each Active Test, refer to On-vehicle Inspection.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for Optitron Meter Type)>ON-VEHICLE INSPECTION202111,999999,_58,_111835,_0504957,RM100000001ZKLE,

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (0km/h,0MPH)

50004 409 199

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (40km/h,40MPH)

50004 409 200

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (80km/h,80MPH)

50004 409 201

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (120km/h,120MPH)

50004 409 202

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (160km/h,160MPH)

50004 409 203

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (200km/h,200MPH)

50004 409 204

Body Electrical > Combination Meter > Active Test

Tester Display
Speedometer Operation (240km/h,240MPH)

50004 409 205

Result:

Result	Proceed to
Active Test can be performed correctly	A
Active Test cannot be performed correctly	B

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL202111,202203,_54,_111814,_0500728,RM100000001Z37U,202203,202303,_54,_111814,_0500728,RM1000000022E3W,202303,202406,_54,_111814,_0500728,RM100000002B2O5,202406,999999,_54,_111814,_0500728,RM100000002MRSD,

REPLACE COMBINATION METER ASSEMBLY
