ADVANCED DRIVER ASSISTANCE SYSTEM  AUTOMATIC HIGH BEAM SYSTEM  Automatic High Beam Switch Indicator does not Come ON


DESCRIPTION

When the automatic high beam system is on, the main body ECU (multiplex network body ECU) illuminates the auto high beam switch indicator.

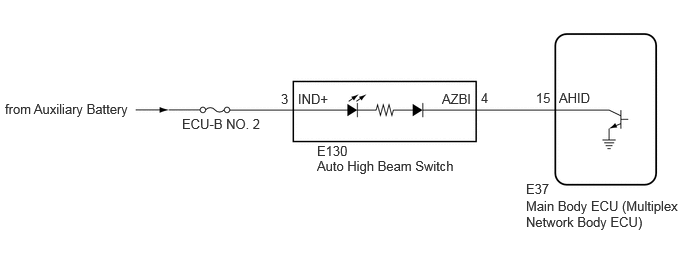

WIRING DIAGRAM

E367187E36
3.302,1.646 4.875,1.927 1.573,0.281 10 false Auto High Beam Switch 3.302,1.49 3.667,1.667 0.365,0.177 10 false E130 3.104,0.948 3.469,1.125 0.365,0.177 10 false IND+ 2.927,0.948 3.292,1.125 0.365,0.177 10 false 3 4.604,0.948 5.031,1.156 0.427,0.208 10 false AZBI 5.01,0.938 5.375,1.115 0.365,0.177 10 false 4 5.823,0.938 6.25,1.146 0.427,0.208 10 false AHID 5.479,2.063 7.125,2.51 1.646,0.448 10 false Main Body ECU (Multiplex Network Body ECU) 5.583,0.938 5.948,1.115 0.365,0.177 10 false 15 5.479,1.885 5.844,2.063 0.365,0.177 10 false E37 1.896,1.208 3.469,1.49 1.573,0.281 10 false ECU-B NO. 2 0.052,1.052 1.802,1.417 1.75,0.365 10 false from Auxiliary Battery

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.



PROCEDURE

1.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Automatic High Beam Switch Light Auto high beam switch indicator light OFF or ON -
Body Electrical > Main Body > Active Test
Tester Display
Automatic High Beam Switch Light
50004 449 54
OK:

Auto high beam switch indicator light illuminates.



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT AUTO HIGH BEAM SWITCH
2.INSPECT AUTO HIGH BEAM SWITCH

OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE - AUTO HIGH BEAM SWITCH)

NG

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE - AUTO HIGH BEAM SWITCH)
a.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(E130)Location & Routing

Click Connector(E130)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Auto High Beam Switch

E130-3 (IND+) - Body ground Ignition switch off 11 to 14 V



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (AUTO HIGH BEAM SWITCH - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (AUTO HIGH BEAM SWITCH - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))
a.

Disconnect the E37 main body ECU (multiplex network body ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E130,E37)Location & Routing

Click Connector(E130)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Auto High Beam Switch

Click Connector(E37)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Multiplex Network Body ECU

E130-4 (AZBI) - E37-15 (AHID) Always Below 1 Ω
E130-4 (AZBI) or E37-15 (AHID) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
