ADVANCED DRIVER ASSISTANCE SYSTEM AUTOMATIC HIGH BEAM MAIN SWITCH INSPECTION

PROCEDURE

Hide Display 84153 1.INSPECT AUTO HIGH BEAM SWITCH

Inspect the automatic high beam switch.

1.427,0.146 1.906,0.385 0.479,0.24 1.542,1.833 1.625,1.333 true 1.219,1.823 1.385,1.323 true 0.927,1.823 1.177,1.323 true 1.917,1.823 1.833,1.323 true 2.208,1.844 2.042,1.344 true 2.51,1.844 2.26,1.344 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 0.75,1.865 1.365,2.063 0.615,0.198 10 false ILL+ 2.5,1.865 3.115,2.063 0.615,0.198 10 false ILL- 1.125,1.865 1.438,2.063 0.313,0.198 10 false +B 1.427,1.865 2.042,2.063 0.615,0.198 10 false AZBI 1.833,1.865 2.448,2.063 0.615,0.198 10 false IND+ 2.229,1.865 2.385,2.063 0.156,0.198 10 false E 1.5,0.188 2.115,0.385 0.615,0.198 10 false E130

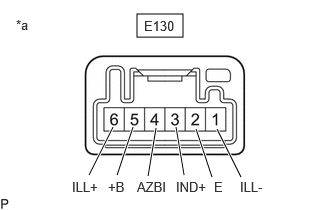

*a	Component without harness connected (Auto High Beam Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
If the result is not as specified, replace the auto high beam switch.
Click Location & Routing(E130)Location & Routingewd_type=routing;type=c;code=E130 Click Connector(E130)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Auto High Beam Switchewd_type=component;type=c;code=E130;pinno=5,2
E130-5 (+B) - E130-2 (E)	Automatic high beam main switch off	10 kΩ or higher
E130-5 (+B) - E130-2 (E)	Automatic high beam main switch on	Below 1 Ω

Illumination Inspection

Apply auxiliary battery voltage to the auto high beam switch and check that the switch illuminates.

OK:

Switch Illumination
Tester Connection	Specified Condition
Click Location & Routing(E130)Location & Routingewd_type=routing;type=c;code=E130 Click Connector(E130)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Auto High Beam Switchewd_type=component;type=c;code=E130;pinno=6,1
Auxiliary battery positive (+) - E130-6 (ILL+) Auxiliary battery negative (-) - E130-1 (ILL-)	Switch illumination illuminates

OK:

Switch Indicator
Tester Connection	Specified Condition
Click Location & Routing(E130)Location & Routingewd_type=routing;type=c;code=E130 Click Connector(E130)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Auto High Beam Switchewd_type=component;type=c;code=E130;pinno=3,4
Auxiliary battery positive (+) - E130-3 (IND+) Auxiliary battery negative (-) - E130-4 (AZBI)	Switch indicator illuminates

If the result is not as specified, replace the auto high beam switch.
