RM38N0EC _57 Power Source / Network _111829 NETWORKING _0503731 NETWORK GATEWAY ECU A

NETWORKING NETWORK GATEWAY ECU INSTALLATION

PROCEDURE

Hide Display 89111 1.INSTALL CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

0,0 0,0 false

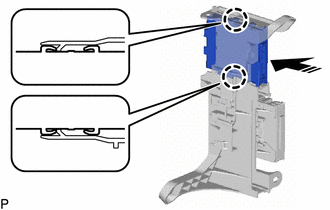

Install in this Direction

Engage the 2 claws to install the central gateway ECU (network gateway ECU) as shown in the illustration.

NOTICE:: Make sure that the central gateway ECU (network gateway ECU) is securely installed.

Hide Display 82877 2.INSTALL ECU INTEGRATION BOX RH

Engage the guide and claw.

Install the ECU integration box RH with the bolt and nut.

Torque:: Nut : 5.5 N*m (56 kgf*cm, 49 in.*lbf); Bolt : 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Engage the clamp.

Connect each connector.

Hide Display 55433B 3.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Hide Display 4.INSTALL CONSOLE BOX ASSEMBLY

Hide Display 55550 5.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

Hide Display 55607 6.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide Display 62111C 7.INSTALL COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0045,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0045,

Hide Display 67913B 8.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0047,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0047,

Hide Display 9.UPDATE ECU SECURITY KEY
