PARKING BRAKE  ELECTRIC PARKING BRAKE SYSTEM(for Gasoline Model)  C061012  Right Electric Parking Brake Actuator Control Circuit Short to Battery


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Memory DTC Output from Priority Note
C061012 Right Electric Parking Brake Actuator Control Circuit Short to Battery
·

Diagnosis Condition:

Electric parking brake not operating

·

Malfunction Status:

The ECU power supply is normal but there is a malfunction in the electric parking brake actuator RH internal circuit (short to +B).

·

Detection Time:

Approximately 1 second


·

Parking brake actuator assembly RH

·

No. 1 parking brake wire assembly

·

Wire harness and connector

·

Skid control ECU (brake actuator assembly)


DTC stored Brake/EPB A An electric parking brake system malfunction is displayed on the multi-information display.

PROCEDURE

1.CHECK FOR SHORT TO +B

Pre-procedure1

a.

Turn the ignition switch off.


b.

Make sure the No. 1 parking brake wire assembly is securely installed.


c.

Disconnect the j1 parking brake actuator assembly RH connector.


Procedure1

d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(j1)Location & Routing

Click Connector(j1)Body>Parking Brake Wire Assy>Parking Brake Actuator Assembly RH

j1-2 (RE+) - j1-1 (RE-) Electric parking brake not operating Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

e.

None



OK

NG

2.CHECK FOR SHORT TO +B
2.CHECK FOR SHORT TO +B

Pre-procedure1

a.

Disconnect the jK1 No. 1 parking brake wire assembly connector.


Procedure1

b.

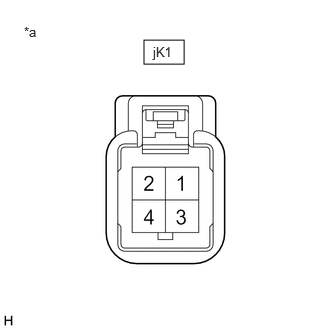

C427098C17
1.5,0.417 1.917,0.667 0.417,0.25 0.25,0.25 0.552,0.5 0.302,0.25 10 false *a 1.594,0.458 1.896,0.688 0.302,0.229 10 false jK1
*a Front view of wire harness connector
(to No. 1 Parking Brake Wire Assembly)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(jK1)Location & Routing

Click Connector(jK1)Body>Parking Brake Wire Assy>Parking Brake Wire Assembly RH and Floor Wire

jK1-1 - jK1-2 Electric parking brake not operating Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY

NG

3.CHECK FOR SHORT TO +B
3.CHECK FOR SHORT TO +B

Pre-procedure1

a.

Disconnect the jK1 No. 1 parking brake wire assembly connector.


b.

Disconnect the A40 skid control ECU (brake actuator assembly) connector.


Procedure1

c.

Measure the voltage according to the value(s) in the table below.

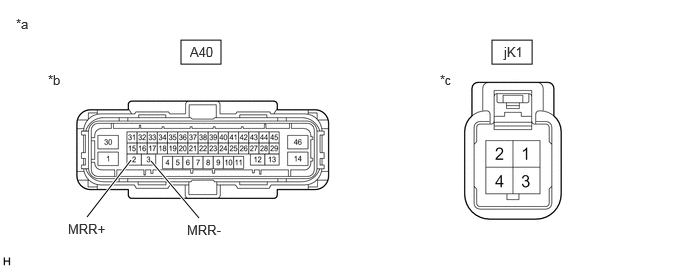

C438309C05
1.885,0.417 2.302,0.667 0.417,0.25 5.125,0.417 5.542,0.667 0.417,0.25 2.073,2.271 1.573,1.677 true 0.906,2.26 1.365,1.667 true 1.979,0.458 2.438,0.656 0.458,0.198 10 false A40 5.25,0.458 5.708,0.656 0.458,0.198 10 false jK1 0.5,0.75 0.958,1.031 0.458,0.281 10 false *b 0.167,0.167 0.583,0.417 0.417,0.25 10 false *a 4.583,0.75 5.125,0.948 0.542,0.198 10 false *c 1.948,2.313 2.448,2.563 0.5,0.25 10 false MRR- 0.708,2.302 1.208,2.552 0.5,0.25 10 false MRR+
*a Front view of wire harness connector *b (to Skid Control ECU (Brake Actuator Assembly))
*c (to No. 1 Parking Brake Wire Assembly) - -


Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(jK1,A40)Location & Routing

Click Connector(jK1)Body>Parking Brake Wire Assy>Parking Brake Wire Assembly RH and Floor Wire

Click Connector(A40)Engine Compartment>Engine Room Main Wire / Transmission Wire>Brake Actuator Assembly

jK1-1 or A40-2 (MRR+) - Body ground Always Below 1 V
jK1-2 or A40-3 (MRR-) - Body ground Always Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
