PARKING BRAKE ELECTRIC PARKING BRAKE ACTUATOR REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
2.RELEASE PARKING BRAKE
Move the shift lever to P.
Turn the ignition switch ON.
Operate the electric parking brake switch assembly to release the parking brake.
- HINT:
-
If the parking brake cannot be released:
Turn the ignition switch off.
3.REMOVE REAR WHEEL
890C0A
4.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.
- NOTICE:
- ·
Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
·Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.
46310B
5.REMOVE PARKING BRAKE ACTUATOR ASSEMBLY

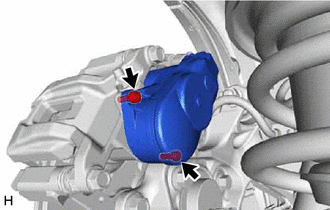

Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly from the rear disc brake cylinder assembly.
- NOTICE:
- ·
Check for brake fluid leaks on the back side of the rear disc brake cylinder assembly.
·If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.
46310C

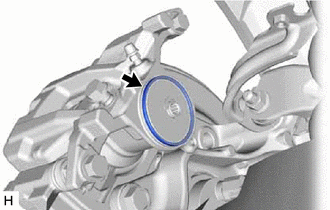

6.REMOVE PARKING BRAKE ACTUATOR SEAL
Remove the parking brake actuator seal from the parking brake actuator assembly.
