PARK ASSIST / MONITORING  BLIND SPOT MONITOR SYSTEM  C1AB512  Outer Mirror Indicator (Module "A" Side) Circuit Short to Battery


DESCRIPTION

This DTC is stored when the blind spot monitor sensor RH (A) detects a short to +B in the outer rear view mirror indicator RH.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
C1AB512 Outer Mirror Indicator (Module "A" Side) Circuit Short to Battery
Both of the following conditions are met:
·

The blind spot monitor system is on

·

The blind spot monitor sensor is not sending voltage to the indicator but the indicator receives voltage above a specified level for a specified period of time


·

Outer mirror RH (outer rear view mirror indicator RH)

·

Outer rear view mirror assembly RH

·

Harness or connector

·

Blind spot monitor sensor RH (A)


Blind Spot Monitor "A" A

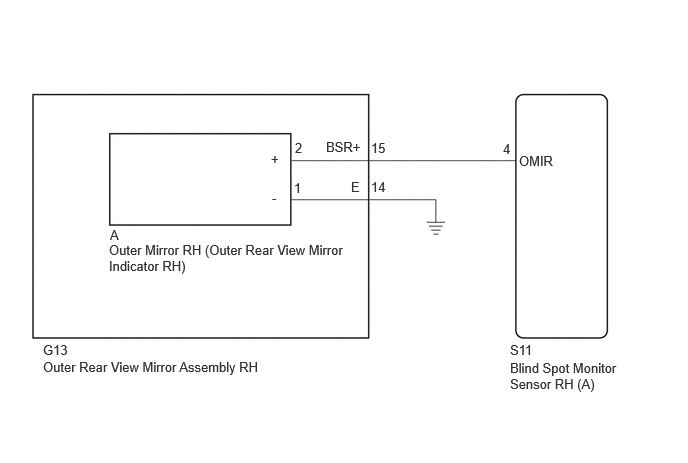

WIRING DIAGRAM

E446908E13
3.073,1.458 3.229,1.656 0.156,0.198 10 false 2 3.063,1.875 3.333,2.083 0.271,0.208 10 false 1 2.823,1.573 2.979,1.771 0.156,0.198 10 false + 2.833,1.979 2.99,2.177 0.156,0.198 10 false - 1.146,2.365 1.802,2.594 0.656,0.229 10 false A 1.135,2.521 3.594,2.865 2.458,0.344 10 false Outer Mirror RH (Outer Rear View Mirror Indicator RH) 0.448,3.74 2.927,4.031 2.479,0.292 10 false Outer Rear View Mirror Assembly RH 5.406,1.594 5.875,1.792 0.469,0.198 10 false OMIR 5.24,1.469 5.708,1.667 0.469,0.198 10 false 4 5.313,3.563 5.781,3.76 0.469,0.198 10 false S11 5.313,3.75 6.521,4.365 1.208,0.615 10 false Blind Spot Monitor Sensor RH (A) 0.448,3.563 0.865,3.75 0.417,0.188 10 false G13 3.396,1.448 3.792,1.615 0.396,0.167 10 false BSR+ 3.656,1.865 3.917,2.052 0.26,0.188 10 false E 3.865,1.458 4.104,1.656 0.24,0.198 10 false 15 3.865,1.865 4.156,2.052 0.292,0.188 10 false 14

CAUTION / NOTICE / HINT

NOTICE:

When checking for DTCs, make sure that the blind spot monitor system is turned on.


PROCEDURE

1.CLEAR DTC
a.

Clear the DTCs.

Body Electrical > Blind Spot Monitor "A" > Clear DTCs
50002 461
Result:
Proceed to
NEXT




NEXT

2.CHECK DTC
2.CHECK DTC
a.

Recheck for DTCs and check if the same DTC is output again.

Body Electrical > Blind Spot Monitor "A" > Trouble Codes
50001 461
Result:
Result Proceed to
DTCs are not output A
DTCs are output B




A

B

3.CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR INDICATOR CIRCUIT)
3.CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR INDICATOR CIRCUIT)

Pre-procedure1

a.

Disconnect the S11 blind spot monitor sensor RH (A) connector.


Procedure1

b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition

Click Location & Routing(S11)Location & Routing

Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RH

S11-4 (OMIR) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

NG

4.CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR INDICATOR CIRCUIT)
4.CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR INDICATOR CIRCUIT)

Pre-procedure1

a.

Disconnect the A outer mirror RH (outer rear view mirror indicator RH) connector.


Procedure1

b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition

Click Location & Routing(S11)Location & Routing

Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RH

S11-4 (OMIR) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

NG

5.CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR INDICATOR CIRCUIT)
5.CHECK HARNESS AND CONNECTOR (OUTER REAR VIEW MIRROR INDICATOR CIRCUIT)

Pre-procedure1

a.

Disconnect the G13 outer rear view mirror assembly RH connector.


Procedure1

b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition

Click Location & Routing(S11)Location & Routing

Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RH

S11-4 (OMIR) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
