HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Gasoline Model)  P06A014  Compressor Solenoid Circuit Short to Ground or Open


DESCRIPTION

The compressor assembly with pulley receives refrigerant compression demand signals from the air conditioning amplifier assembly.

Based on this signal, the compressor assembly with pulley changes the amount of compressor output.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory DTC Output from Priority
P06A014 Compressor Solenoid Circuit Short to Ground or Open Diagnosis Condition:

Compressor assembly with pulley operating


Malfunction:

Open or short in compressor solenoid circuit


Detection Time:

Continuously for 30 seconds or more


·

Compressor assembly with pulley

·

Harness or connector

·

Air conditioning amplifier assembly


Memorized Air Conditioner A

DTC Detection Condition Combination Table
Vehicle Condition
Pattern 1 Pattern 2
Diagnosis Condition Compressor assembly with pulley operating ○ ○
Malfunction Open in compressor solenoid circuit ○ -
Short in compressor solenoid circuit - ○
Detection Time Continuously for 30 seconds or more Continuously for 30 seconds or more

HINT:

If the conditions of either of these patterns are detected, a DTC will be stored.

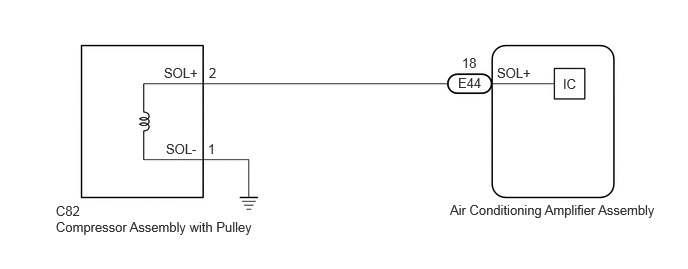

WIRING DIAGRAM

E432283E03
0.583,2.281 4.01,2.542 3.427,0.26 10 false Compressor Assembly with Pulley 0.583,2.115 0.979,2.323 0.396,0.208 10 false C82 1.708,0.677 2.104,0.885 0.396,0.208 10 false SOL+ 1.729,1.469 2.125,1.677 0.396,0.208 10 false SOL- 2.177,0.677 2.573,0.885 0.396,0.208 10 false 2 2.167,1.469 2.563,1.677 0.396,0.208 10 false 1 4.813,0.573 5.208,0.781 0.396,0.208 10 false 18 5.177,0.677 5.573,0.885 0.396,0.208 10 false SOL+ 5.865,0.792 6.26,1 0.396,0.208 10 false IC 4.771,0.781 5.167,0.99 0.396,0.208 10 false E44 4.688,2.104 7,2.417 2.313,0.313 10 false Air Conditioning Amplifier Assembly

PROCEDURE

1.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Air Conditioner > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Solenoid Valve Control Current Value Solenoid valve control current Min.: 0 mA
Max.: 1000 mA 		Value changes between 0 A and 0.997 A in accordance with solenoid valve operation -
Body Electrical > Air Conditioner > Data List
Tester Display
Solenoid Valve Control Current Value
50003 450 270
OK:

The display is as specified in the normal condition column.



Result:
Proceed to
OK
NG



OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL


NG

2.INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY
2.INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY

Pre-procedure1

a.

Disconnect the C82 compressor assembly with pulley connector.


Procedure1

b.
E270993C08
0.833,1.083 1.417,1.083 true 2,1.083 2.583,1.083 true 0.104,0.083 0.417,0.24 0.313,0.156 10 false *a 0.448,1 1.063,1.198 0.615,0.198 10 false SOL+ 2.656,1 3.271,1.198 0.615,0.198 10 false SOL-
*a Component without harness connected
(Compressor Assembly with Pulley)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (SOL-) - 2 (SOL+) Compressor temperature 25°C (77°F) 10.1 to 11.1 Ω


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

3.CHECK HARNESS AND CONNECTOR (COMPRESSOR ASSEMBLY WITH PULLEY - AIR CONDITIONING AMPLIFIER ASSEMBLY)

NG

REPLACE COMPRESSOR ASSEMBLY WITH PULLEY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for M20D-FKS)>REMOVAL


3.CHECK HARNESS AND CONNECTOR (COMPRESSOR ASSEMBLY WITH PULLEY - AIR CONDITIONING AMPLIFIER ASSEMBLY)

Pre-procedure1

a.

Disconnect the C82 compressor assembly with pulley connector.


b.

Disconnect the E44 air conditioning amplifier assembly connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(C82,E44)Location & Routing

Click Connector(C82)Engine Compartment>Engine Wire>Compressor with Pulley Assembly

Click Connector(E44)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Air Conditioning Amplifier Assembly

C82-2 (SOL+) - E44-18 (SOL+) Always Below 1 Ω
C82-1 (SOL-) - Body ground Always Below 1 Ω
C82-2 (SOL+) or E44-18 (SOL+) - Other terminals and body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
