HEATING / AIR CONDITIONING  COMPRESSOR(for M20C-FKS, M20D-FKS)  REMOVAL

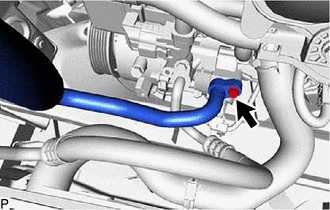

Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with pulley.

Remove the O-ring from the suction hose sub-assembly.

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

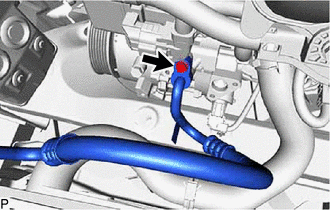

Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor assembly with pulley.

Remove the O-ring from the No. 1 cooler refrigerant discharge hose.

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

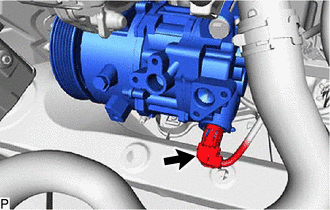

Disconnect the connector.

for Type A:

i.

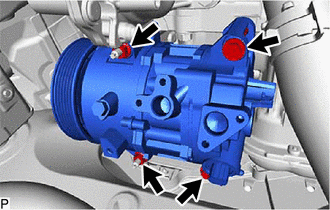

Remove the 2 bolts and 2 nuts.

ii.

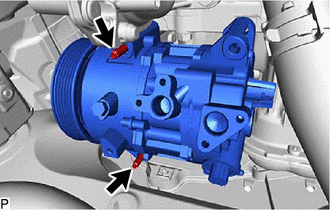

Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor assembly with pulley.

for Type B:

i.

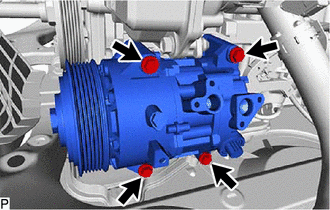

Remove the 4 bolts and compressor assembly with pulley.
