HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Gasoline Model)  B14B287  Lost Communication with Front Panel LIN Missing Message


DESCRIPTION

The air conditioning control assembly communicates with the air conditioning amplifier assembly via LIN communication.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory DTC Output from Priority
B14B287 Lost Communication with Front Panel LIN Missing Message Diagnosis Condition:

Ignition switch ON


Malfunction:

Error or open in communication line between air conditioning amplifier assembly and air conditioning control assembly


Detection Time:

Continuously for 10 seconds or more


·

Harness or connector

·

Air conditioning control assembly

·

Air conditioning amplifier assembly


Memorized Air Conditioner A

DTC Detection Condition Combination Table
Vehicle Condition
Pattern 1 Pattern 2
Diagnosis Condition Ignition switch ON
Malfunction Error in communication line between air conditioning amplifier assembly and air conditioning control assembly -
Open in communication line between air conditioning amplifier assembly and air conditioning control assembly -
Detection Time Continuously for 10 seconds or more Continuously for 10 seconds or more
Trip Count 1 trip 1 trip

HINT:

If the conditions of either of these patterns are detected, a DTC will be stored.

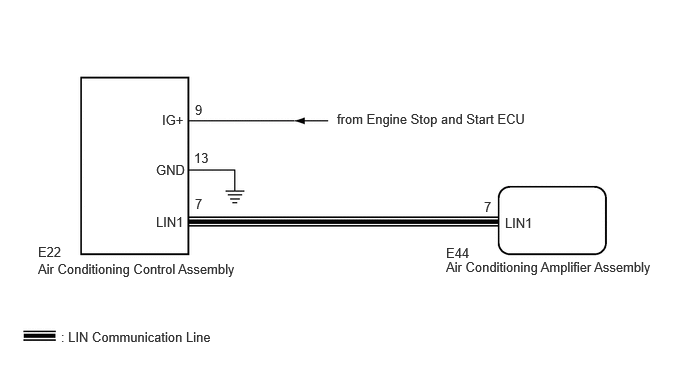

WIRING DIAGRAM

E480581E01
1.625,2.229 2,2.417 0.375,0.188 10 false LIN1 1.688,1.167 1.99,1.333 0.302,0.167 10 false IG+ 1.625,1.688 2.125,1.896 0.5,0.208 10 false GND 2.021,1.563 2.313,1.74 0.292,0.177 10 false 13 4.646,2.698 7.031,2.99 2.385,0.292 10 false Air Conditioning Amplifier Assembly 4.646,2.552 5.26,2.75 0.615,0.198 10 false E44 5.26,2.24 5.875,2.438 0.615,0.198 10 false LIN1 5.042,2.073 5.333,2.229 0.292,0.156 10 false 7 0.396,2.719 2.74,3.083 2.344,0.365 10 false Air Conditioning Control Assembly 0.396,2.542 1.01,2.74 0.615,0.198 10 false E22 0.635,3.427 2.708,3.688 2.073,0.26 10 false : LIN Communication Line 2.031,2.042 2.302,2.219 0.271,0.177 10 false 7 3.51,1.156 5.698,1.406 2.188,0.25 10 false from Engine Stop and Start ECU 2.031,1.063 2.323,1.24 0.292,0.177 10 false 9

PROCEDURE

1.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL ASSEMBLY - AUXILIARY BATTERY)

Pre-procedure1

a.

Disconnect the E22 air conditioning control assembly connector.


Procedure1

b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(E22)Location & Routing

Click Connector(E22)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Control Assembly

E22-9 (IG+) - Body ground Ignition switch ON 10.5 to 16 V


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

2.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL ASSEMBLY - BODY GROUND)

NG

2.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL ASSEMBLY - BODY GROUND)

Pre-procedure1

a.

Disconnect the E22 air conditioning control assembly connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E22)Location & Routing

Click Connector(E22)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Control Assembly

E22-13 (GND) - Body ground Always Below 1 Ω


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - AIR CONDITIONING CONTROL ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - AIR CONDITIONING CONTROL ASSEMBLY)

Pre-procedure1

a.

Disconnect the E22 air conditioning control assembly connector.


b.

Disconnect the E44 air conditioning amplifier assembly connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E22,E44)Location & Routing

Click Connector(E22)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Control Assembly

Click Connector(E44)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Air Conditioning Amplifier Assembly

E22-7 (LIN1) - E44-7 (LIN1) Always Below 1 Ω
E22-7 (LIN1) or E44-7 (LIN1) - Other terminals and body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

4.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY (OUTPUT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY (OUTPUT)

Pre-procedure1

a.

Disconnect the E22 air conditioning control assembly connector.


b.

Connect the E44 air conditioning amplifier assembly connector.


Procedure1

c.
E334619N01
0.365,1.563 0.823,1.76 0.458,0.198 10 false GND

Using an oscilloscope, check the waveform.

Item Content
Tester Connection E44-7 (LIN1) - Body ground
Tool Setting 2 V/DIV., 20 μs/DIV.
Condition Ignition switch ON

OK:

The waveform displays properly.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

5.CHECK AIR CONDITIONING CONTROL ASSEMBLY (OUTPUT)

NG

5.CHECK AIR CONDITIONING CONTROL ASSEMBLY (OUTPUT)

Pre-procedure1

a.

Connect the E22 air conditioning control assembly connector.


Procedure1

b.
E334619N01
0.365,1.563 0.823,1.76 0.458,0.198 10 false GND

Using an oscilloscope, check the waveform.

Item Content
Tester Connection E22-7 (LIN1) - Body ground
Tool Setting 2 V/DIV., 20 μs/DIV.
Condition Ignition switch ON

OK:

The waveform displays properly.


Result:
Proceed to
OK
NG



Post-procedure1

c.

None



OK

NG
