HEATING / AIR CONDITIONING AIR CONDITIONING PANEL REMOVAL

PROCEDURE

Hide Display 1.REMOVE CONSOLE BOX ASSEMBLY

Hide Display 55900 2.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

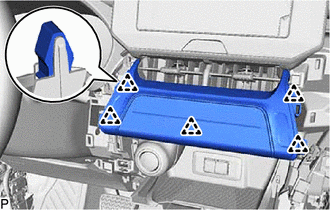

Disengage the 5 clips.

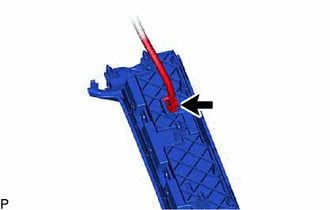

Disconnect the connector to remove the air conditioning control assembly.
