WINDOW / GLASS  BACK DOOR GLASS  REMOVAL

0,0 0,0 false

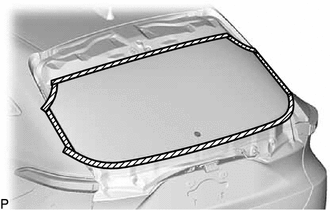

Protective Tape

Apply protective tape to the area around the installation position of the back door glass on the back door panel to prevent it from being scratched.

2.083,1.365 2.323,1.302 2.323,1.302 2.594,1.781 true 2.271,1.635 2.479,1.583 true 2.583,1.844 2.802,2.042 0.219,0.198 10 true *a

*a

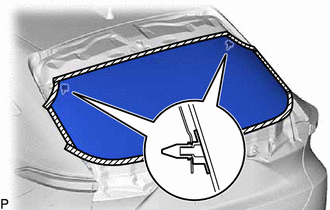

Matchmark

Place matchmarks on the back door glass and vehicle body at the locations indicated in the illustration.

HINT:

Matchmarks are not necessary if the back door glass is not going to be reused.

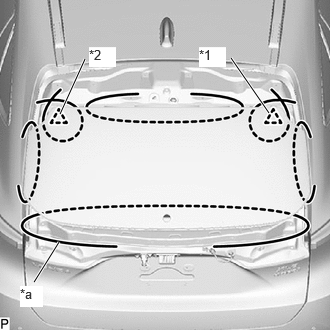

0.354,2.938 0.615,2.521 true 0.625,1.188 0.885,0.615 true 2.802,1.177 2.406,0.604 true 0.927,0.49 1.208,0.698 0.281,0.208 10 true *2 0.208,2.979 0.448,3.198 0.24,0.219 10 true *a 2.073,0.49 2.354,0.698 0.281,0.208 10 true *1

*1	No. 1 Back Window Glass Spacer
*2	No. 2 Back Window Glass Spacer
*a	Piano Wire

Pass a piano wire between the back door panel and back door glass from the exterior.

Using suction cups, disengage the No. 1 back window glass spacer and No. 2 back window glass spacer and remove the back door glass.

NOTICE:

·

To prevent the back door glass from falling when performing this operation, be sure to hold the back door glass using suction cups.

·

Be careful not to drop the back door glass.

·

Leave as much adhesive on the back door panel as possible when removing the back door glass.

When reusing the back door glass:

i.

0.177,0.115 0.552,0.354 0.375,0.24 12 false *A

*A

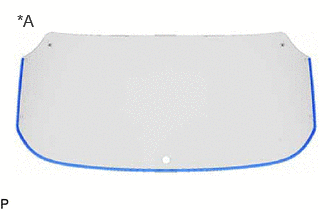

Back Side

Using a scraper, remove the back window lower moulding.

NOTICE:

·

Be careful not to damage the back door glass.

·

Be sure to replace the back window lower moulding with a new one.

When reusing the back door glass:

i.

0.24,0.167 0.615,0.406 0.375,0.24 12 false *A

*A	Back Side
	Adhesive Tape

Apply adhesive tape to the area around the installation position of the No. 1 back window glass spacer on the back door glass.

When reusing the back door glass:

i.

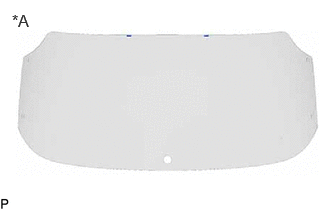

0.125,0.115 0.5,0.354 0.375,0.24 12 false *A

*A

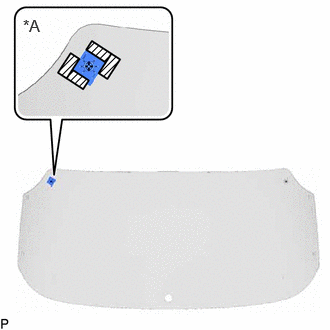

Back Side

Using a scraper, remove the 2 back door glass spacers.

NOTICE:

·

Be careful not to damage the back door glass.

·

Be sure to replace the back door glass spacer with a new ones.

When reusing the back door glass:

i.

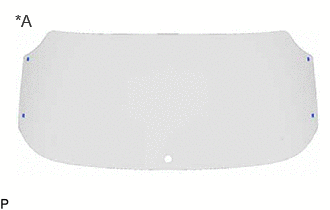

0.156,0.115 0.531,0.354 0.375,0.24 12 false *A

*A

Back Side

Using a scraper, remove the 4 No. 2 quarter window glass spacers.

NOTICE:

·

Be careful not to damage the back door glass.

·

Be sure to replace the No. 2 quarter window glass spacer with a new ones.

Clean and shape the contact surfaces of the back door panel.

i.

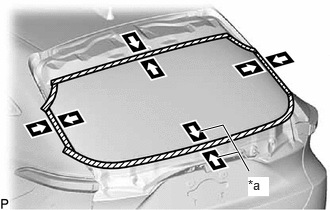

1.042,0.292 1.302,0.188 false 1.375,0.083 1.688,0.24 0.313,0.156 10 false *a 2.906,1.531 3.063,1.729 0.156,0.198 10 false a

*a	Back Door Panel
	Adhesive

Using a knife, cut off any excess adhesive on the contact surfaces of the back door panel as shown in the illustration.

Standard Dimension:

Area	Dimension
a	1.0 mm (0.0394 in.) or more

NOTICE:

Be careful not to damage the back door panel.

HINT:

Leave as much adhesive on the back door panel as possible.
