EXTERIOR PANELS / TRIM  REAR SPOILER  REMOVAL


PROCEDURE

Hide 2.REMOVE HOLE PLUG

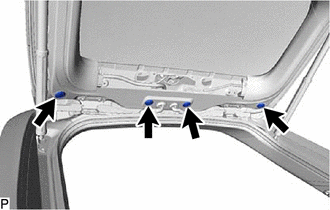

a.
B589235

Remove the 4 hole plugs.


Hide 3.REMOVE REAR SPOILER ASSEMBLY

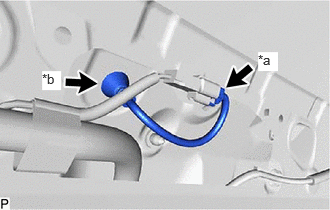

a.
B589236C01
2.688,0.542 2.896,0.74 0.208,0.198 10 true *a 0.438,0.74 0.635,0.938 0.198,0.198 10 true *b
*a Connector
*b Grommet


Disconnect the connector and grommet.

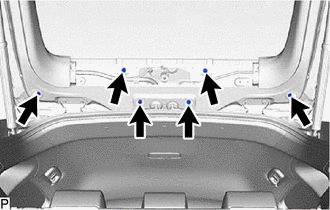

b.
B589237

Remove the 6 nuts.

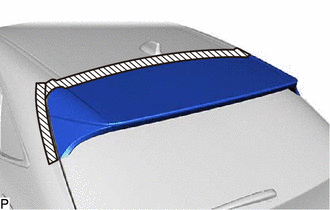

c.
B589238C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear spoiler assembly.

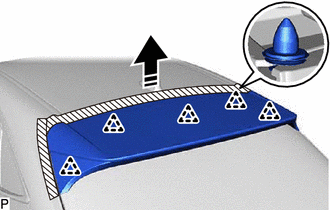

d.
B589239C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 5 clips as shown in the illustration to remove the rear spoiler assembly.
