RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500108 BACK DOOR OUTSIDE GARNISH A

EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH  REMOVAL


PROCEDURE

Hide 2.REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

a.
B589314

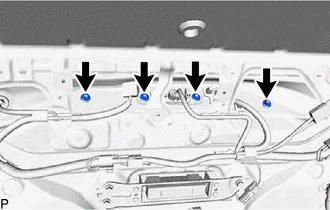

Remove the 4 bolts.


b.
B629032C01
0,0 0,0 false
V100155

Protective Tape

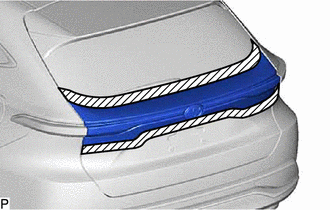

Apply protective tape around the back door outside garnish sub-assembly with light as shown in the illustration.


c.
B629033C01
0,0 0,0 false
V113147

Remove in this Direction

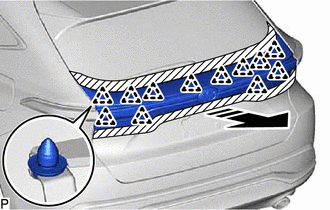

Disengage the 12 clips as shown in the illustration.


d.
B589317

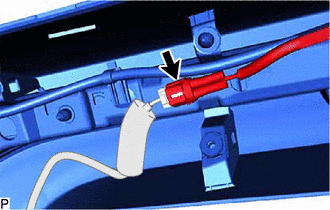

Disconnect the connector to remove the back door outside garnish sub-assembly with light.
