RM36D0EC _51 Engine / Hybrid System _083056 STOP AND START _0402419 ENGINE STOP AND START ECU A

STOP AND START  ENGINE STOP AND START ECU  INSTALLATION


PROCEDURE

Hide 89261A 1.INSTALL ENGINE STOP AND START ECU

a.

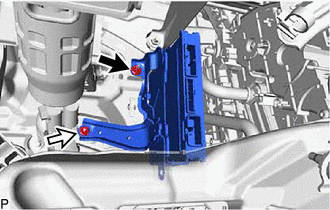

A436341C01
0,0 0,0 false
V100135

Nut A
V100136

Nut B


Install the engine stop and start ECU with the 2 nuts.

Torque:
for nut A : 5.5 N*m (56 kgf*cm, 49 in.*lbf)
for nut B : 8.0 N*m (82 kgf*cm, 71 in.*lbf)


b.

Attach the clamp and connect the wire harness to the engine stop and start ECU.


c.

Connect the 3 connectors to the engine stop and start ECU.


Hide 4.INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
