NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  B15DB87  Telematics Transceiver Missing Message


DESCRIPTION

When the navigation receiver assembly cannot detect the telematics transceiver, this DTC will be stored.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B15DB87 Telematics Transceiver Missing Message When 90 seconds have elapsed after turning the ignition switch to ON and the telematics transceiver cannot be detected, the telematics transceiver is judged to be disconnected after comparison with the past USB connected devices information.
(2 trip detection logic)
·

Telematics transceiver

·

Navigation receiver assembly

·

Harness or connector

·

Radio wiring sub-assembly

·

Telephone ECU Wire (to Transceiver)


Navigation System A

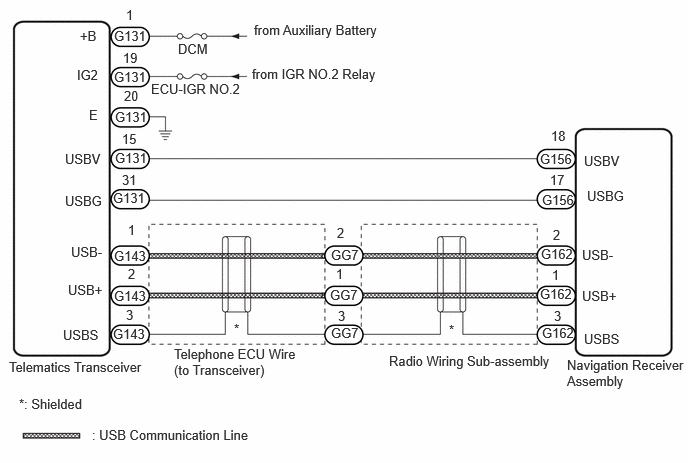

WIRING DIAGRAM

E503075E11
0.677,1.573 1.292,1.771 0.615,0.198 10 false USBV 0.677,2.01 1.292,2.208 0.615,0.198 10 false USBG 0.74,2.542 1.354,2.74 0.615,0.198 10 false USB- 0.708,2.938 1.323,3.135 0.615,0.198 10 false USB+ 0.656,3.406 1.271,3.604 0.615,0.198 10 false USBS 6.083,1.594 6.698,1.792 0.615,0.198 10 false USBV 6.115,1.958 6.729,2.156 0.615,0.198 10 false USBG 6.063,2.573 6.677,2.771 0.615,0.198 10 false USB- 6.063,3 6.677,3.198 0.615,0.198 10 false USB+ 6.083,3.448 6.698,3.646 0.615,0.198 10 false USBS 5.625,1.573 6.24,1.771 0.615,0.198 10 false G156 5.646,2 6.26,2.198 0.615,0.198 10 false G156 5.635,2.563 6.25,2.76 0.615,0.198 10 false G162 5.625,2.979 6.24,3.177 0.615,0.198 10 false G162 5.646,3.385 6.26,3.583 0.615,0.198 10 false G162 5.76,2.365 6.375,2.563 0.615,0.198 10 false 2 5.75,2.781 6.365,2.979 0.615,0.198 10 false 1 5.771,3.208 6.385,3.406 0.615,0.198 10 false 3 0.094,3.74 1.594,4.021 1.5,0.281 10 false Telematics Transceiver 5.906,3.719 7.156,4.229 1.25,0.51 10 false Navigation Receiver Assembly 3.448,2.573 4.063,2.771 0.615,0.198 10 false GG7 3.438,2.99 4.052,3.188 0.615,0.198 10 false GG7 3.448,3.385 4.063,3.583 0.615,0.198 10 false GG7 3.51,2.344 4.125,2.542 0.615,0.198 10 false 2 3.5,2.771 4.115,2.969 0.615,0.198 10 false 1 3.521,3.208 4.135,3.406 0.615,0.198 10 false 3 1.188,2.583 1.802,2.781 0.615,0.198 10 false G143 1.188,3 1.802,3.198 0.615,0.198 10 false G143 1.177,3.396 1.792,3.594 0.615,0.198 10 false G143 1.313,3.198 1.927,3.396 0.615,0.198 10 false 3 1.333,2.771 1.948,2.969 0.615,0.198 10 false 2 1.333,2.313 1.948,2.51 0.615,0.198 10 false 1 1.177,1.979 1.792,2.177 0.615,0.198 10 false G131 1.198,1.563 1.813,1.76 0.615,0.198 10 false G131 1.271,1.365 1.885,1.563 0.615,0.198 10 false 15 1.271,1.792 1.885,1.99 0.615,0.198 10 false 31 5.74,1.333 6.354,1.531 0.615,0.198 10 false 18 5.729,1.792 6.344,1.99 0.615,0.198 10 false 17 1.188,0.292 1.802,0.49 0.615,0.198 10 false G131 1.188,0.719 1.802,0.917 0.615,0.198 10 false G131 1.198,1.135 1.813,1.333 0.615,0.198 10 false G131 1.313,0.073 1.927,0.271 0.615,0.198 10 false 1 1.281,0.521 1.896,0.719 0.615,0.198 10 false 19 1.292,0.917 1.906,1.115 0.615,0.198 10 false 20 1.854,0.427 2.469,0.625 0.615,0.198 10 false DCM 2.625,0.688 5.76,1.021 3.135,0.333 10 false from IGR NO.2 Relay 2.646,0.229 5.229,0.604 2.583,0.375 10 false from Auxiliary Battery 0.958,4.448 3.292,4.729 2.333,0.281 10 false : USB Communication Line 2.438,3.344 3.052,3.542 0.615,0.198 10 false * 4.677,3.354 5.292,3.552 0.615,0.198 10 false * 0.198,4.125 1.698,4.406 1.5,0.281 10 false *: Shielded 1.813,3.604 3.167,4.104 1.354,0.5 10 false Telephone ECU Wire (to Transceiver) 4.052,3.677 6.094,4.198 2.042,0.521 10 false Radio Wiring Sub-assembly 0.833,0.292 1.448,0.49 0.615,0.198 10 false +B 0.802,0.698 1.417,0.896 0.615,0.198 10 false IG2 0.927,1.115 1.542,1.313 0.615,0.198 10 false E 1.573,0.844 2.688,1.323 1.115,0.479 10 false ECU-IGR NO.2

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION



HINT:
·

The TOYOTA Connect system performs communication between devices via USB communication. If a malfunction such as a short in a communication line, short to +B or short to ground occurs in the USB circuit, communication will stop and the TOYOTA Connect system will not operate correctly.

·

This DTC may be stored due to environmental reasons such as electrical noise or interference.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - POWER SOURCE AND BODY GROUND)
a.

Disconnect the G131 telematics transceiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G131-20 (E) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
G131-1 (+B) - G131-20 (E) Ignition switch off 11 to 14 V
G131-19 (IG2) - G131-20 (E) Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
a.

Disconnect the G156 navigation receiver assembly connector.


b.

Disconnect the G131 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G156-18 (USBV) - G131-15 (USBV) Always Below 1 Ω
G156-17 (USBG) - G131-31 (USBG) Always Below 1 Ω
G156-18 (USBV) or G131-15 (USBV) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.INSPECT NAVIGATION RECEIVER ASSEMBLY (USBV, USBG)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT NAVIGATION RECEIVER ASSEMBLY (USBV, USBG)
a.

With the navigation receiver assembly connectors connected, disconnect the G131 telematics transceiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G131-31 (USBG) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
G131-15 (USBV) - G131-31 (USBG) Ignition switch ON 3 V or higher



Result:
Proceed to
OK
NG



OK

4.CHECK TELEPHONE ECU WIRE (TO TRANSCEIVER)

NG

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


4.CHECK TELEPHONE ECU WIRE (TO TRANSCEIVER)
a.

Disconnect the G143 telephone ECU wire (to transceiver) connector from the telephone transceiver.


b.

Disconnect the GG7 telephone ECU wire (to transceiver) connector from the radio wiring sub-assembly.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G143-1 (USB-) - GG7-2 Always Below 1 Ω
G143-2 (USB+) - GG7-1 Always Below 1 Ω
G143-3 (USBS) - GG7-3 Always Below 1 Ω
G143-1 (USB-) - Body ground Always 10 kΩ or higher
G143-2 (USB+) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK RADIO WIRING SUB-ASSEMBLY

NG

REPLACE TELEPHONE ECU WIRE (TO TRANSCEIVER)

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


5.CHECK RADIO WIRING SUB-ASSEMBLY
a.

Disconnect the GG7 radio wiring sub-assembly connector from the telephone ECU wire (to transceiver).


b.

Disconnect the G162 radio wiring sub-assembly connector from the navigation receiver assembly.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
GG7-1 - G162-1 (USB+) Always Below 1 Ω
GG7-2 - G162-2 (USB-) Always Below 1 Ω
GG7-3 - G162-3 (USBS) Always Below 1 Ω
GG7-1 - Body ground Always 10 kΩ or higher
GG7-2 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

6.INSPECT TELEMATICS TRANSCEIVER

NG

REPLACE RADIO WIRING SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


6.INSPECT TELEMATICS TRANSCEIVER
a.

Replace the telematics transceiver with a new one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

7.CHECK FOR DTC
7.CHECK FOR DTC
a.

Clear the DTCs.

Body Electrical > Navigation System > Clear DTCs
50002 496

b.

Turn the ignition switch off.


c.

Turn the ignition switch to ON and wait for 90 seconds.


d.

Turn the ignition switch off.


e.

Turn the ignition switch to ON and wait for 90 seconds.


f.

Using the GTS, recheck for DTCs and proceed to the following step.

Body Electrical > Navigation System > Trouble Codes
50001 496
Result:
Result Proceed to
DTCs are not output A
DTC B15DB87 is output B




A

END (TELEMATICS TRANSCEIVER IS DEFECTIVE)

B

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL
