M20D-FKS ENGINE CONTROL  CRANKSHAFT POSITION SENSOR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during crankshaft position sensor removal/installation are shown below.

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



PROCEDURE

Hide 11401G 2.REMOVE CRANKSHAFT POSITION SENSOR

a.

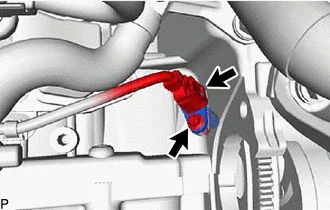

A433263

Disconnect the crankshaft position sensor connector.


b.

Using an 8 mm socket wrench, remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.

NOTICE:

If the crankshaft position sensor has been struck or dropped, replace it.



c.

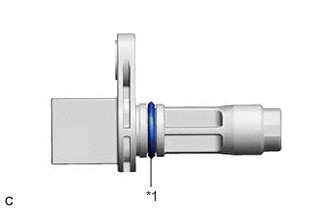

A456841C01
1.573,1.948 1.573,1.625 false 1.521,1.958 1.833,2.115 0.313,0.156 10 false *1
*1 O-ring


Perform this procedure only when reusing the crankshaft position sensor.

i.

Remove the O-ring from the crankshaft position sensor.

NOTICE:
·

Make sure to only remove the O-ring with bare hands.

·

When removing the O-ring, be careful not to damage the O-ring groove of the crankshaft position sensor.

·

If the O-ring groove of the crankshaft position sensor is damaged, replace the crankshaft position sensor with a new one.
