RM36D0EC _59 Vehicle Exterior _083093 DOOR / HATCH _0403687 FRONT DOOR N

DOOR / HATCH  FRONT DOOR  ADJUSTMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door disassembly/reassembly are shown below.

HINT:
·

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

for HV Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -

-

for Gasoline Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the backdoor is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -


·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

·
B276679C44
0.625,1.75 0.823,1.938 0.198,0.188 10 false *a 2.531,1.75 2.729,1.938 0.198,0.188 10 false *b
*a Centering Bolt
*b Standard Bolt


Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute the centering bolts for standard bolts when making adjustments.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B475753

Be sure to read Precaution thoroughly before servicing.



NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:
B394718

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.








Hide 3.INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

a.

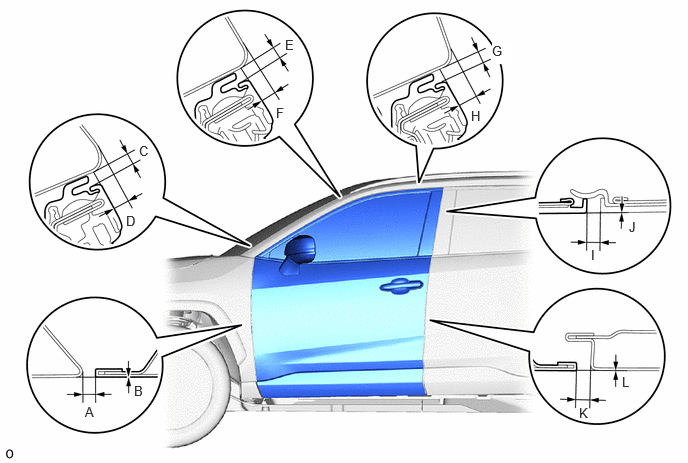

Check that the clearance measurements of areas A to L are within the standard ranges.

B527077N01
0.885,4.208 1.115,4.458 0.229,0.25 10 false A 1.396,3.99 1.625,4.24 0.229,0.25 10 false B 1.448,1.49 1.677,1.74 0.229,0.25 10 false C 1.313,2.219 1.542,2.469 0.229,0.25 10 false D 2.969,0.385 3.198,0.635 0.229,0.25 10 false E 2.875,1.094 3.104,1.344 0.229,0.25 10 false F 5.125,0.448 5.344,0.667 0.219,0.219 10 true G 4.906,1.125 5.135,1.375 0.229,0.25 10 false H 6.156,2.573 6.385,2.823 0.229,0.25 10 false I 6.552,2.281 6.781,2.531 0.229,0.25 10 false J 6.031,4.219 6.26,4.469 0.229,0.25 10 false K 6.479,3.896 6.708,4.146 0.229,0.25 10 false L

Standard Clearance:
Area Measurement Area Measurement
A 2.5 to 5.5 mm (0.0984 to 0.2165 in.) B -1.8 to 1.2 mm (-0.0709 to 0.0472 in.)
C 2.65 to 6.05 mm (0.104 to 0.238 in.) D 2.35 to 6.35 mm (0.0925 to 0.2500 in.)
E 2.65 to 6.05 mm (0.104 to 0.238 in.) F 1.65 to 6.15 mm (0.0650 to 0.2421 in.)
G 2.65 to 6.05 mm (0.104 to 0.238 in.) H 3.75 to 7.85 mm (0.148 to 0.309 in.)
I
(Reference)
5.1 mm (0.201 in.) J
(Reference)
0 mm (0 in.)
K 2.9 to 5.3 mm (0.114 to 0.209 in.) L -1.5 to 0.9 mm (-0.0591 to 0.0354 in.)



Hide 4.ADJUST FRONT DOOR PANEL SUB-ASSEMBLY LH

a.

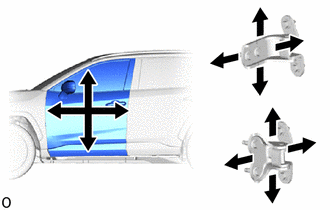

B527078

Using SST, loosen the hinge bolts on the body and adjust the door position.

SST
09812-00010


b.

Tighten the hinge bolts on the body after the adjustment.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


c.

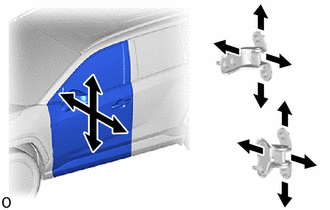

B527079

Loosen the hinge bolts on the door and adjust the door position.


d.

Tighten the hinge bolts on the door after the adjustment.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


e.
B527080

Using a T40 "TORX" socket wrench, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a brass bar and a hammer.


f.

Using a T40 "TORX" socket wrench, tighten the striker mounting screws after the adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)


Hide 6. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
