RM36D0EC _58 Vehicle Interior _083100 SUPPLEMENTAL RESTRAINT SYSTEMS _0400493 STEERING PAD A

SUPPLEMENTAL RESTRAINT SYSTEMS  STEERING PAD  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the horn button assembly removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



·

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -




PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B475753

Be sure to read Precaution thoroughly before servicing.



NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the auxiliary negative (-) auxiliary battery terminal.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:
B394718

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




Hide 45130 3.REMOVE HORN BUTTON ASSEMBLY

CAUTION:

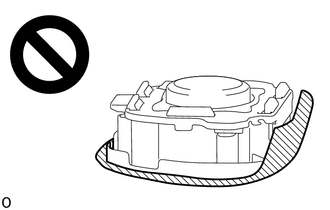

B528833C01
0,0 0,0 false
V100155

Deployment Side


·

When storing the horn button assembly, keep the airbag deployment side facing upward.

·

If the airbag deploys for any reason, it may cause a serious accident.



a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




c.

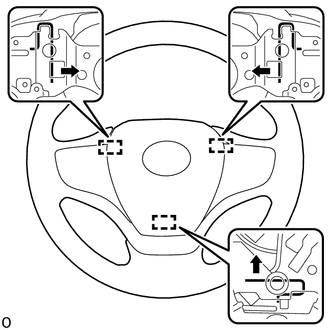

B528834C01
0,0 0,0 false
V100135

Release in this Direction


Using a screwdriver, push in the torsion springs to detach the pins as shown in the illustration.


d.

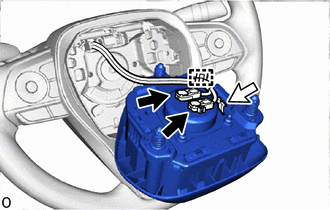

B555724C01
0,0 0,0 false
V100135

Airbag connector
V100136

Horn connector


Tilt the horn button assembly toward the seat and support it with one hand.

NOTICE:
·

Do not drop the horn button assembly.

·

When disconnecting the horn button assembly, do not pull the airbag wire harness.




e.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:




f.

Detach the wire harness clamp and disconnect the horn connector.
