MAINTENANCE  FRONT BRAKE FLEXIBLE HOSE  REMOVAL

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front brake flexible hose removal/installation are shown below.

NOTICE:

·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.

·

When removing or installing the front disc brake cylinder assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure. (for HV Model)

·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected. (for HV Model)

HINT:

for HV Model:

·

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane tracing assist system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door function	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

·

Use the same procedure for the RH and LH sides.

·

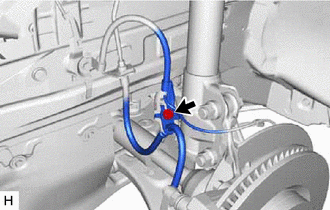

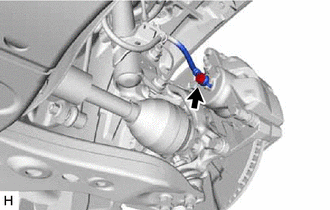

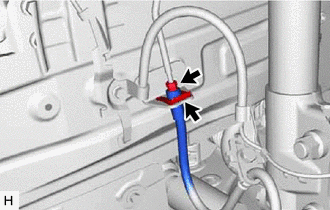

The following procedure is for the LH side.
