RM36D0EC _54 Brake _083079 BRAKE (FRONT) _0403353 FRONT BRAKE A

BRAKE (FRONT)  FRONT BRAKE  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front brake removal/installation are shown below.

NOTICE:
·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.

·

When removing or installing the front disc brake cylinder assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure. (for HV Model)

·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected. (for HV Model)



HINT:
for HV Model:
·

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -


·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 3.DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.


Hide 47313J 4.DISCONNECT FRONT FLEXIBLE HOSE

a.
C397680

Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.


Hide 47750 5.REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY

a.

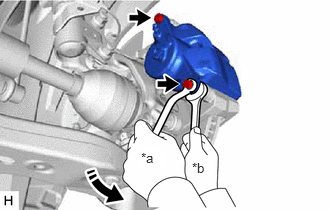

C397681C01
1.469,1.563 1.729,1.76 0.26,0.198 10 true *a 2,1.667 2.219,1.844 0.219,0.177 10 true *b
*a Turn
*b Hold


Hold the 2 front disc brake cylinder slide pins and remove the 2 bolts and front disc brake cylinder assembly.


Hide 6.REMOVE FRONT DISC BRAKE PAD

a.

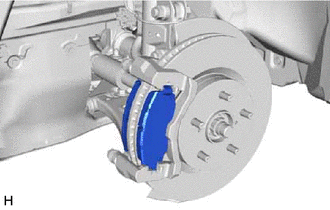

C397682

Remove the 2 front disc brake pads from the front disc brake cylinder mounting.


Hide 8.REMOVE FRONT DISC BRAKE PAD SUPPORT PLATE

a.

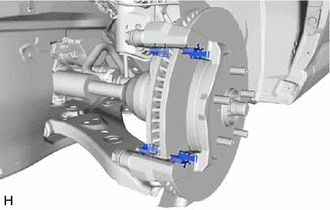

C397683

Remove the 4 front disc brake pad support plates from the front disc brake cylinder mounting.

NOTICE:

Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front disc brake pad support plate so that it can be reinstalled to its original position.



Hide 9.REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN

a.

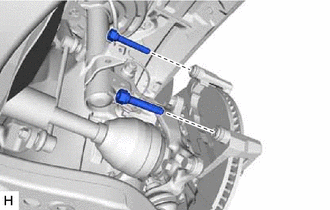

C397684

Remove the 2 front disc brake cylinder slide pins from the front disc brake cylinder mounting.


b.

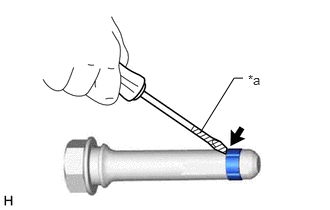

C397685C01
2.083,1.385 2.438,0.813 2.438,0.813 2.531,0.813 false 2.583,0.75 2.896,0.906 0.313,0.156 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bushing from the front disc brake cylinder slide pin (lower side).

NOTICE:

Do not damage the front disc brake cylinder slide pin.



Hide 10.REMOVE FRONT DISC BRAKE BUSHING DUST BOOT

a.

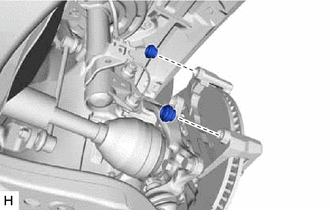

C397686

Remove the 2 front disc brake bushing dust boots from the front disc brake cylinder mounting.


Hide 47722 11.REMOVE FRONT DISC BRAKE CYLINDER MOUNTING

a.

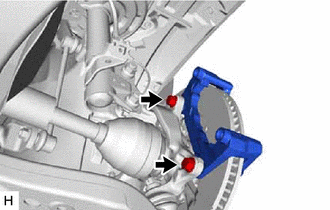

C397687

Remove the 2 bolts and front disc brake cylinder mounting from the steering knuckle.


Hide 43512 12.REMOVE FRONT DISC

a.

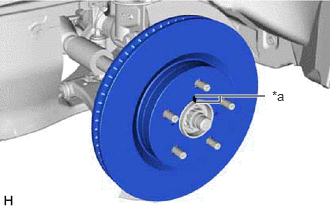

C397688C01
2.031,1 2.76,1 true 2.042,1.063 2.292,1.063 2.292,1.063 2.292,1 true 2.833,0.917 3.094,1.156 0.26,0.24 10 true *a
*a Matchmark


Put matchmarks on the front disc and the front axle hub sub-assembly.


b.

Remove the front disc.
