AUDIO / VIDEO AUDIO AND VISUAL SYSTEM TERMINALS OF ECU

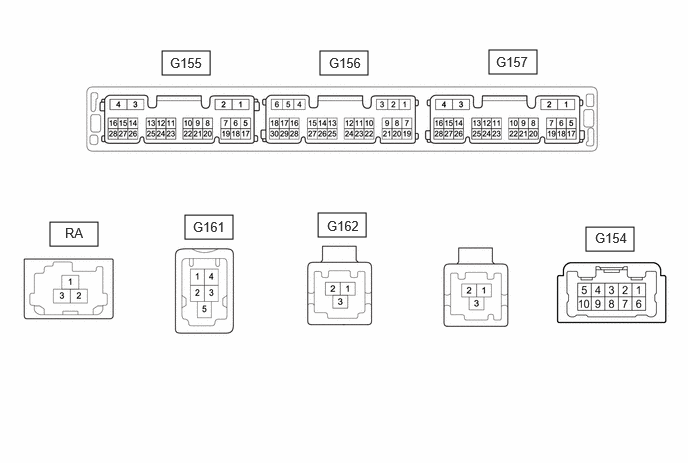

RADIO AND DISPLAY RECEIVER ASSEMBLY
5.094,0.521 5.594,0.771
0.5,0.25
3.333,0.531 3.833,0.781
0.5,0.25
1.688,0.531 2.188,0.781
0.5,0.25
0.521,2.313 1.021,2.563
0.5,0.25
1.927,2.24 2.427,2.49
0.5,0.25
3.313,2.219 3.813,2.469
0.5,0.25
6.104,2.365 6.604,2.615
0.5,0.25
1.771,0.573 2.198,0.802
0.427,0.229
10
false
G155
3.427,0.573 3.969,0.833
0.542,0.26
10
false
G156
5.167,0.563 5.698,0.802
0.531,0.24
10
false
G157
6.198,2.396 6.667,2.635
0.469,0.24
10
false
G154
3.406,2.271 4,2.5
0.594,0.229
10
false
G162
2.01,2.281 2.427,2.469
0.417,0.188
10
false
G161
0.677,2.344 0.958,2.521
0.281,0.177
10
false
RA
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
|
*1: w/o Stop and Start System *2: w/ Stop and Start System |
|||
| G155-1 (GND1) - Body ground | Ground | Always | Below 1 Ω |
| G155-4 (+B1) - G155-1 (GND1) | Power source (+B) | Ignition switch off | 11 to 14 V*1
10.5 to 16 V*2 |
| G155-5 (REV) - G155-1 (GND1) | Reverse signal | Ignition switch ON, shift lever not in R → in R | 2 V or less → 11 to 14 V |
| G155-7 (PKB) - G155-1 (GND1) | Parking brake signal | Ignition switch ON
Parking brake released → Ignition switch ON Parking brake applied |
3 V or higher → 2 V or less |
| G155-8 (SPD) - G155-1 (GND1) | Vehicle speed signal | Wheel being rotated | Waveform 1 |
| G155-15 (IG) - G155-1 (GND1) | Power source (IG) | Ignition switch ON | 11 to 14 V |
| G155-16 (ACC1) - G155-1 (GND1) | Power source (ACC) | Ignition switch ACC | 11 to 14 V |
| G155-18 (CSWA) - G155-1 (GND1) | Camera image transition signal | Normal → camera image screen change | 2 V or less → 6 V or higher |
| G155-20 (SWG) - G155-1 (GND1) | Ground | Always | Below 1 Ω |
| G155-21 (SW1) - G155-1 (GND1) | Steering pad switch signal | No switch pushed → Volume- switch pushed → Volume+ switch pushed → Seek- switch pushed → Seek+ switch pushed | 2.7 V or higher → approximately 2.3 V → approximately 1.6 V → approximately 1.0 V → 0.8 V or less |
| G155-22 (SW2) - G155-1 (GND1) | Steering pad switch signal | No switch pushed → Voice switch pushed → Off hook switch pushed → On hook switch pushed → MODE switch pushed | 2.7 V or higher → approximately 2.3 V → approximately 1.6 V → approximately 1.0 V → 0.8 V or less |
| G155-25 (ILL+) - G155-1 (GND1) | Illumination signal | Ignition switch ON, light control switch in tail or head position | 11 to 14 V |
| G156-5 (TMUT) - G155-1 (GND1) | Mute signal | Normal → Emergency call mode | 2.0 V or higher → Below 1 V |
| G156-11 (CNH1) | Local bus communication signal | Service Menu | - |
| G156-12 (CNL1) | Local bus communication signal | Service Menu | - |
| G156-13 (CANH) | CAN communication signal | Service Menu | - |
| G156-14 (CANL) | CAN communication signal | Service Menu | - |
| G156-15 (VOR+) - G155-1 (GND1) | Sound signal | Answering incoming operator call | A waveform synchronized with sound signals is output |
| G156-16 (VOR-) - G155-1 (GND1) | Sound signal | Answering incoming operator call | A waveform synchronized with sound signals is output |
| G156-17 (USBG) - Body ground | Ground | Always | Below 1 Ω |
| G156-18 (USBV) - G155-1 (GND1) | Telematics transceiver USB power source | Ignition switch ON | 3 V or higher |
| G156-21 (MIN+) - G155-1 (GND1) | Microphone voice signal | Voice is being input | A waveform synchronized with sound signals is output |
| G156-22 (MIN-) - G155-1 (GND1) | Microphone voice signal ground | Always | Below 1 Ω |
| G156-24 (SGND) - Body ground | Shield ground | Always | Below 1 Ω |
| G156-25 (SNS) - G155-1 (GND1) | Microphone circuit open detection signal | Always | Below 1 Ω |
| G156-28 (V+) - G156-29 (V-) | Video signal (analog) | Ignition switch ON, shift lever in R | Waveform 2 |
| G156-29 (V-) - G155-1 (GND1) | Video signal (analog) ground | Always | Below 1 Ω |
| G157-17 (MI2+) - G155-1 (GND1) | Microphone 2 voice signal | Voice is being input | A waveform synchronized with sound signals is output |
| G157-18 (MI2-) - G155-1 (GND1) | Microphone 2 voice signal ground | Always | Below 1 Ω |
| G157-19 (SGD2) - G155-1 (GND1) | Ground | Always | Below 1 Ω |
| G157-20 (MAC2) - G155-1 (GND1) | Microphone 2 power source | Ignition switch ON | 7.5 to 8.5 V |
| G157-21 (SNS2) - G155-1 (GND1) | Microphone 2 open circuit detection signal | Always | Below 1 Ω |
| G154-1 (FR+) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G154-2 (FL+) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G154-3 (RL+) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G154-4 (RR+) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G154-6 (FR-) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G154-7 (FL-) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G154-8 (RL-) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G154-9 (RR-) - G155-1 (GND1) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| G162-1 (USB+) | USB signal | - | - |
| G162-2 (USB-) | USB signal | - | - |
| G162-3 (USBS) | Shield ground | Always | Below 1 Ω |
| G161-1 (USV1) | Power source | Ignition switch ON | 4.75 to 5.25 V |
| G161-2 (US1-) | USB communication signal | - | - |
| G161-3 (US1+) | USB communication signal | - | - |
| G161-4 (UGD1) | Ground | Always | Below 1 Ω |
| G161-5 (USG1) | Shield ground | Always | Below 1 Ω |
| RA-1 (ANT+) | Radio antenna power source | Receiving radio broadcast | 7 to 16 V |
| RA-3 (MAIN) | Radio signal (MAIN) | - | - |
| RA-3a (GND) | Ground | - | - |
a.
2.823,1.188 3.406,1.552
0.583,0.365
10
false
GND
Waveform 1
| Item | Content |
|---|---|
| Measurement terminal | G155-8 (SPD) - G155-1 (GND1) |
| Measurement setting | 5 V/DIV, 20 ms/DIV. |
| Condition | Wheel being rotated |
- HINT:
-
The period changes depending on the rotation speed of the wheels.
b.
Waveform 2
1.083,1.219 1.302,1.594
1.302,1.594 1.479,1.594
false
0.99,1.26 0.781,1.594
0.781,1.594 0.604,1.594
false
5.052,1.094 5.292,1.594
5.292,1.594 5.469,1.594
false
4.938,1.156 4.76,1.594
4.76,1.594 4.583,1.594
false
0.073,0.031 0.25,0.208
0.177,0.177
10
*a
4.052,0.031 4.229,0.208
0.177,0.177
10
*b
1.5,1.531 1.698,1.708
0.198,0.177
10
*d
0.417,1.531 0.604,1.708
0.188,0.177
10
*c
5.49,1.531 5.688,1.708
0.198,0.177
10
*d
4.406,1.531 4.594,1.708
0.188,0.177
10
*c
0.188,0.802 0.667,1.094
0.479,0.292
10
GND
4.063,0.813 4.448,1.073
0.385,0.26
10
GND
| *a | Waveform A | *b | Waveform B |
| *c | Synchronization Signal | *d | Video Waveform |
| Item | Content |
|---|---|
| Measurement terminal | G156-28 (V+) - G156-29 (V-) |
| Measurement setting | 0.2 V/DIV, 50 μS/DIV |
| Condition | ·
Waveform A: Rear television camera assembly not covered, ignition switch ON, shift lever in R and image of the area behind the vehicle being displayed ·
Waveform B: Rear television camera assembly covered by hand etc., ignition switch ON, shift lever in R and black screen being displayed |
- NOTICE:
- ·
The video waveform changes according to the image sent by the rear television camera assembly.
·The video waveform is constantly output when the ignition switch is turned to ON.
